Schneider Electric LV847257

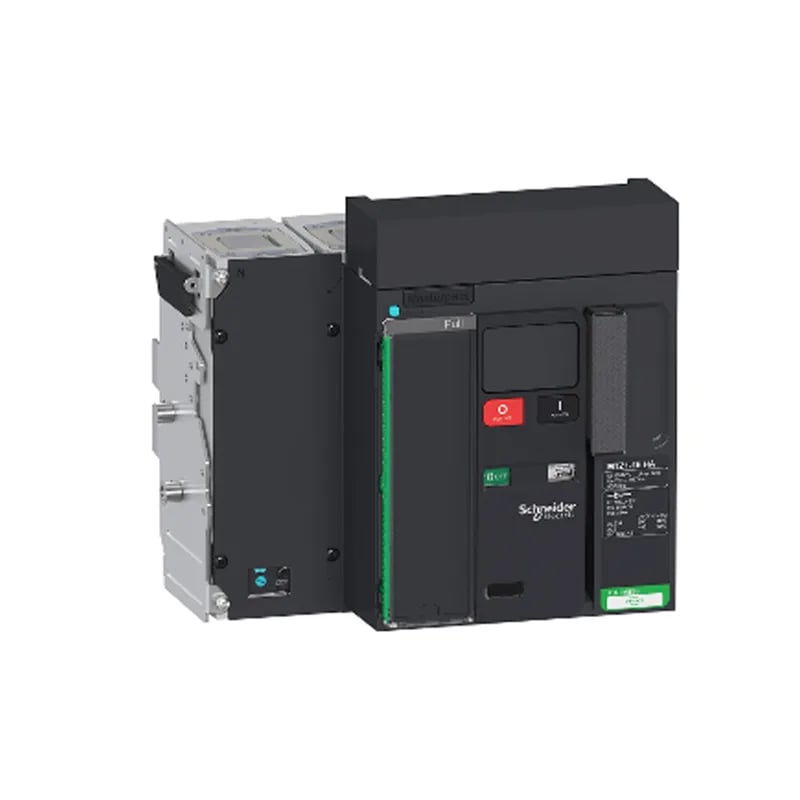

Schneider LV847257 Switch Disconnector Masterpact

MPNLV847257
Active

Switch Disconnector Masterpact

Schneider Electric LV847257 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

LV847257 key specifications
ParameterValue
Control typePush-button
Network typeAC
Product or component typeSwitch disconnector
Voltage1000 V AC 50/60 Hz EN/IEC 60947-3
[Ue] rated operational voltage690 V AC 50/60 Hz EN/IEC 60947-3
[Uimp] rated impulse withstand voltage12 kVEN/IEC 60947-3
[Icw] rated short-time withstand current20 kA 3 s EN/IEC 60947-3 36 kA 0.5 s EN/IEC 60947-3 36 kA 1 s
[Ie] rated operational current1600 A AC 50/60 Hz 690 V
[Icm] rated short-circuit making capacity75 kA peak 220...690 V AC 50/60 Hz
Network frequency50/60 Hz
Poles description4P
Utilisation categoryAC-23A AC-3

All specifications

LV847257 additional specifications
ParameterValue
IP degree of protectionIP30
Mounting modeDrawout
Mounting supportChassis
Connection pitch2.8 in (70 mm)
Upside connectionFront
Downside connectionFront
Switch-disconnector nameMasterPact MTZ1 16 HA
Pollution degree3 EN/IEC 60947-4-1
Depth11.5 in (291 mm)
Width14.09 in (358 mm)
Height12.7 in (322 mm)
Electrical durabilityAC-23A 6000 cycles 440 V AC 50/60 Hz EN/IEC 60947-3 AC-23A 3000 cycles 690 V AC 50/60 Hz EN/IEC 60947-3 AC-3 6000 cycles 440 V AC 50/60 Hz EN/IEC 60947-3
Mechanical durability12500 cycles with periodic preventive maintenance EN/IEC 60947-3
StandardsEN/IEC 60947-3
RangeMasterPact
Visible breakNo
Safety categoryHA
Device applicationDistribution
Suitability for isolationYes EN/IEC 60947-3
Contact position indicatorYes
Ambient air temperature for storage-40...185 °F (-40...85 °C)
Ambient air temperature for operation-13...158 °F (-25...70 °C)
MPN
LV847257
