Schneider Electric LV847383
MPNLV847383
Active

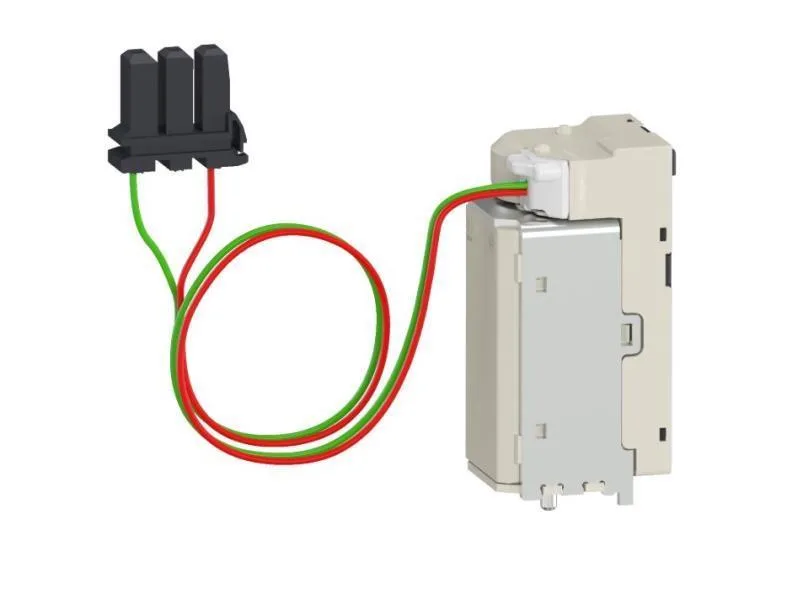

LV847383 - MN by SCHNEIDER ELECTRIC
$135.89Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Range | MasterPact |
| Control type | Standard |
| Device short name | MN |
| Device application | Safety |
| Voltage release type | Instantaneous |
| Maximum response time | 45 ms on opening MasterPact MTZ1 95 ms on opening MasterPact MTZ2 95 ms on opening MasterPact MTZ3 |
| Holding power consumption | 4.5 W |
| Product or component type | Undervoltage release |
| [Un] voltage power supply | 200...250 V AC 50/60 Hz 200...250 V DC |
| Threshold tripping voltage | 0.35...0.7 Un opening 0.85 Un closing |
| Circuit breaker mounting mode | Fixed |
MPN
LV847383
