Schneider Electric MGN61502

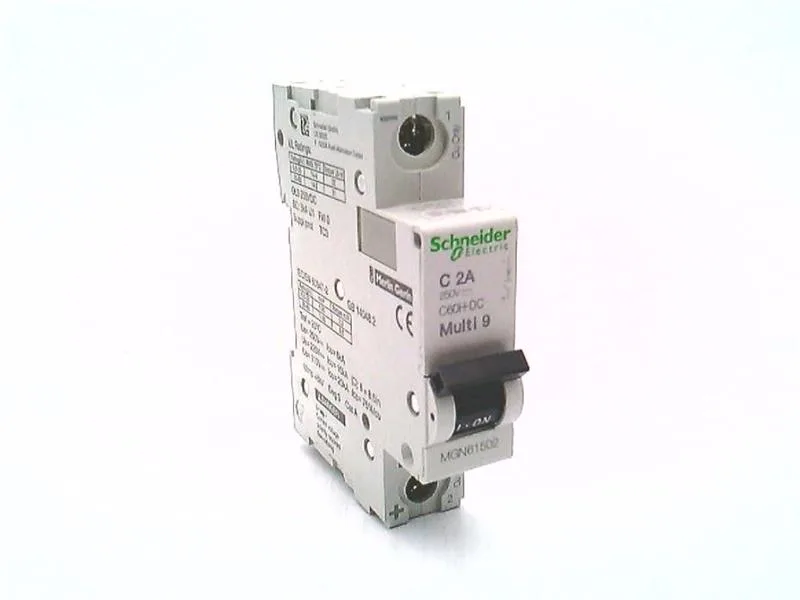

Schneider MGN61502 Multi9 C60H-DC 1-pole 2A DC breaker

MPNMGN61502
Obsolete

Schneider MGN61502 Din Rail Mount Circuit Breakers — now discontinued, supplied from remaining surplus and broker stock.

$176.58Ref. price · indicative, final on quote
Schneider Electric MGN61502 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

MGN61502 key specifications
ParameterValue
Control typeToggle
Network typeDC
Product or component typeMiniature circuit-breaker
Voltage500 V DC EN/IEC 60947-2
[Ue] rated operational voltage12...250 V DC
[Uimp] rated impulse withstand voltage6 kVEN/IEC 60947-2
Breaking capacity10 kA Icu 220 V DC GB 14048.2 6 kA Icu 250 V DC GB 14048.2 20 kA Icu 110 V DC GB 14048.2 20 kA Icu 110 V DC EN/IEC 60947-2 10 kA Icu 220 V DC EN/IEC 60947-2 6 kA Icu 250 V DC EN/IEC 60947-2 5 kA AIR 12...250 V DC UL 1077
Line rated current2 A 77 °F (25 °C)
[Ics] rated service breaking capacity15 kA 75 % GB 14048.2 - 110 V DC 15 kA 75 % EN/IEC 60947-2 - 110 V DC 7.5 kA 75 % EN/IEC 60947-2 - 250 V DC 4.5 kA 75 % EN/IEC 60947-2 - 220 V DC 7.5 kA 75 % GB 14048.2 - 250 V DC 4.5 kA 75 % GB 14048.2 - 220 V DC
Poles description1P
Number of protected poles1
Utilisation categoryCategory A EN/IEC 60947-2

All specifications

MGN61502 additional specifications
ParameterValue
IP degree of protectionIP20 conforming to IEC 60529 IP40 (modular enclosure) conforming to IEC 60529
Mounting modeClip-on
Mounting supportDIN rail
Wire stripping length0.6 in (14 mm) for top or bottom connection
Connections - terminalsTunnel type terminal top or bottom) 0.002...0.04 in² (1...25 mm²) AWG 18...AWG 4) - rigid stranded Tunnel type terminal top or bottom) 0.002...0.02 in² (1...16 mm²) AWG 18...AWG 6) - flexible Tunnel type terminal top or bottom) 0.002...0.02 in² (1...16 mm²) AWG 18...AWG 6) - flexible with ferrule Tunnel type terminal top or bottom) - 2 0.002...0.02 in² (1...10 mm²) AWG 18...AWG 8) - rigid stranded Tunnel type terminal top or bottom) - 2 0.002...0.02 in² (1...10 mm²) AWG 18...AWG 8) - flexible Tunnel type terminal top or bottom) - 2 0.002...0.02 in² (1...10 mm²) AWG 18...AWG 8) - flexible with ferrule Tunnel type terminal top or bottom) - 3 0.002 in² (1 mm²) AWG 18) - flexible stranded
Pollution degree3 EN/IEC 60947-2
Relative humidity95 % 131 °F (55 °C)
Operating altitude6561.68 ft (2000 m)
ColorGray
Depth2.9 in (73 mm)
Width0.7 in (18 mm)
Height3.2 in (81 mm)
Electrical durability3000 cycles L/R = 2 ms
Mechanical durability20000 cycles
StandardsUL 1077 GB 14048.2 EN/IEC 60947-2
RangeMulti9
CategoryUS10DE200915
Curve codeC
9 mm pitches2
Tropicalisation2 IEC 60068-2 2 GB 14048.2
Limitation class3 EN/IEC 60947-2
Local signallingON/OFF indication
Device short nameC60H-DC
Tightening torque22.1 lbf.in (2.5 N.m) top or bottom
Device applicationDistribution
Overvoltage categoryIV
Trip unit technologyThermal-magnetic
Magnetic tripping limit8.5 x In +/- 20 % AC
Earth-leakage protectionWithout
Provision for padlockingPadlockable
Suitability for isolationYes EN/IEC 60947-2
Contact position indicatorYes
Locking options descriptionIn position O
Ambient air temperature for storage-40...185 °F (-40...85 °C)
Ambient air temperature for operation-13...158 °F (-25...70 °C)
Comb busbar and distribution block compatibilityTop or bottom standard

Product details

Overview

The MGN61502 is a 1-pole DC circuit breaker from the Schneider Multi9 C60H-DC range, rated 2 A at 250 V DC with a 10 kA breaking capacity and curve C thermal-magnetic trip. It mounts on DIN rail and carries UL 1077, GB 14048.2, and EN/IEC 60947-2 certifications.

Selection vs M9F11203

Compared to the M9F11203, the MGN61502 is a 1-pole breaker at 2 A and 10 kA, while the M9F11203 offers 2 poles, 3 A, and 20 kA. Choose the MGN61502 for single-pole DC branch circuits at lower current; the M9F11203 suits higher-current two-pole applications with greater fault current capacity.
