Schneider Electric MGN61505

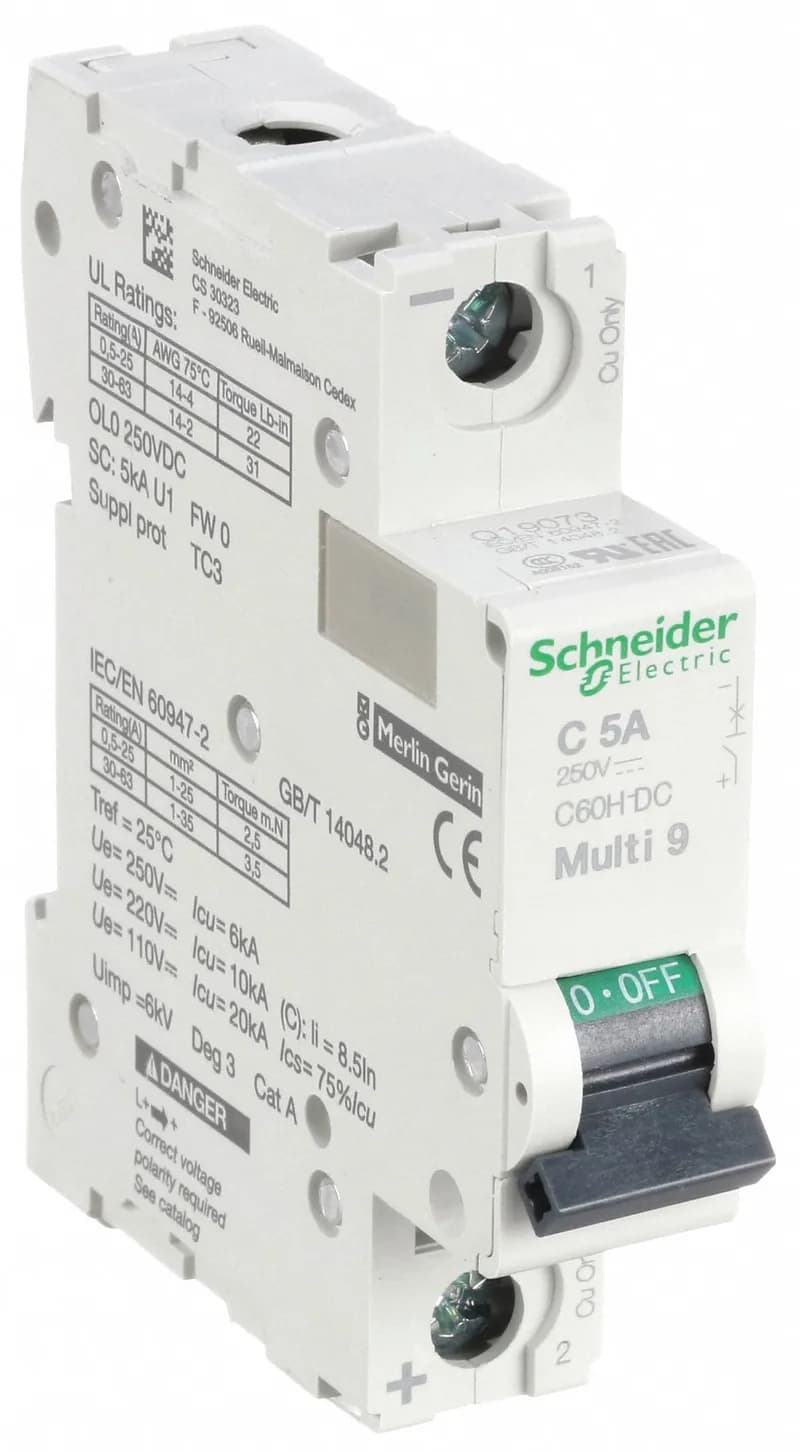

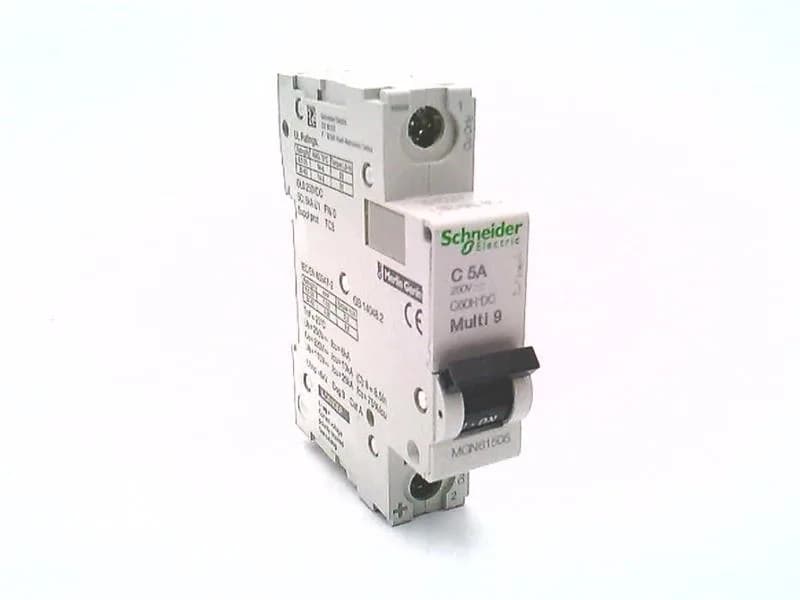

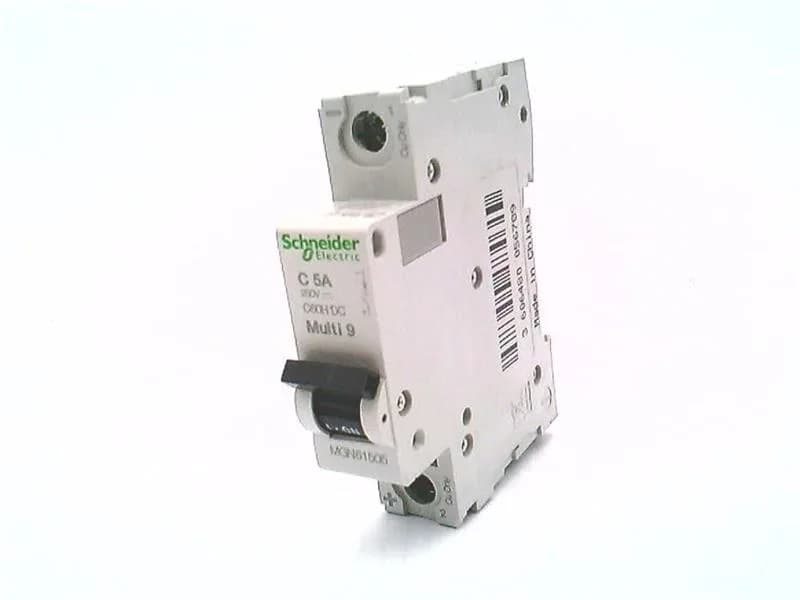

MGN61505 Schneider Multi9 C60H-DC, 5A 1-Pole DC MCB

MPNMGN61505
Active

Schneider Electric Multi9 C60H-DC, MGN61505, 1-pole DC miniature circuit breaker, 5 A, C-curve, 10 kA breaking at 220 V DC.

$11.43Ref. price · indicative, final on quote
Schneider Electric MGN61505 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

MGN61505 key specifications
ParameterValue
Control typeToggle
Network typeDC
Product or component typeMiniature circuit-breaker
Voltage500 V DC EN/IEC 60947-2
[Ue] rated operational voltage12...250 V DC
[Uimp] rated impulse withstand voltage6 kVEN/IEC 60947-2
Breaking capacity10 kA Icu 220 V DC GB 14048.2 6 kA Icu 250 V DC GB 14048.2 20 kA Icu 110 V DC GB 14048.2 20 kA Icu 110 V DC EN/IEC 60947-2 10 kA Icu 220 V DC EN/IEC 60947-2 6 kA Icu 250 V DC EN/IEC 60947-2 5 kA AIR 12...250 V DC UL 1077
Line rated current5 A 77 °F (25 °C)
[Ics] rated service breaking capacity15 kA 75 % GB 14048.2 - 110 V DC 15 kA 75 % EN/IEC 60947-2 - 110 V DC 7.5 kA 75 % EN/IEC 60947-2 - 250 V DC 4.5 kA 75 % EN/IEC 60947-2 - 220 V DC 7.5 kA 75 % GB 14048.2 - 250 V DC 4.5 kA 75 % GB 14048.2 - 220 V DC
Poles description1P
Number of protected poles1
Utilisation categoryCategory A EN/IEC 60947-2

All specifications

MGN61505 additional specifications
ParameterValue
IP degree of protectionIP20 conforming to IEC 60529 IP40 (modular enclosure) conforming to IEC 60529
Mounting modeClip-on
Mounting supportDIN rail
Wire stripping length0.6 in (14 mm) for top or bottom connection
Connections - terminalsTunnel type terminal top or bottom) 0.002...0.04 in² (1...25 mm²) AWG 18...AWG 4) - rigid stranded Tunnel type terminal top or bottom) 0.002...0.02 in² (1...16 mm²) AWG 18...AWG 6) - flexible Tunnel type terminal top or bottom) 0.002...0.02 in² (1...16 mm²) AWG 18...AWG 6) - flexible with ferrule Tunnel type terminal top or bottom) - 2 0.002...0.02 in² (1...10 mm²) AWG 18...AWG 8) - rigid stranded Tunnel type terminal top or bottom) - 2 0.002...0.02 in² (1...10 mm²) AWG 18...AWG 8) - flexible Tunnel type terminal top or bottom) - 2 0.002...0.02 in² (1...10 mm²) AWG 18...AWG 8) - flexible with ferrule Tunnel type terminal top or bottom) - 3 0.002 in² (1 mm²) AWG 18) - flexible stranded
Pollution degree3 EN/IEC 60947-2
Relative humidity95 % 131 °F (55 °C)
Operating altitude6561.68 ft (2000 m)
ColorGray
Depth2.9 in (73 mm)
Width0.7 in (18 mm)
Height3.2 in (81 mm)
Electrical durability3000 cycles L/R = 2 ms
Mechanical durability20000 cycles
StandardsUL 1077 GB 14048.2 EN/IEC 60947-2
RangeMulti9
CategoryUS10DE200915
Curve codeC
9 mm pitches2
Tropicalisation2 IEC 60068-2 2 GB 14048.2
Limitation class3 EN/IEC 60947-2
Local signallingON/OFF indication
Device short nameC60H-DC
Tightening torque22.1 lbf.in (2.5 N.m) top or bottom
Device applicationDistribution
Overvoltage categoryIV
Trip unit technologyThermal-magnetic
Magnetic tripping limit8.5 x In +/- 20 % AC
Earth-leakage protectionWithout
Provision for padlockingPadlockable
Suitability for isolationYes EN/IEC 60947-2
Contact position indicatorYes
Locking options descriptionIn position O
Ambient air temperature for storage-40...185 °F (-40...85 °C)
Ambient air temperature for operation-13...158 °F (-25...70 °C)
Comb busbar and distribution block compatibilityTop or bottom standard

Product details

One-pole DC breaker for distribution panels

The Schneider Electric MGN61505 is a 1-pole Multi9 C60H-DC DC miniature circuit breaker rated 5 A with a C-curve, delivering 20 kA breaking capacity at 110 V DC, 10 kA at 220 V DC, and 6 kA at 250 V DC. Thermal-magnetic trip unit provides overcurrent and short-circuit protection for DC circuits; rated for distribution applications per EN/IEC 60947-2 category A. Certified to UL 1077 (supplemental protection) and IEC 60947-2, plus GB 14048.2 for Chinese markets. Pollution degree 3 and IP20 finger-safe terminals.

DIN rail mounting and wiring

Clip-on mounting to DIN rail, occupies one 18 mm module width. Height 81 mm, depth 73 mm — fits standard distribution panels. Padlockable toggle for lockout/tagout. Indoor only; operating altitude 2000 m, relative humidity 95% at 55 °C. Tropicalisation treatment per IEC 60068-2.

Active lifecycle, standard sourcing

Overvoltage category IV, pollution degree 3, and limitation class 3 per IEC 60947-2 — suitable for mains distribution with full coordination capability.

Frequently asked questions

What color is MGN61505?

The housing is gray.

What is the depth of MGN61505?

Depth is 2.9 inches (73 mm).

What safety and compliance standards does MGN61505 meet?

It is certified to UL 1077, EN/IEC 60947-2, and GB 14048.2.
