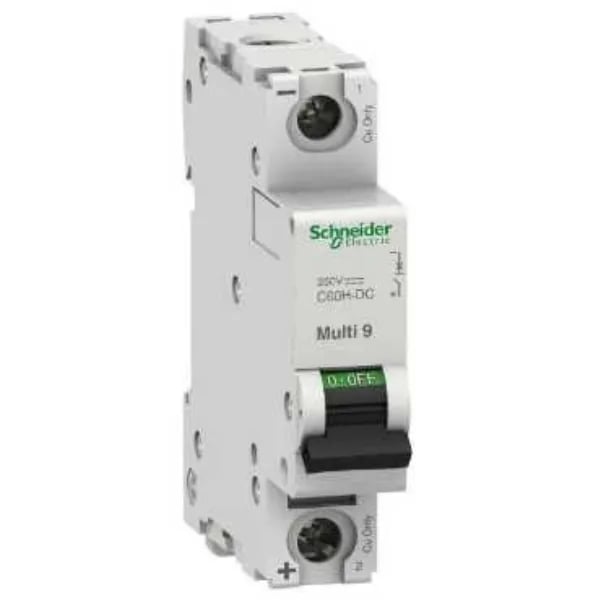

Schneider MGN61510 Multi9 C60H-DC MCCB, 1-pole, 15 A, 10 kA

MPNMGN61510
Active

Schneider MGN61510 Molded Case Circuit Breakers — now discontinued, supplied from remaining surplus and broker stock.

$10.67Ref. price · indicative, final on quote
Schneider Electric MGN61510 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

MGN61510 key specifications
ParameterValue
Control typeToggle
Network typeDC
Product or component typeMiniature circuit-breaker
Voltage500 V DC EN/IEC 60947-2
[Ue] rated operational voltage12...250 V DC
[Uimp] rated impulse withstand voltage6 kVEN/IEC 60947-2
Breaking capacity10 kA Icu 220 V DC GB 14048.2 6 kA Icu 250 V DC GB 14048.2 20 kA Icu 110 V DC GB 14048.2 20 kA Icu 110 V DC EN/IEC 60947-2 10 kA Icu 220 V DC EN/IEC 60947-2 6 kA Icu 250 V DC EN/IEC 60947-2 5 kA AIR 12...250 V DC UL 1077
Line rated current15 A 77 °F (25 °C)
[Ics] rated service breaking capacity15 kA 75 % GB 14048.2 - 110 V DC 15 kA 75 % EN/IEC 60947-2 - 110 V DC 7.5 kA 75 % EN/IEC 60947-2 - 250 V DC 4.5 kA 75 % EN/IEC 60947-2 - 220 V DC 7.5 kA 75 % GB 14048.2 - 250 V DC 4.5 kA 75 % GB 14048.2 - 220 V DC
Poles description1P
Number of protected poles1
Utilisation categoryCategory A EN/IEC 60947-2

All specifications

MGN61510 additional specifications
ParameterValue
IP degree of protectionIP20 conforming to IEC 60529 IP40 (modular enclosure) conforming to IEC 60529
Mounting modeClip-on
Mounting supportDIN rail
Wire stripping length0.6 in (14 mm) for top or bottom connection
Connections - terminalsTunnel type terminal top or bottom) 0.002...0.04 in² (1...25 mm²) AWG 18...AWG 4) - rigid stranded Tunnel type terminal top or bottom) 0.002...0.02 in² (1...16 mm²) AWG 18...AWG 6) - flexible Tunnel type terminal top or bottom) 0.002...0.02 in² (1...16 mm²) AWG 18...AWG 6) - flexible with ferrule Tunnel type terminal top or bottom) - 2 0.002...0.02 in² (1...10 mm²) AWG 18...AWG 8) - rigid stranded Tunnel type terminal top or bottom) - 2 0.002...0.02 in² (1...10 mm²) AWG 18...AWG 8) - flexible Tunnel type terminal top or bottom) - 2 0.002...0.02 in² (1...10 mm²) AWG 18...AWG 8) - flexible with ferrule Tunnel type terminal top or bottom) - 3 0.002 in² (1 mm²) AWG 18) - flexible stranded
Pollution degree3 EN/IEC 60947-2
Relative humidity95 % 131 °F (55 °C)
Operating altitude6561.68 ft (2000 m)
ColorGray
Depth2.9 in (73 mm)
Width0.7 in (18 mm)
Height3.2 in (81 mm)
Electrical durability3000 cycles L/R = 2 ms
Mechanical durability20000 cycles
StandardsUL 1077 GB 14048.2 EN/IEC 60947-2
RangeMulti9
CategoryUS10DE200915
Curve codeC
9 mm pitches2
Tropicalisation2 IEC 60068-2 2 GB 14048.2
Limitation class3 EN/IEC 60947-2
Local signallingON/OFF indication
Device short nameC60H-DC
Tightening torque22.1 lbf.in (2.5 N.m) top or bottom
Device applicationDistribution
Overvoltage categoryIV
Trip unit technologyThermal-magnetic
Magnetic tripping limit8.5 x In +/- 20 % AC
Earth-leakage protectionWithout
Provision for padlockingPadlockable
Suitability for isolationYes EN/IEC 60947-2
Contact position indicatorYes
Locking options descriptionIn position O
Ambient air temperature for storage-40...185 °F (-40...85 °C)
Ambient air temperature for operation-13...158 °F (-25...70 °C)
Comb busbar and distribution block compatibilityTop or bottom standard

Product details

Overview

The MGN61510 is a 1-pole Multi9 C60H-DC molded case circuit breaker from Schneider, rated for 15 A switching current with a 10 kA breaking capacity at 250 V DC. It uses a thermal-magnetic trip unit with a C curve (7 to 14 x rated current) and carries UL 1077, CE, and IEC 60947-2 certifications. The compact frame measures 17.78 mm wide, 73.66 mm deep, and 81.28 mm high, fitting a single DIN module. It clips onto the rail and uses tunnel terminals with a torque spec of 2.5 N.m top or bottom.

Sizing and comparison

Compared to the 2-pole MGN61525, the MGN61510 halves the pole count and delivers a 10.0 kA breaking capacity versus 20.0 kA, with a 250 V DC supply voltage versus 500 V DC. Pick the MGN61510 for single-pole DC circuits at lower fault current levels; choose the MGN61525 when the BOM requires two poles and higher interrupting capacity.
