Schneider Electric MGN61530

MGN61530 Multi9 C60H-DC 15A C Curve 2P DC MCB

MPNMGN61530
Obsolete

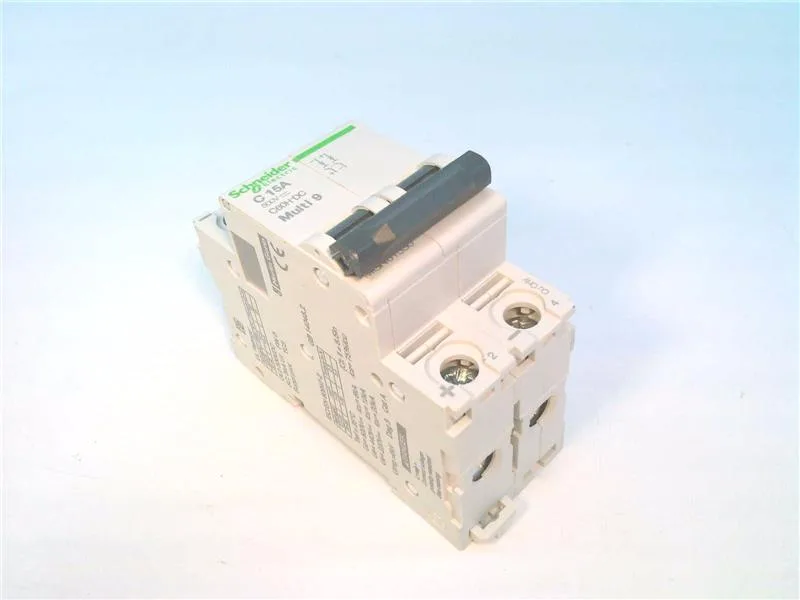

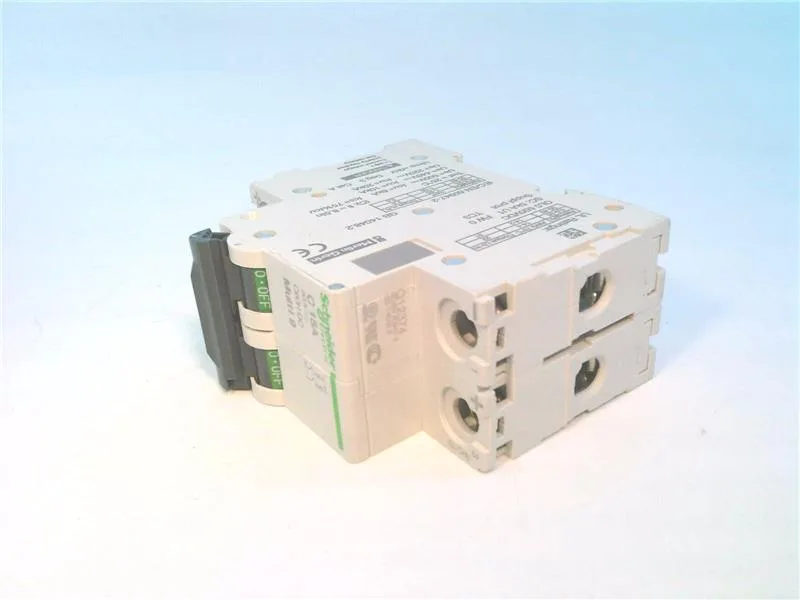

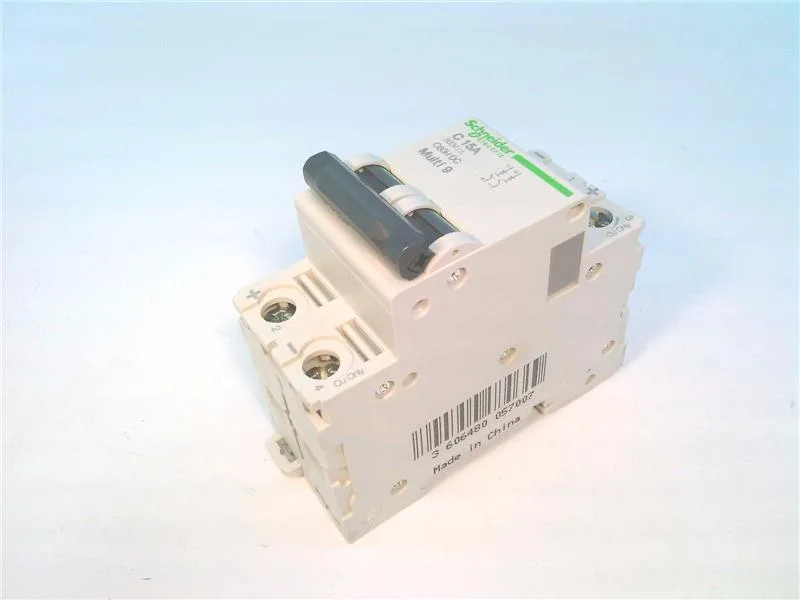

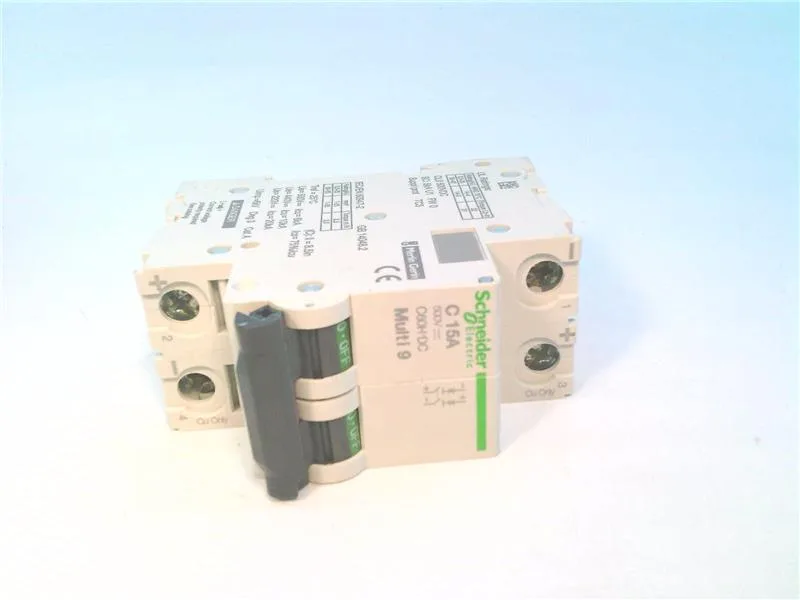

Schneider Electric Multi9 C60H-DC series, MGN61530, 2-pole DC MCB, 15 A, C curve, 20 kA breaking capacity at 220 V DC, thermal-magnetic trip, gray.

$274.05Ref. price · indicative, final on quote
Schneider Electric MGN61530 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

MGN61530 key specifications
ParameterValue
Control typeToggle
Network typeDC
Product or component typeMiniature circuit-breaker
Voltage500 V DC EN/IEC 60947-2
[Ue] rated operational voltage12...500 V DC
[Uimp] rated impulse withstand voltage6 kVEN/IEC 60947-2
Breaking capacity20 kA Icu 220 V DC GB 14048.2 10 kA Icu 440 V DC GB 14048.2 6 kA Icu 500 V DC GB 14048.2 20 kA Icu 220 V DC EN/IEC 60947-2 10 kA Icu 440 V DC EN/IEC 60947-2 6 kA Icu 500 V DC EN/IEC 60947-2 5 kA AIR 12...500 V DC UL 1077
Line rated current15 A 77 °F (25 °C)
[Ics] rated service breaking capacity4.5 kA 75 % GB 14048.2 - 500 V DC 7.5 kA 75 % GB 14048.2 - 440 V DC 15 kA 75 % GB 14048.2 - 220 V DC 15 kA 75 % EN/IEC 60947-2 - 220 V DC 7.5 kA 75 % EN/IEC 60947-2 - 440 V DC 4.5 kA 75 % EN/IEC 60947-2 - 500 V DC
Poles description2P
Number of protected poles2
Utilisation categoryCategory A EN/IEC 60947-2

All specifications

MGN61530 additional specifications
ParameterValue
IP degree of protectionIP20 conforming to IEC 60529 IP40 (modular enclosure) conforming to IEC 60529
Mounting modeClip-on
Mounting supportDIN rail
Wire stripping length0.6 in (14 mm) for top or bottom connection
Connections - terminalsTunnel type terminal top or bottom) 0.002...0.04 in² (1...25 mm²) AWG 18...AWG 4) - rigid stranded Tunnel type terminal top or bottom) 0.002...0.02 in² (1...16 mm²) AWG 18...AWG 6) - flexible Tunnel type terminal top or bottom) 0.002...0.02 in² (1...16 mm²) AWG 18...AWG 6) - flexible with ferrule Tunnel type terminal top or bottom) - 2 0.002...0.02 in² (1...10 mm²) AWG 18...AWG 8) - rigid stranded Tunnel type terminal top or bottom) - 2 0.002...0.02 in² (1...10 mm²) AWG 18...AWG 8) - flexible Tunnel type terminal top or bottom) - 2 0.002...0.02 in² (1...10 mm²) AWG 18...AWG 8) - flexible with ferrule Tunnel type terminal top or bottom) - 3 0.002 in² (1 mm²) AWG 18) - flexible stranded
Pollution degree3 EN/IEC 60947-2
Relative humidity95 % 131 °F (55 °C)
Operating altitude6561.68 ft (2000 m)
ColorGray
Depth2.9 in (73 mm)
Width1.4 in (36 mm)
Height3.2 in (81 mm)
Electrical durability3000 cycles L/R = 2 ms
Mechanical durability20000 cycles
StandardsUL 1077 GB 14048.2 EN/IEC 60947-2
RangeMulti9
CategoryUS10DE200915
Curve codeC
9 mm pitches4
Tropicalisation2 IEC 60068-2 2 GB 14048.2
Limitation class3 EN/IEC 60947-2
Local signallingON/OFF indication
Device short nameC60H-DC
Tightening torque22.1 lbf.in (2.5 N.m) top or bottom
Device applicationDistribution
Overvoltage categoryIV
Trip unit technologyThermal-magnetic
Magnetic tripping limit8.5 x In +/- 20 % AC
Earth-leakage protectionWithout
Provision for padlockingPadlockable
Suitability for isolationYes EN/IEC 60947-2
Contact position indicatorYes
Locking options descriptionIn position O
Ambient air temperature for storage-40...185 °F (-40...85 °C)
Ambient air temperature for operation-13...158 °F (-25...70 °C)
Comb busbar and distribution block compatibilityTop or bottom standard

Product details

Standards and construction

The MGN61530: The breaker is listed under UL 1077, IEC 60947-2, and GB 14048.2, with pollution degree 3 and overvoltage category IV. It is thermal-magnetic with a magnetic trip threshold of 8.5 x In (±20%). Housing is IP20 (modular enclosure IP40), clip-on DIN rail mount, gray.

Design for DC distribution circuits—PV arrays, battery banks, DC bus bars in control panels. The C curve handles moderate inrush (lighting, small DC motors). Unit depth is 73 mm (2.9 in), width 36 mm (1.4 in), fitting standard DIN-rail enclosures.

Frequently asked questions

What are the key electrical ratings?

It is a 15 A, 2-pole DC MCB with C curve, and a breaking capacity of 20 kA at 220 V DC, 10 kA at 440 V DC, and 6 kA at 500 V DC per IEC 60947-2.

What standards does it comply with?

It complies with UL 1077, IEC 60947-2, and GB 14048.2.

What are the physical dimensions and color?

Color is gray, depth is 2.9 in (73 mm), width 1.4 in (36 mm), height 3.2 in (81 mm). It mounts on a DIN rail with a clip-on mechanism.
