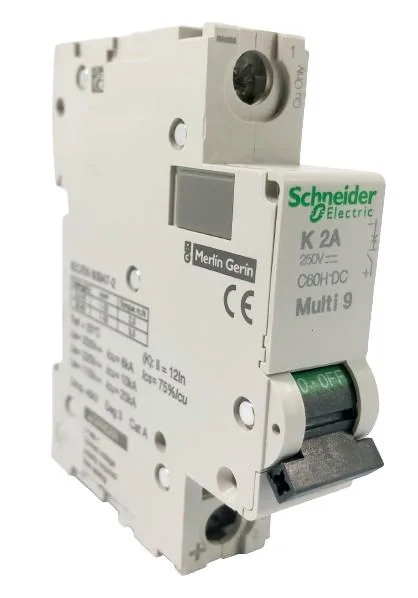

MGN61859 - MINIATURE CIRCUIT BREAKER by MERLIN GERIN
$89.15Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Control type | Toggle |
| Network type | DC |
| Product or component type | Miniature circuit-breaker |
| Voltage | 500 V DC conforming to EN/IEC 60947-2 |
| [Ue] rated operational voltage | 250 V DC 110 V DC 220 V DC |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to EN/IEC 60947-2 |
| Breaking capacity | 20 kA Icu at 110 V DC conforming to EN/IEC 60947-2 10 kA Icu at 220 V DC conforming to EN/IEC 60947-2 6 kA Icu at 250 V DC conforming to EN/IEC 60947-2 |
| Current | 2 A at 50 °C conforming to EN/IEC 60947-2 |
| [Ics] rated service breaking capacity | 15 kA 75 % conforming to EN/IEC 60947-2 - 110 V DC 7.5 kA 75 % conforming to EN/IEC 60947-2 - 220 V DC 4.5 kA 75 % conforming to EN/IEC 60947-2 - 250 V DC |
| Poles description | 1P |
| Number of protected poles | 1 |
| Utilisation category | Category A conforming to EN/IEC 60947-2 |
All specifications
| Parameter | Value |
|---|---|
| IP degree of protection | IP20 conforming to IEC 60529 IP40 (modular enclosure) conforming to IEC 60529 |
| Mounting mode | Clip-on |
| Mounting support | DIN rail |
| Wire stripping length | 14 mm for top or bottom connection |
| Connections - terminals | Tunnel type terminal (top or bottom)1...25 mm² (AWG 18...AWG 4) - rigid stranded Tunnel type terminal (top or bottom)1...16 mm² (AWG 18...AWG 6) - flexible Tunnel type terminal (top or bottom)1...16 mm² (AWG 18...AWG 6) - flexible with ferrule Tunnel type terminal (top or bottom) - 2 cable(s) 1...10 mm² (AWG 18...AWG 8) - rigid stranded Tunnel type terminal (top or bottom) - 2 cable(s) 1...10 mm² (AWG 18...AWG 8) - flexible Tunnel type terminal (top or bottom) - 2 cable(s) 1...10 mm² (AWG 18...AWG 8) - flexible with ferrule Tunnel type terminal (top or bottom) - 3 cable(s) 1 mm² (AWG 18) - flexible stranded |
| Pollution degree | 3 conforming to EN 60947-2 |
| Relative humidity | 95 % at 55 °C |
| Depth | 73 mm |
| Width | 18 mm |
| Color | Grey |
| Height | 81 mm |
| Electrical durability | 3000 cycles L/R = 2 ms |
| Mechanical durability | 20000 cycles |
| Standards | EN/IEC 60947-2 |
| Range | Multi9 |
| Curve code | K |
| 9 mm pitches | 2 |
| Tropicalisation | 2 conforming to IEC 60068-2 |
| Local signalling | ON/OFF indication |
| Device short name | C60H-DC |
| Tightening torque | 2.5 N.m top or bottom |
| Device application | Distribution |
| Trip unit technology | Thermal-magnetic |
| Magnetic tripping limit | 12 x In +/- 20 % DC |
| Earth-leakage protection | Without |
| Provision for padlocking | Padlockable |
| Suitability for isolation | Yes conforming to EN/IEC 60947-2 |
| Contact position indicator | Yes |
| Ambient air temperature for storage | -40...85 °C |
| Ambient air temperature for operation | -25...70 °C |
