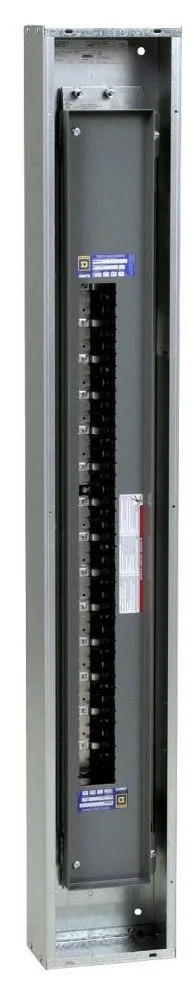

Schneider Electric NQ8442L2C
MPNNQ8442L2C
Active
NQCW 3P4W MLO 42 CKT 225A|NQCW 3P4W MLO 42 CKT 225A
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Panelboard type | Main lugs |
| Branch circuit breaker type | QOB QOB-VH QHB |
| Voltage rating | 240 V AC 48 V DC |
| Line rated current | 225 A |
| [Iu] rated interrupted current | 10 kA 22 kA 65 kA |
| Phases | 3 phase 4 wires |
| Enclosure nominal depth | 5 in (127 mm) NEMA 1 |
| Enclosure nominal width | 8.625 in (219.075 mm) |
| Enclosure nominal height | 58 in (1473.2 mm) |
| Connections - terminals | Lug line AWG 6...300 kcmil aluminium/copper Lug neutral AWG 6...300 kcmil aluminium/copper |
| Busbar material | Copper |
| Standards | UL CSA |
| Category | US1PE1A00013 |
| Number of spaces | 42 |
| Tightening torque | 40.005...50.007 lbf.in (4.52...5.65 N.m) 0.02...0.10 in² (13.30...67.43 mm²) (AWG 6...AWG 2/0) 100 lbf.in (11.3 N.m) 0.02...0.10 in² (13.30...67.43 mm²) (AWG 6...AWG 2/0) 274.99 lbf.in (31.07 N.m) 0.02...0.3 in² (13.30...177.3 mm²) (AWG 6...350 kcmil) 274.99 lbf.in (31.07 N.m) 0.02...0.2 in² (13.30...126.7 mm²) (AWG 6...250 kcmil) 274.99 lbf.in (31.07 N.m) 0.2...0.2 in² (107.2...152 mm²) (AWG 4...300 kcmil) |
MPN
NQ8442L2C
