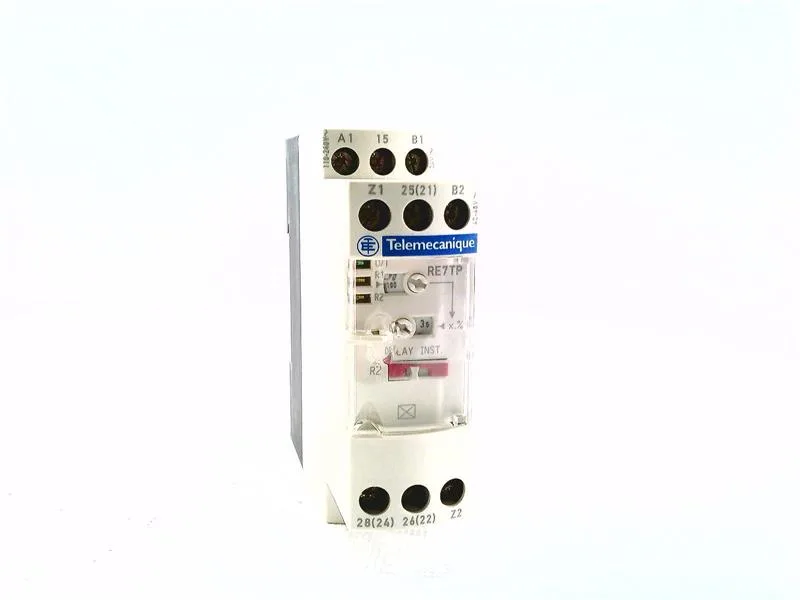

Schneider Electric RE7TP13BU
MPNRE7TP13BU
Active
TIMER 300V 5AMP RE7|SQD RE7TP13BU TIMER 300V 5AMP RE7
$243.38Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Time delay type | A |
| Range of product | Zelio Time |
| Discrete output type | Relay |
| Product or component type | Industrial timing relay |
| Contacts type and composition | 2 C/O |
| Voltage drift | < 0.2 %/V |
| Voltage range | 0.85...1.1 Us |
| Surge withstand | 2 kV IEC 61000-4-5 level 3 |
| Maximum switching voltage | 250 V AC/DC |
| Supply voltage | 110...240 V AC 50/60 Hz 24 V AC/DC 50/60 Hz 42...48 V AC/DC 50/60 Hz |
| Voltage | 250 V between contact circuit and control inputs IEC 250 V between contact circuit and power supply IEC 300 V between contact circuit and control inputs CSA 300 V between contact circuit and power supply CSA |
| Maximum [Ie] rated operational current | 2 A DC-13 24 V 158 °F (70 °C) IEC 60947-5-1/1991/VDE 0660 0.1 A DC-13 250 V 158 °F (70 °C) IEC 60947-5-1/1991/VDE 0660 0.2 A DC-13 115 V 158 °F (70 °C) IEC 60947-5-1/1991/VDE 0660 3 A AC-15 158 °F (70 °C) IEC 60947-5-1/1991/VDE 0660 |
All specifications
| Parameter | Value |
|---|---|
| [Ith] conventional free air thermal current | 8 A |
| Power consumption in | 2 VA 48 V 1.2 VA 24 V 12.5 VA 240 V 2.8 VA 110 V |
| Maximum power consumption in | 0.8 W 24 V 1.6 W 48 V |
| IP degree of protection | IP20 terminals) IP50 housing) |
| Terminal description | (B1-A2)CO (Z2)UNUSED (15-16-18)OC_OFF (Z1)UNUSED ALT (25-26-28)OC_ON |
| Connections - terminals | Screw terminals, 2 x 1.5 mm² flexible with cable end Screw terminals, 2 x 2.5 mm² flexible without cable end |
| Pollution degree | 3 IEC 60664-1 |
| Shock resistance | 15 gn 11 ms IEC 60068-2-27 |
| Relative humidity | 15...85 % 3K3 IEC 60721-3-3 |
| Vibration resistance | 0.35 mm (f= 10...55 Hz) conforming to IEC 60068-2-6 |
| Non-dissipating shock wave | 4.8 kV |
| Depth | 3.1 in (80 mm) |
| Width | 0.9 in (22.5 mm) |
| Height | 3.07 in (78 mm) |
| Contacts material | 90/10 silver nickel contacts |
| Width pitch dimension | 0.9 in (22.5 mm) |
| Mechanical durability | 20000000 cycles |
| Standards | EN/IEC 61812-1 |
| Marking | CE |
| Category | 22376-RELAYS-MEASUREMENT(RM4) |
| Reset time | 50 ms |
| Component name | RE7 |
| Repeat accuracy | +/- 0.2 % |
| Time delay range | 0.05 s...300 h |
| Temperature drift | < 0.07 %/°C |
| Tightening torque | 5.3...9.7 lbf.in (0.6...1.1 N.m) |
| Operating position | Any position without derating |
| Dielectric strength | 2.5 kV |
| Overvoltage category | III conforming to IEC 60664-1 |
| Minimum pulse duration | 20 ms |
| Immunity to microbreaks | 3 ms |
| Minimum switching capacity | 10 mA 12 V |
| Supply disconnection value | > 0.1 Uc |
| Potentiometer characteristic | Linear 47 kOhm +/- 20 %), 0.2 W 82.02 ft (25 m) Z1Z2 |
| Resistance to fast transients | 2 kV IEC 61000-4-4 level 3 |
| Disturbance radiated (conducted) | CISPR 11 group 1 - class A CISPR 22 - class A |
| Setting accuracy of time delay | +/- 10 % of full scale |
| Ambient air temperature for storage | -40...185 °F (-40...85 °C) |
| Resistance to electromagnetic fields | 9.1 V/m (10 V/m) IEC 61000-4-3 level 3 |
| Ambient air temperature for operation | -4...140 °F (-20...60 °C) |
| Resistance to electrostatic discharge | 6 kV in contact IEC 61000-4-2 level 3 8 kV in air IEC 61000-4-2 level 3 |
MPN
RE7TP13BU
