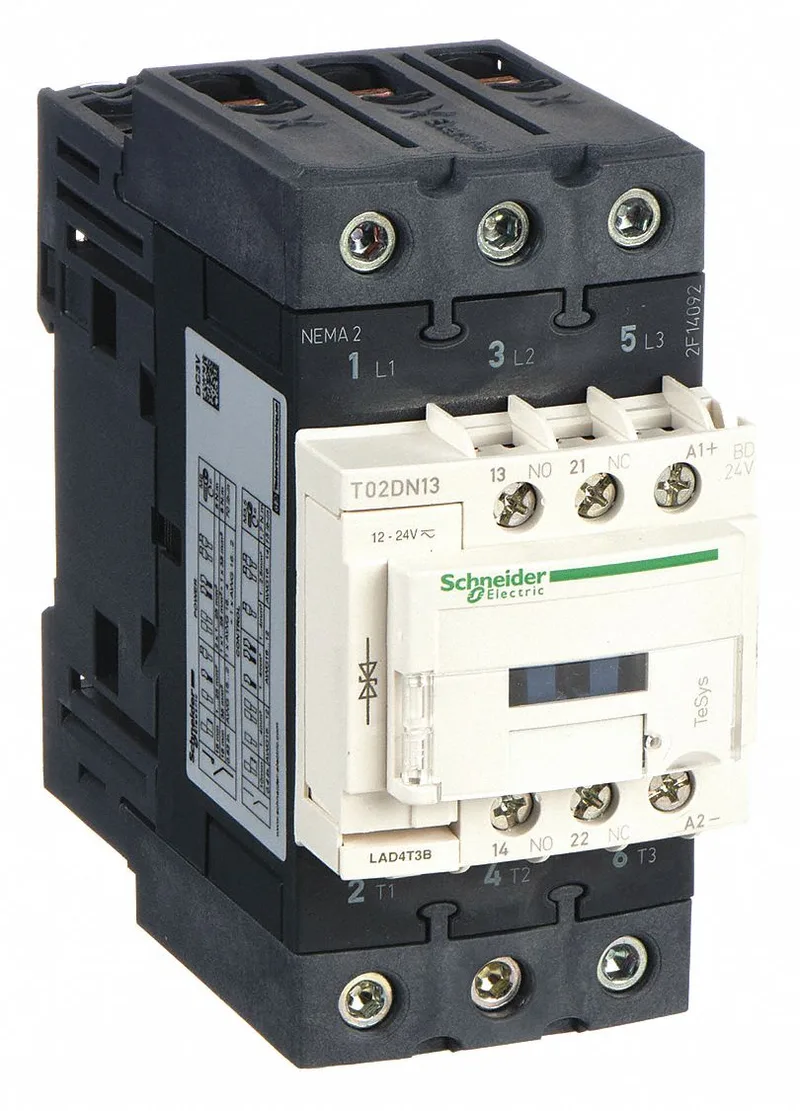

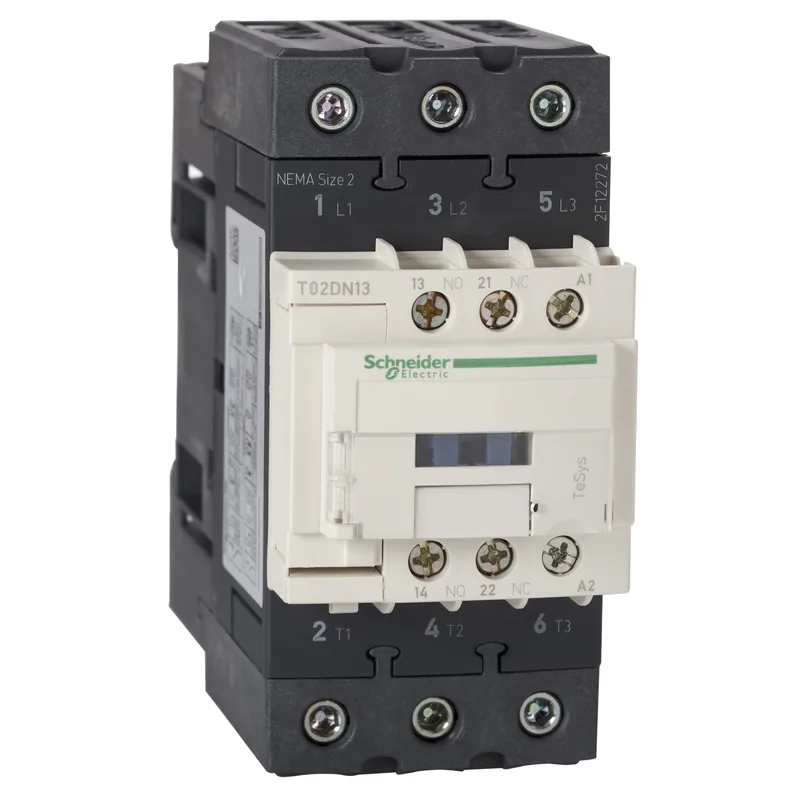

Schneider Electric T02DN13BD
MPNT02DN13BD
Active
TESYS NEMA SZ2 CONTACTOR 3 POLE 24VDC|TESYS NEMA SZ2 CONTACTOR 3 POLE 24VDC
$420.00 – $718.96Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Product type | Contactor |
| Contactor type | Non-reversing |
| [Ue] rated operational voltage | 600 V AC |
| Current | 45 A |
| Motor horsepower rating | 10 hp 200 V AC 15 hp 230 V AC 25 hp 460 V AC 25 hp 575 V AC |
| Poles | 3P |
| Network phases | 3 phase |
| NEMA degree of protection | Not rated (open device) |
| Electrical connection | Screw clamp terminals |
| Depth | 4.72 in (119.89 mm) |
| Width | 2.16 in (54.86 mm) |
| Height | 5.47 in (138.94 mm) |
All specifications
| Parameter | Value |
|---|---|
| Product weight | 2.21 lb(US) (1.002 kg) |
| Range | TeSys N |
| Category | US10CP121196 |
| NEMA size | 2 |
| Coil volltage | 24 V DC |
| Control circuit | Common control circuit |
| Auxiliary contact composition | 1 NO + 1 NC |
MPN
T02DN13BD
