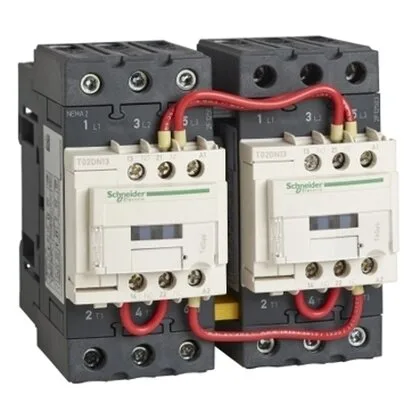

Schneider Electric T02DN23BD
MPNT02DN23BD
Obsolete
REV. CONTACTOR TESYS NEMA SZ2 3P 24VDC|REV. CONTACTOR TESYS NEMA SZ2 3P 24VDC
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Product type | Contactor |
| Contactor type | Reversing |
| Coil voltage | 24 V DC |
| [Ue] rated operational voltage | 600 V AC |
| Current | 45 A |
| Motor horsepower rating | 10 hp 200 V AC 15 hp 230 V AC 25 hp 460 V AC 25 hp 575 V AC |
| Poles | 3P |
| Network phases | 3 phase |
| NEMA degree of protection | Not rated (open device) |
| Electrical connection | Screw clamp terminals |
| Range | TeSys N |
| Category | US10CP121196 |
| NEMA size | 2 |
| Control circuit | Common control circuit |
| Auxiliary contact composition | 1 NO + 1 NC |
MPN
T02DN23BD
