Schneider Electric T02DN23U7
MPNT02DN23U7
Obsolete

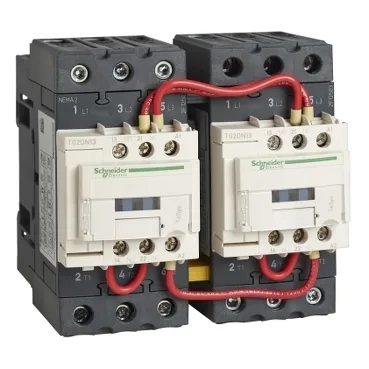

NEMA Contactor, TeSys N, reversing, Size 2, 45A, 25HP at 460VAC, 3 pole, 3 phase, 240VAC 50/60Hz coil, open
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Product type | Contactor |
| Contactor type | Reversing |
| Product range / family | TeSys N |
| Parameter | Value |
|---|---|
| Rated current | 45 A |
| Rated operational voltage (Ue) | 600 V AC |
| Motor horsepower rating (by voltage) | 10 hp 200 V AC 15 hp 230 V AC 25 hp 460 V AC 25 hp 575 V AC |
| NEMA size | 2 |
| Number of phases | 3 phase |
| Parameter | Value |
|---|---|
| Number of poles | 3P |
| Auxiliary contact composition | 1 NO + 1 NC |
| Parameter | Value |
|---|---|
| Coil voltage | 240 V AC |
| Control circuit (common/separate) | Common control circuit |
| Parameter | Value |
|---|---|
| Electrical connection / terminals | Screw clamp terminals |
| NEMA degree of protection | Not rated (open device) |
MPN
T02DN23U7
