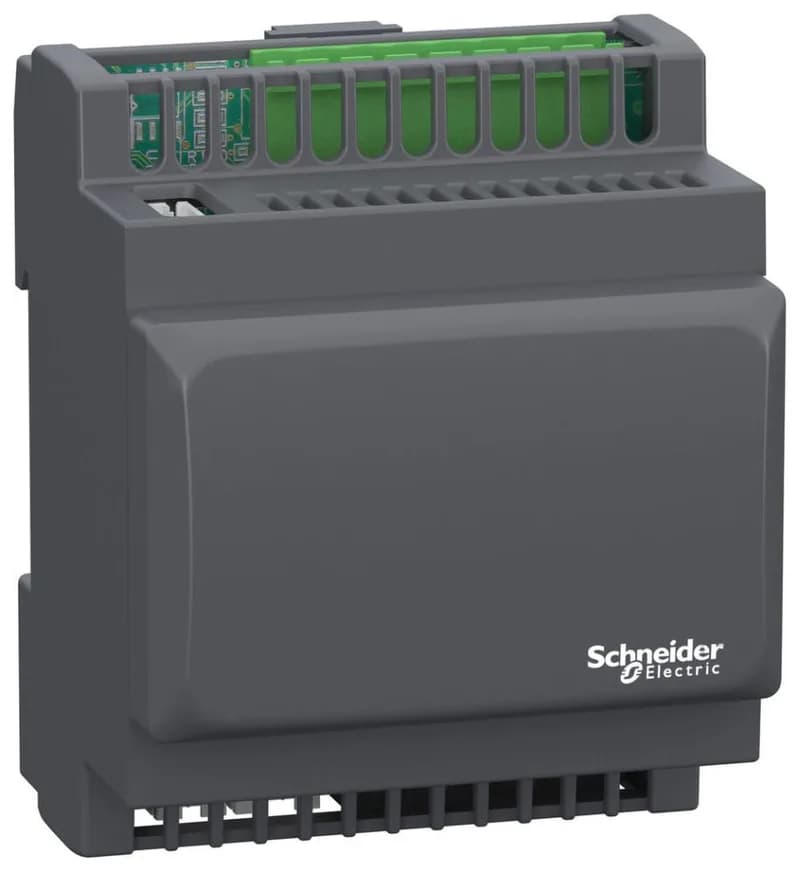

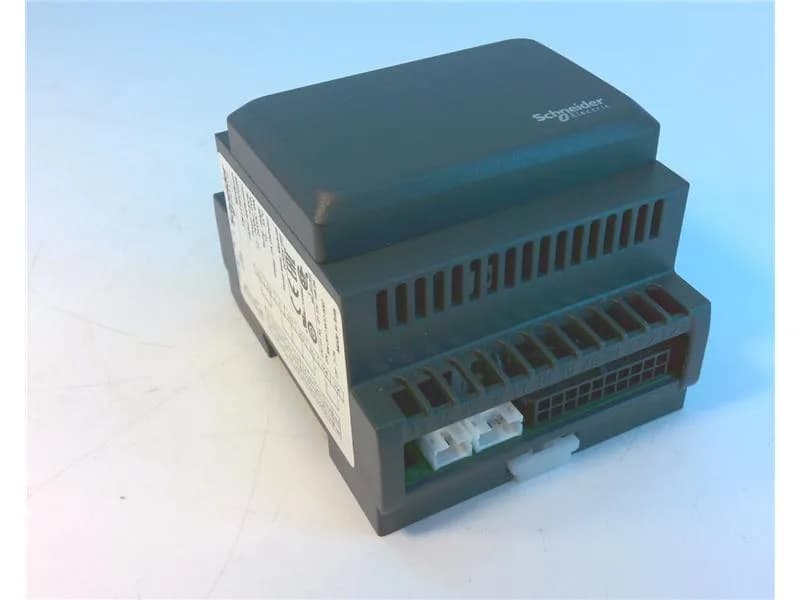

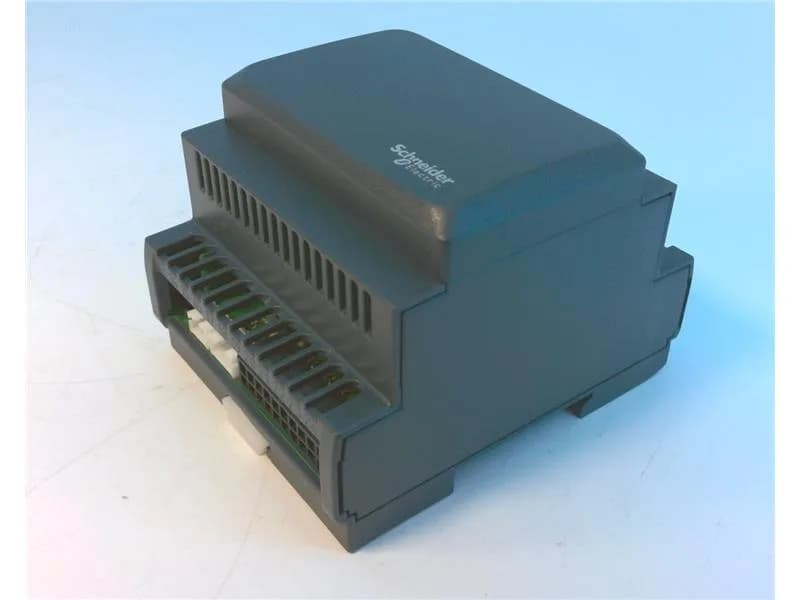

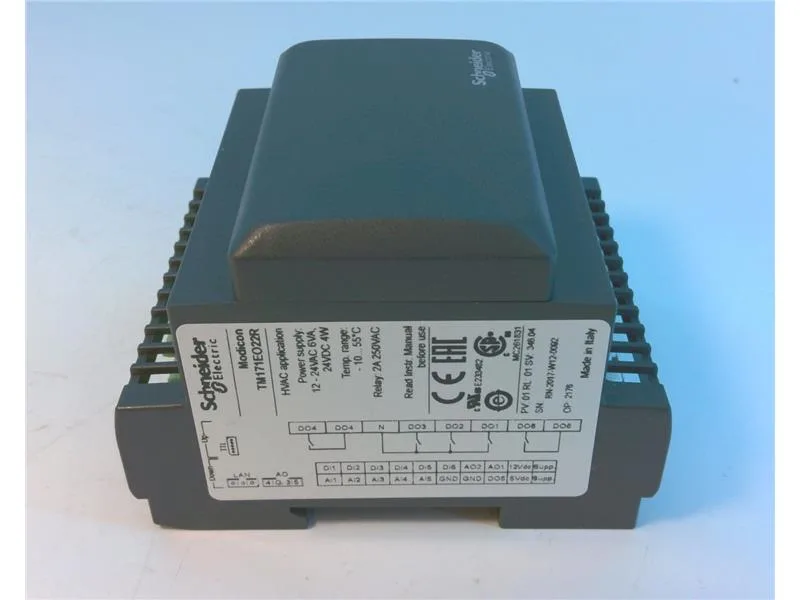

Schneider TM171EO22R I/O Module, Obsolete - Modicon M171

MPNTM171EO22R

Obsolete

Schneider Electric Modicon M171/M172, TM171EO22R expansion I/O module, 22 I/O (6 DI, 6 DO, 5 AI, 5 AO), 12-24 V DC.

$102.87Ref. price · indicative, final on quote

Find equivalent or request quote

Schneider Electric TM171EO22R datasheet (PDF)

StockContact for availability

MOQ1 pcs

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

How we verify every order →

Specifications

TM171EO22R key specifications
Parameter	Value
Range of product	Modicon M171/M172
Analogue input type	voltage 0...5 V ratiometric) voltage 0...10 V NTC temperature probe - 50...100 °C 0.1 °C current 0...20 mA/4...20 mA voltage 0...1 V
Product or component type	Additional I/O module
Supply voltage	12...24 V 24 V
Discrete output current	2 A relay
Sensor power supply	12 V DC 85 mA 5 V DC 20 mA
Depth	2.4 in (61.6 mm)
Width	2.8 in (70.2 mm)
Height	3.4 in (87 mm)
Category	US1PC1222537
Contacts usage	Volt-free contacts
Number of port	1 LAN expansion bus

All specifications

TM171EO22R additional specifications
Parameter	Value
Input (output number)	5 analog output 6 digital input 5 analog input 6 digital output
Discrete input logic	Sink or source (positive/negative)
Total inputs (outputs)	22
Analogue input number	3 analog input NTC 2 configurable
Discrete input number	6
Analogue output number	3 voltage 0...10 V 2 PWM/PPM 20 kHz, 12 V, 35 mA
Discrete output number	1 open collector 3 relay outputs SPST with same common 2 relay outputs SPST with independent common
Product specific application	HVAC and pumping solution

Product details

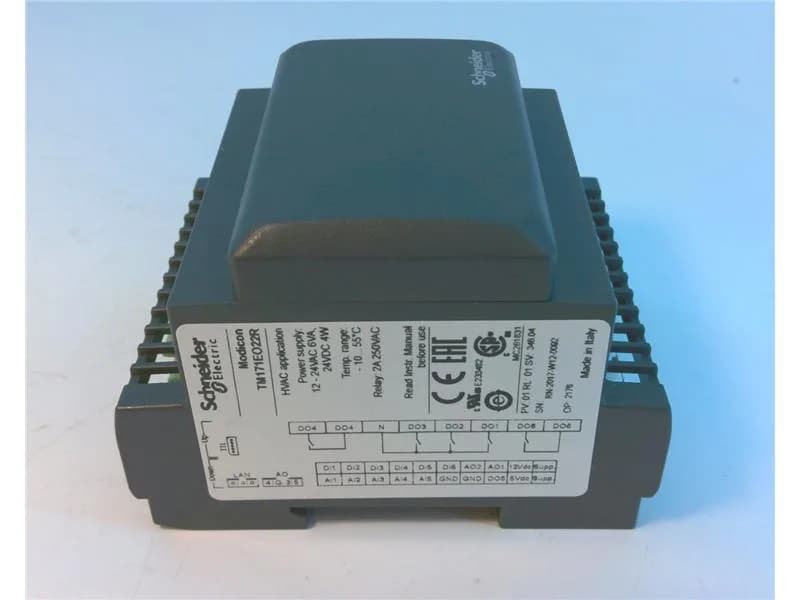

I/O configuration and ratings

This expansion module provides 22 total I/O points: 6 digital inputs (sink or source, 12-24 V DC), 6 digital outputs (1 open collector + 5 relay, relay rated 2 A), 5 analog inputs (voltage 0-10 V, 0-5 V ratiometric, NTC, current 0-20/4-20 mA), and 5 analog outputs (3 voltage 0-10 V, 2 PWM/PPM at 20 kHz, 12 V, 35 mA). It draws power from a 12-24 V DC supply. Two dedicated sensor supply outputs are provided: 12 V DC at 85 mA and 5 V DC at 20 mA.

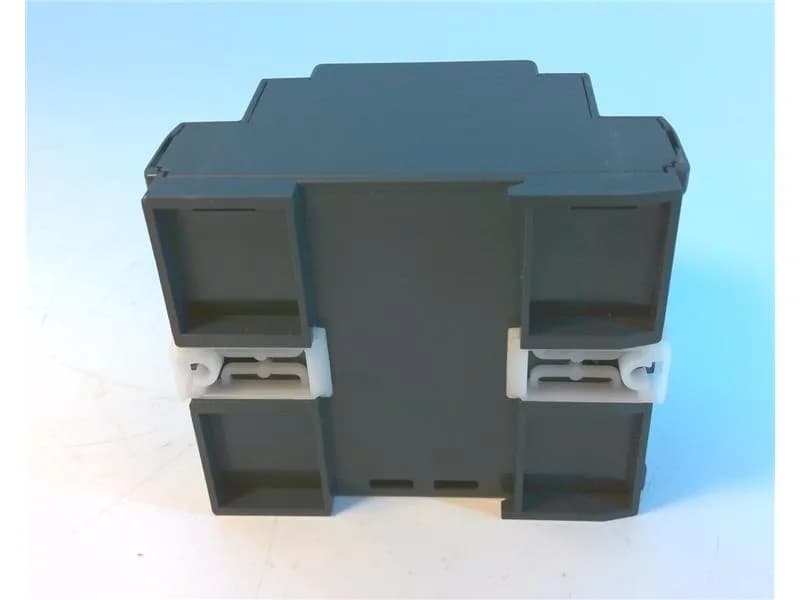

Mechanical fit

Physical dimensions: 2.8 in wide, 3.4 in high, 2.4 in deep. Panel mounting compatible with DIN rail or screw fixing within the Modicon M171/M172 enclosure.
