Schneider Electric TM171 Series

6 variants · Schneider Electric

About the Schneider Electric TM171 Series

AO Ctrl is a China industrial automation distributor and independent sourcing agent for Schneider Electric TM171 Series components — the parts repair and maintenance teams source here when a machine is down or the line is no longer sold locally — with the physical condition of every unit stated up front. The Schneider Electric TM171 Series series groups 6 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common IP rating of IP20 and temp storage max of 85 °C. Variants differ by main product or component type, operating temperature and storage temperature, so you can match the exact main product or component type your application requires using the selection guide below. The range mixes active and legacy part numbers, so you can source both current Schneider Electric TM171 Series variants and discontinued ones from a single page.

Select a variant by

Main product or component type: Additional I/O module · Communication module · Controller · Programmable controllers
Operating temperature: -4...131 °F (-20...55 °C) UL 60730-1 · -4...149 °F (-20...65 °C) UL 60730-1 · 14...131 °F (-10...55 °C) · 14...131 °F (-10...55 °C) UL 60730-1
Storage temperature: -40...185 °F (-40...85 °C) · -4...185 °F (-20...85 °C)
Temp operating max: 55 °C · 65 °C
Temp operating min: -20 °C · -10 °C
Temp storage min: -40 °C · -20 °C
Depth: 0.4 in (10 mm) · 2.4 in (60.5 mm) · 2.4 in (61.6 mm) · 3.0 in (76 mm)
Display type: Four 7-segment display units · LCD display - 128 x 64 pixels · Without Display

Shared specifications

IP rating: IP20
Temp storage max: 85 °C

Variant comparison

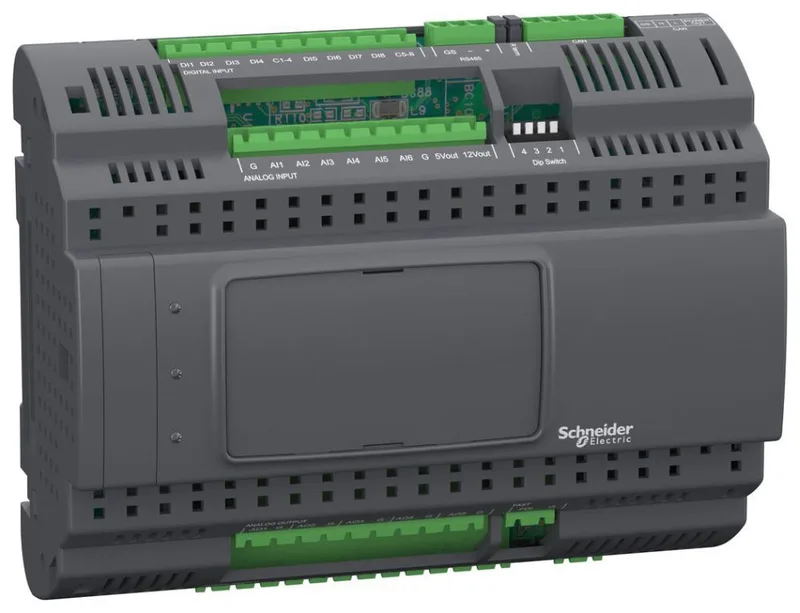

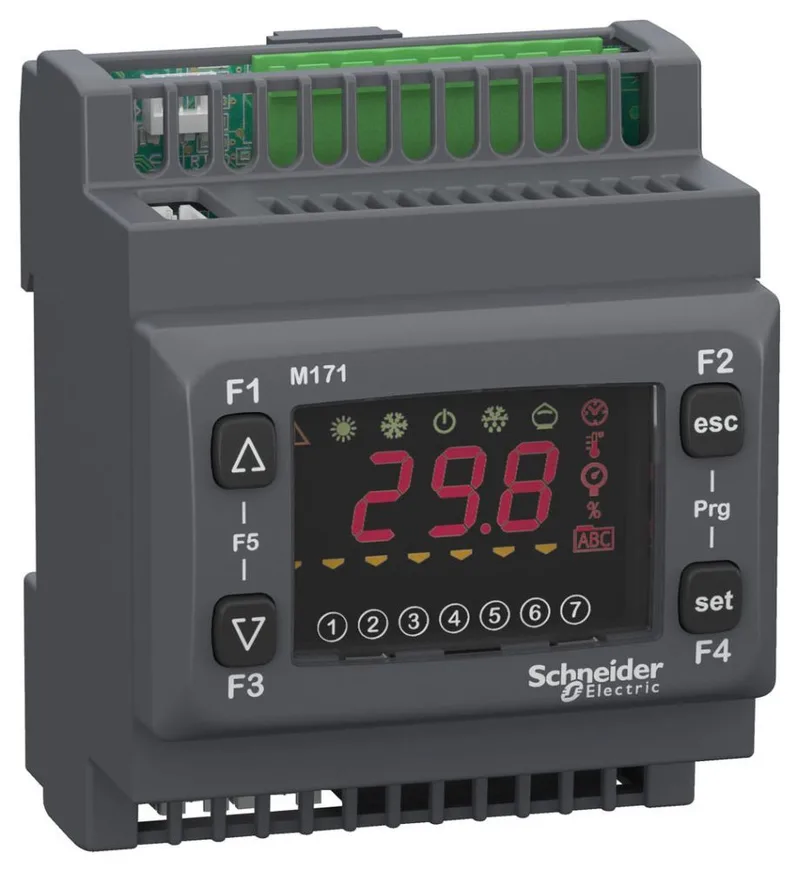

Parameter	TM171APBUS	TM171ODM22S	TM171EP27R	TM171OF22R	TM171PDM27R	TM171PFE03HR
Main product or component type	Communication module	Controller	Additional I/O module	Controller	Programmable controllers	Programmable controllers
Operating temperature	14...131 °F (-10...55 °C)	-4...131 °F (-20...55 °C) UL 60730-1	-4...131 °F (-20...55 °C) UL 60730-1	14...131 °F (-10...55 °C) UL 60730-1	14...131 °F (-10...55 °C) UL 60730-1	-4...149 °F (-20...65 °C) UL 60730-1
Storage temperature	-4...185 °F (-20...85 °C)	-40...185 °F (-40...85 °C)	-40...185 °F (-40...85 °C)	-40...185 °F (-40...85 °C)	-4...185 °F (-20...85 °C)	-4...185 °F (-20...85 °C)
Temp operating max	55 °C	55 °C	55 °C	55 °C	55 °C	65 °C
Temp operating min	-10 °C	-20 °C	-20 °C	-10 °C	-10 °C	-20 °C
Temp storage min	-20 °C	-40 °C	-40 °C	-40 °C	-20 °C	-20 °C
Depth	—	3.0 in (76 mm)	2.4 in (61.6 mm)	2.4 in (61.6 mm)	0.4 in (10 mm)	2.4 in (60.5 mm)
Display type	—	Four 7-segment display units	Without Display	Without Display	LCD display - 128 x 64 pixels	Without Display

Request a quote on any Schneider Electric TM171 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
