Schneider Electric TM171OBM14R

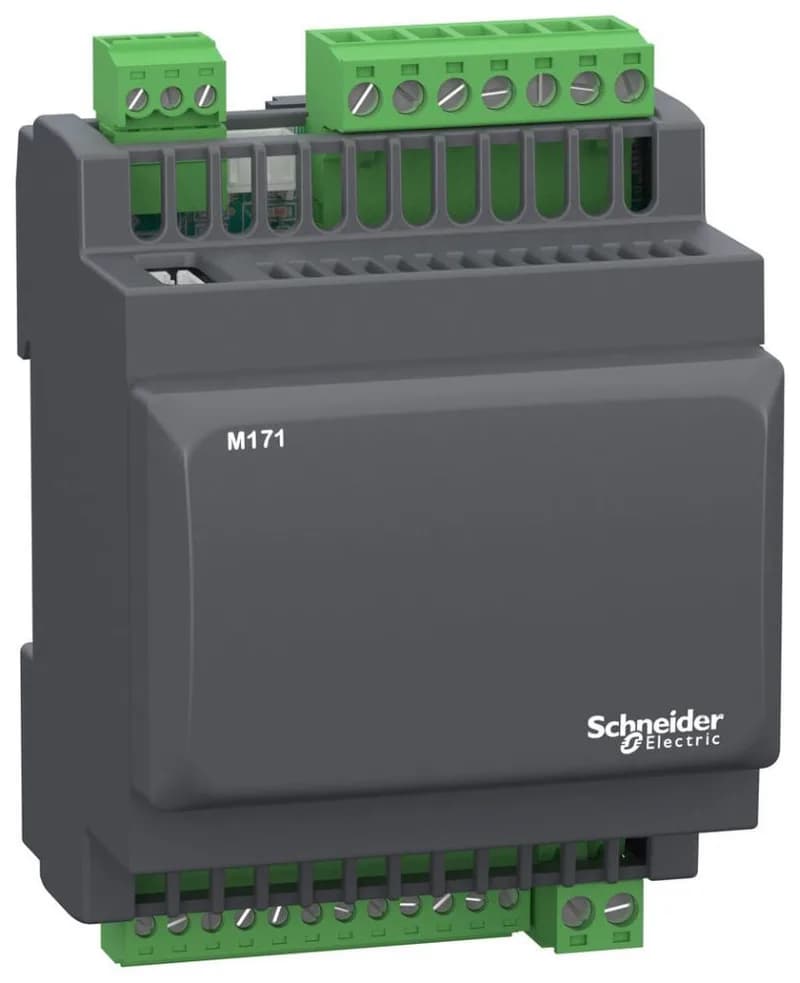

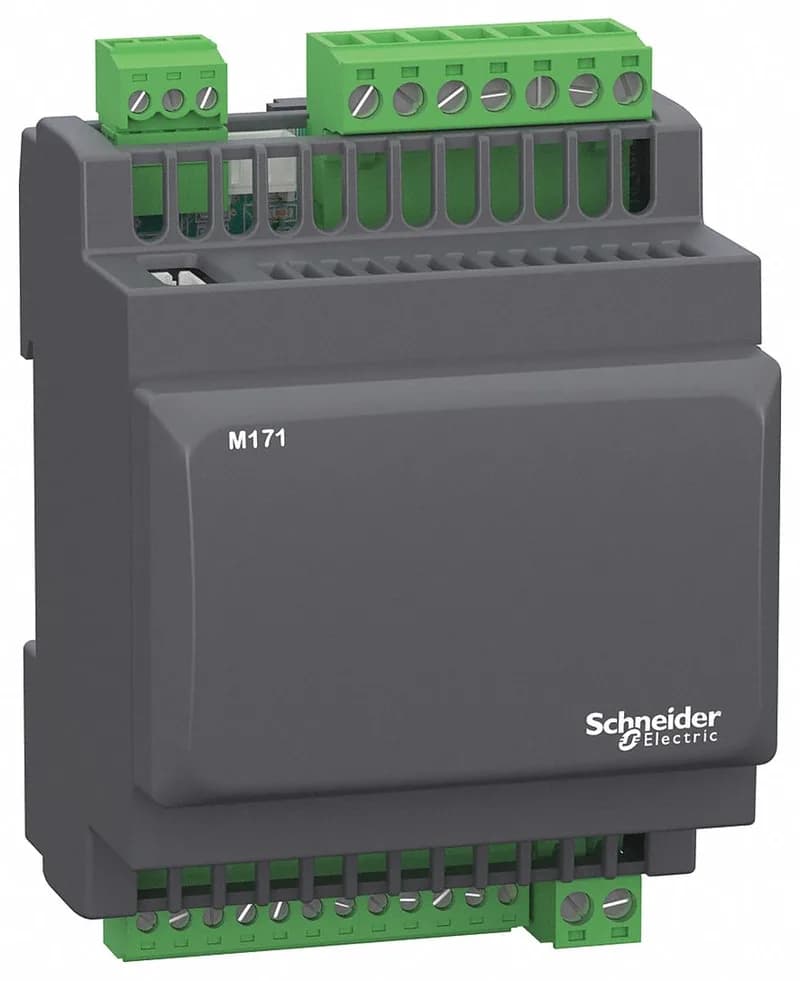

Schneider TM171OBM14R Modicon M171 controller, 14 I/O, blind

MPNTM171OBM14R
Obsolete

Schneider TM171OBM14R Plcs &Amp; Smart Relays.

$216.94 – $242.00Ref. price · indicative, final on quote
Schneider Electric TM171OBM14R datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

TM171OBM14R key specifications
ParameterValue
Range of productModicon M171/M172
Analogue input typeNTC temperature probe - 50...100 °C 0.1 °C Pt 1000 temperature probe - 50...400 °C 0.1 °C current 0...20 mA/4...20 mA voltage 0...1 V voltage 0...10 V ratiometric) voltage 0...5 V
Product or component typeController
Supply voltage100...240 V
Discrete output current2 A relay
Sensor power supply12 V DC 85 mA
Depth2.4 in (61.6 mm)
Width2.8 in (70.2 mm)
Height3.4 in (87 mm)
VariantProgrammable
CategoryUS1PC1222537
Contacts usageVolt-free contacts

All specifications

TM171OBM14R additional specifications
ParameterValue
Number of port1 LAN expansion bus 1 RS485 - screw terminal block Modbus serial link)
Input (output number)5 analog output 4 digital output 5 analog input
Discrete input logicSink or source (positive/negative)
Total inputs (outputs)14
Analogue input number2 configurable 3 analog input NTC
Discrete input number2
Analogue output number2 voltage 0...10 V 2 PWM/PPM 20 kHz, 12 V, 35 mA 1 current 0...20 mA/4...20 mA
Discrete output number1 relay outputs SPDT with independent common 3 relay outputs SPST with same common
Product specific applicationHVAC and pumping solution

Product details

Overview

The TM171OBM14R is a Schneider Modicon M171/M172/M173 optimized blind controller with 14 mixed I/O: 5 analog inputs (NTC, Pt1000, 0-20/4-20 mA, 0-1/0-5/0-10 V ratiometric), 5 analog outputs (0-10 V, PWM/PPM, 0-20/4-20 mA), and 4 digital outputs via volt-free relay contacts rated 2 A. It runs on 100-240 V AC supply, draws 85 mA at 12 V DC, and communicates over a built-in RS485 Modbus serial link plus an expansion bus for LAN modules. Schneider lists the TM171OBM14R as active production — no end-of-life notice.

I/O comparison vs TM171OBM22R

Compared to the TM171OBM22R, the TM171OBM14R trades discrete I/O for a lower channel count: 2 discrete inputs vs 6, and 4 digital outputs vs 6, while keeping the same 5 analog inputs and 5 analog outputs. The TM171OBM22R adds 6 digital inputs and 2 more digital outputs, making it the right choice when a panel needs more on-off sensing and relay switching; the TM171OBM14R fits when analog measurement density outweighs discrete count.

MPN
TM171OBM14R
