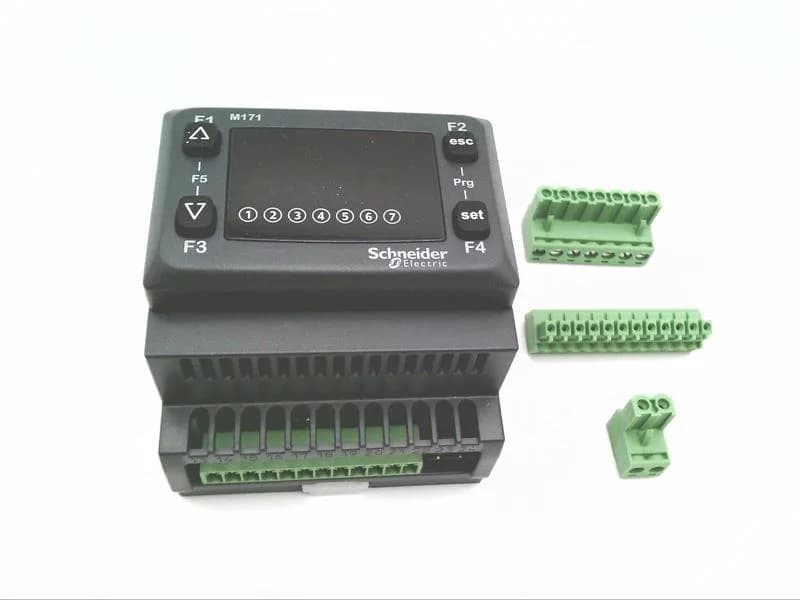

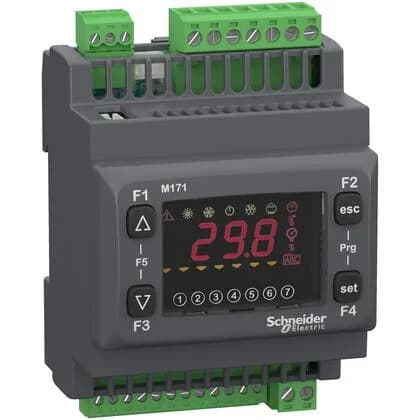

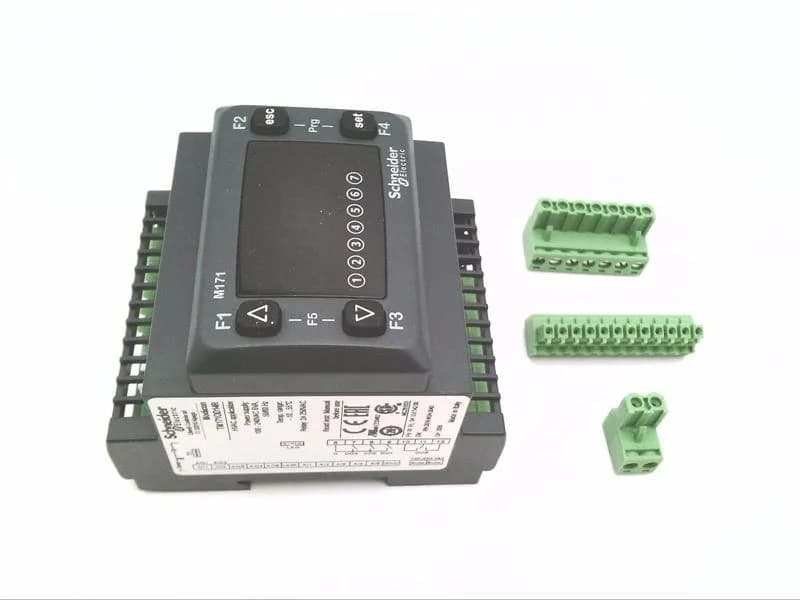

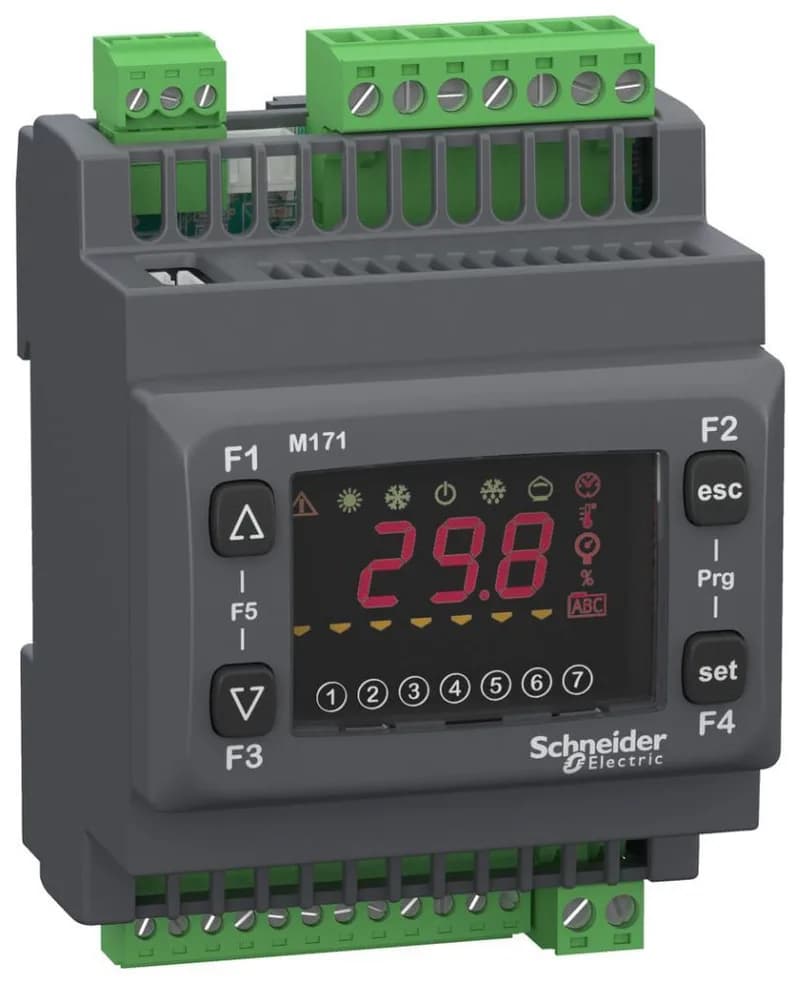

Schneider Electric TM171OD14R
MPNTM171OD14R
Active
M171 OPT. DISPLAY 14 I/OS 100-240 VAC|M171 OPT. DISPLAY 14 I/OS 100-240 VAC
$147.32 – $161.09Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Range of product | Modicon M171/M172 |
| Analogue input type | voltage 0...5 V ratiometric) voltage 0...10 V NTC temperature probe - 50...100 °C 0.1 °C Pt 1000 temperature probe - 50...400 °C 0.1 °C current 0...20 mA/4...20 mA voltage 0...1 V |
| Product or component type | Controller |
| Supply voltage | 100...240 V |
| Discrete output current | 2 A relay |
| Sensor power supply | 12 V DC 85 mA |
| Depth | 2.4 in (61.6 mm) |
| Width | 2.8 in (70.2 mm) |
| Height | 3.4 in (87 mm) |
| Variant | Programmable |
| Category | US1PC1222537 |
| Contacts usage | Volt-free contacts |
All specifications
| Parameter | Value |
|---|---|
| Number of port | 1 LAN expansion bus |
| Input (output number) | 5 analog output 4 digital output 5 analog input |
| Discrete input logic | Sink or source (positive/negative) |
| Total inputs (outputs) | 14 |
| Analogue input number | 2 configurable 3 analog input NTC |
| Discrete input number | 2 |
| Analogue output number | 2 voltage 0...10 V 2 PWM/PPM 20 kHz, 12 V, 35 mA 1 current 0...20 mA/4...20 mA |
| Discrete output number | 3 relay outputs SPST with same common 1 relay outputs SPDT with same common |
| Product specific application | HVAC and pumping solution |
MPN
TM171OD14R
