TM171OF22R - Schneider Electric
MPNTM171OF22R
Active

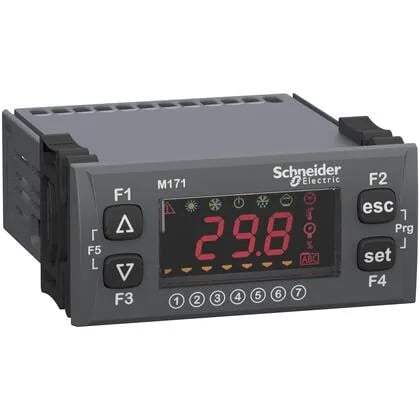

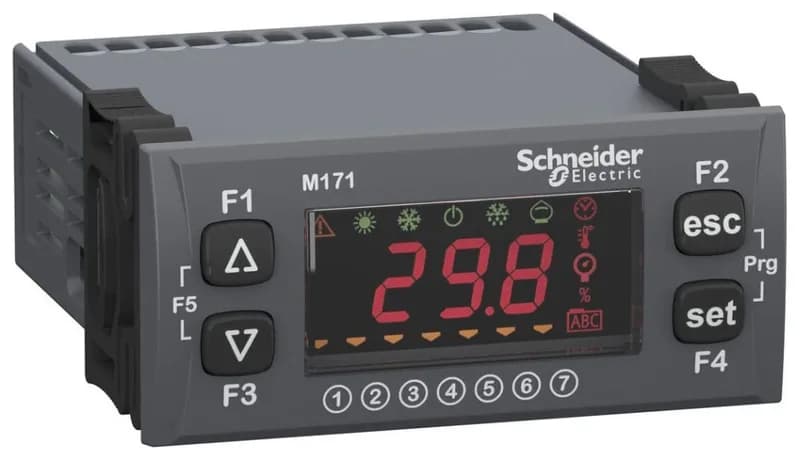

M171 OPT. FLUSH MOUNTING 22 I/OS|M171 OPT. FLUSH MOUNTING 22 I/OS
$247.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Display type | Without Display |
| Range of product | Modicon M171/M172 |
| Analogue input type | voltage 0...5 V ratiometric) voltage 0...10 V NTC temperature probe - 50...100 °C 0.1 °C current 0...20 mA/4...20 mA voltage 0...1 V |
| Product or component type | Controller |
| Supply voltage | 12...24 V +/- 20 % AC/DC 24 V +/- 20 % DC |
| Discrete output current | 2 A relay |
| Sensor power supply | 12 V DC 85 mA 5 V DC 20 mA |
| Power consumption in | 18 W 24...48 V AC/DC |
| IP degree of protection | IP20 |
| Mounting support | DIN rail |
| Pollution degree | 2 |
| Relative humidity | 10...90 % non-condensing |
All specifications
| Parameter | Value |
|---|---|
| Depth | 2.4 in (61.6 mm) |
| Width | 5.5 in (140 mm) |
| Height | 4.3 in (110 mm) |
| Standards | EN/IEC 60730 |
| Variant | Programmable |
| Category | US1PC1222537 |
| Directives | 86/188/EEC - physical agents (noise) directive 2006/95/EC - low voltage directive |
| Contacts usage | Volt-free contacts |
| Number of port | 1 LAN expansion bus |
| Realtime clock | Built-in clock at 14...131 °F (-10...55 °C) |
| Local signalling | 1 LED (red) for programmable 1 LED (yellow) for programmable 1 LED (green) for programmable |
| Input (output number) | 5 analog output 6 digital input 5 analog input 6 digital output |
| Discrete input logic | Sink or source (positive/negative) |
| Overvoltage category | II |
| Total inputs (outputs) | 22 |
| Analogue input number | 2 configurable 3 analog input NTC |
| Discrete input number | 6 |
| Analogue output number | 3 voltage 0...10 V 2 PWM/PPM 20 kHz, 12 V, 35 mA |
| Discrete output number | 1 open collector 3 relay outputs SPST with same common 2 relay outputs SPST with independent common |
| Product specific application | HVAC and pumping solution |
| Ambient air temperature for storage | -40...185 °F (-40...85 °C) |
| Ambient air temperature for operation | 14...131 °F (-10...55 °C) UL 60730-1 |
