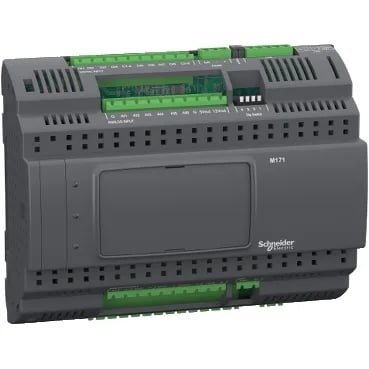

TM171PBM27R - Schneider Electric
MPNTM171PBM27R
Active
Controller, Modicon M171/M172/M173, performance blind 27 IO, Modbus
$417.80 – $652.43Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Display type | LCD display - 128 x 64 pixels |
| Range of product | Modicon M171/M172 |
| Analogue input type | voltage 0...5 V ratiometric) current 4...20 mA impedance 0...1500 hOhm impedance 0...300 daOhm NTC temperature probe - 50...110 °C 0.1 °C extended) voltage 0...10 V Pt 1000 temperature probe - 200...800 °C 0.1 °C NTC temperature probe - 40...150 °C 0.1 °C |
| Product or component type | Programmable controllers |
| Discrete input voltage | 24 V AC/DC 48 V DC |
| Supply voltage | 24 V +/- 20 % AC/DC 48 V +/- 20 % DC |
| Discrete input current | 2.5 mA |
| Discrete output current | 8 A relay SPDT 5 A relay SPST |
| Sensor power supply | 5 V DC 50 mA 12 V DC 150 mA |
| Power consumption in | 18 W 24...48 V AC/DC |
| IP degree of protection | IP20 |
| Mounting support | DIN rail |
All specifications
| Parameter | Value |
|---|---|
| Pollution degree | 2 |
| Relative humidity | 10...90 % non-condensing |
| Depth | 2.4 in (61.6 mm) |
| Width | 5.5 in (140 mm) |
| Height | 4.3 in (110 mm) |
| Standards | EN/IEC 60730 |
| Variant | Programmable |
| Category | US1PC1222537 |
| Directives | 86/188/EEC - physical agents (noise) directive 2006/95/EC - low voltage directive |
| Number of port | 1 CAN port - screw terminal block 1 USB type A - USB type A female 1 USB type mini B - USB device port Mini-B 1 RS485 - screw terminal block Modbus serial link) |
| Realtime clock | Built-in clock at 14...131 °F (-10...55 °C) |
| Input impedance | 20 kOhm |
| Local signalling | 1 LED (red) for programmable 1 LED (yellow) for programmable 1 LED (green) for programmable |
| Input (output number) | 6 analog input 5 analog output 8 digital input 7 digital output 1 high-speed counter |
| Discrete input logic | Sink or source (positive/negative) |
| Overvoltage category | II |
| Total inputs (outputs) | 27 |
| Analogue input number | 2 analog input NTC 4 configurable |
| Discrete input number | 8 |
| Analogue output number | 3 voltage/current 4...20 mA or 0...10 V 2 open collector 1 kHz, 12 V, 35 mA |
| Discrete output number | 3 relay outputs SPST with same common 2 relay outputs SPST with same common 2 relay outputs SPDT with independent common |
| Product specific application | HVAC and pumping solution |
| Ambient air temperature for storage | -4...185 °F (-20...85 °C) |
| Ambient air temperature for operation | 14...131 °F (-10...55 °C) UL 60730-1 |
MPN
TM171PBM27R
