Schneider TM171PFE03 Killark Ealr E Pak 1 1/2" Lr N Gasket S Cover 2 Per — now discontinued, supplied from remaining surplus and broker stock.
| Parameter | Value |
|---|---|
| Display type | Without Display |
| Range of product | Modicon M171/M172 |
| Analogue input type | voltage 0...5 V ratiometric) current 4...20 mA NTC temperature probe - 50...110 °C 0.1 °C extended) voltage 0...10 V NTC temperature probe - 40...150 °C 0.1 °C |
| Product or component type | Programmable controllers |
| Supply voltage | 24 V ±10% AC 48 V DC |
| Power consumption in | 24 VA 24 V AC 15 W 20...38 V DC |
| IP degree of protection | IP20 |
| Mounting support | DIN rail Panel mounting with accessory |
| Pollution degree | 2 |
| Relative humidity | 10...90 % non-condensing |
| Depth | 2.4 in (60.5 mm) |
| Width | 2.8 in (72 mm) |
| Parameter | Value |
|---|---|
| Height | 4.3 in (110 mm) |
| Standards | EN/IEC 60730 |
| Variant | Programmable |
| Category | US1PC1222537 |
| Number of port | 1 CAN port - screw terminal block 1 Ethernet - RJ45 Modbus TCP and BACnet IP with webserver) 1 RS485 - screw terminal block Modbus serial link or BACnet MS/TP) 1 |
| Realtime clock | Without clock at -4...149 °F (-20...65 °C) |
| Local signalling | Without |
| Input (output number) | 3 analog input |
| Overvoltage category | II |
| Total inputs (outputs) | 3 |
| Analogue input number | 1 analog input NTC board) 1 analog input NTC |
| Product specific application | HVAC and pumping solution |
| Ambient air temperature for storage | -4...185 °F (-20...85 °C) |
| Ambient air temperature for operation | -4...149 °F (-20...65 °C) UL 60730-1 |

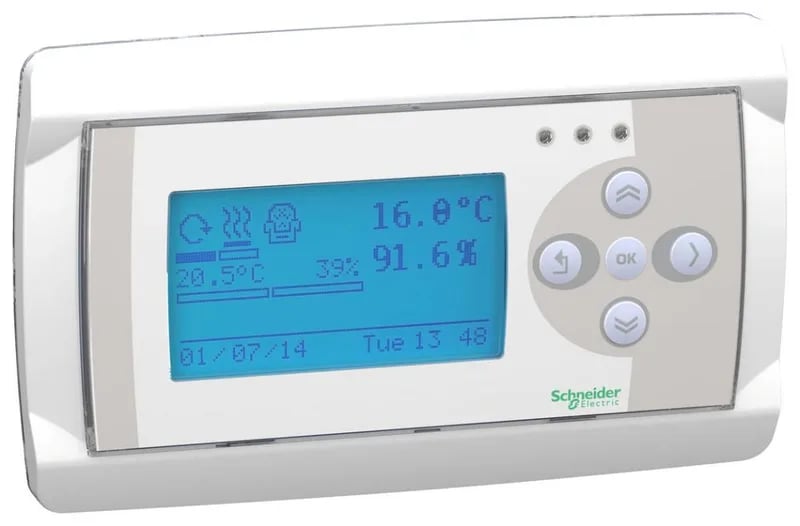

The TM171PFE03 is a Schneider Modicon M171 Performance Flush programmable controller with 3 analog inputs and 3 outputs, communicating over Modbus serial link, Modbus TCP, and BACnet MS/TP and IP via its Ethernet and RS485 ports.
Schneider discontinued the TM171PFE03 effective 2027-12-31. Remaining units are available through surplus and broker channels.
