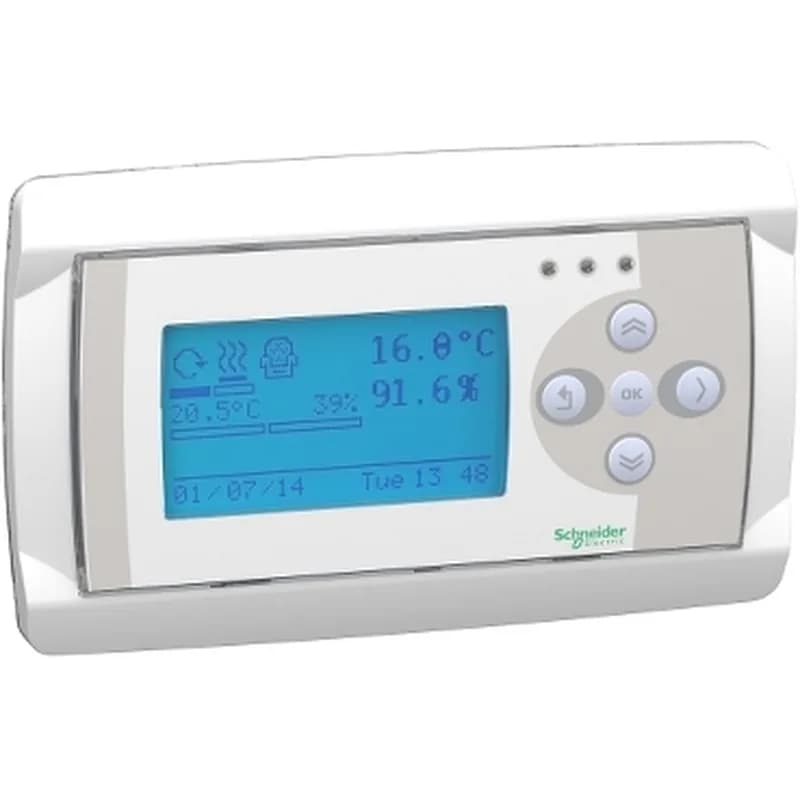

Schneider Electric TM171PFE03HR

Schneider TM171PFE03HR Modicon M171 HVAC Controller, Obsolet

MPNTM171PFE03HR
Obsolete

Schneider Modicon M171/M172 HVAC controller, TM171PFE03HR, programmable, 24 V DC, 3 analog inputs (NTC, humidity), without display, IP20, obsolete.

Schneider Electric TM171PFE03HR datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

TM171PFE03HR key specifications
ParameterValue
Display typeWithout Display
Range of productModicon M171/M172
Analogue input typeNTC temperature probe - 50...110 °C 0.1 °C extended) NTC temperature probe - 40...150 °C 0.1 °C humidity probe 0...100 % RH 0.01 % RH
Product or component typeProgrammable controllers
Supply voltage24 V ±10% AC 48 V DC
Power consumption in24 VA 24 V AC 15 W 20...38 V DC
IP degree of protectionIP20
Mounting supportPanel mounting with accessory DIN rail
Pollution degree2
Relative humidity10...90 % non-condensing
Depth2.4 in (60.5 mm)
Width2.8 in (72 mm)

All specifications

TM171PFE03HR additional specifications
ParameterValue
Height4.3 in (110 mm)
StandardsEN/IEC 60730
VariantProgrammable
Category22537-M171 / M172 HVAC CONTROLLERS
Number of port1 CAN port - screw terminal block 1 Ethernet - RJ45 Modbus TCP and BACnet IP with webserver) 1 RS485 - screw terminal block Modbus serial link or BACnet MS/TP) 1
Realtime clockWithout clock at -4...149 °F (-20...65 °C)
Local signallingWithout
Input (output number)3 analog input
Overvoltage categoryII
Total inputs (outputs)3
Analogue input number1 analog input NTC board) 1 analog input NTC 1 relative humidity sensor board)
Product specific applicationHVAC and pumping solution
Ambient air temperature for storage-4...185 °F (-20...85 °C)
Ambient air temperature for operation-4...149 °F (-20...65 °C) UL 60730-1

Product details

Product Status & Certification

The TM171PFE03HR is an obsolete Modicon M171 Performance Flush programmable controller from Schneider Electric. It is certified to EN/IEC 60730 and carries CE, CSA, cURus, and RCM markings.

Key Ratings & Fit

Rated supply 24 V DC ±10% (also accepts 24 V AC), consumption 24 VA AC / 15 W DC. Three analog inputs accept NTC temperature probes (50…110 °C and 40…150 °C) and a humidity probe (0…100 % RH). One CAN port, one Ethernet with Modbus TCP and BACnet/IP webserver, and one RS485 for Modbus serial or BACnet MS/TP. Panel-mount dimensions: depth 2.4 in (60.5 mm), width 2.8 in (72 mm), height 4.3 in (110 mm). IP20, pollution degree 2, overvoltage category II. Ambient operational range –4 to 149 °F (–20 to 65 °C).

Frequently asked questions

What are the panel-mounted dimensions of the TM171PFE03HR?

Depth 2.4 in (60.5 mm), width 2.8 in (72 mm), height 4.3 in (110 mm).

What compliance documentation does the TM171PFE03HR carry?

It is certified to EN/IEC 60730 and carries CE, CSA, cURus, and RCM markings.
