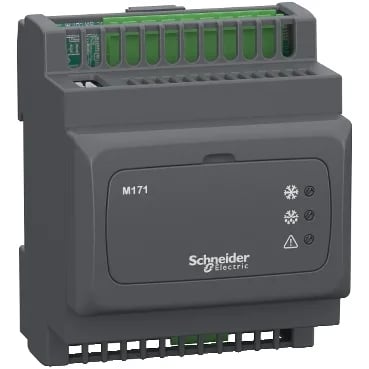

Schneider TM171VEVA2 Modicon M171 Controller, Obsolete

MPNTM171VEVA2

Obsolete

Schneider Modicon M171 TM171VEVA2 Controller, 1 analog input 1 digital output, 24 V AC/DC, without display, obsolete.

Find equivalent or request quote

Schneider Electric TM171VEVA2 datasheet (PDF)

StockContact for availability

MOQ1 pcs

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

How we verify every order →

Specifications

TM171VEVA2 specifications
Parameter	Value
Display type	Without Display
Range of product	Modicon M171
Product or component type	Controller
Supply voltage	24 V +/- 10 % AC/DC
Sensor power supply	5 V DC
IP degree of protection	IP20
Mounting support	DIN rail
Depth	2.4 in (61.6 mm)
Width	2.8 in (70.2 mm)
Height	3.4 in (87 mm)
Marking	CE
Category	US1PC1222537
Input (output number)	2 total) 1 analog input 1 digital output
Analogue input number	1 analog input NTC 4...20 mA or 0...5 V or 0...10 V
Discrete output number	1 open collector
Ambient air temperature for operation	23...122 °F (-5...50 °C)

Product details

The Schneider TM171VEVA2 Modicon M171 controller is now obsolete. It provides one NTC-capable analog input (4…20 mA, 0…5 V, or 0…10 V) and one open-collector digital output, powered by a 24 V AC/DC supply ±10 %. The unit is DIN-rail mounted in an IP20 enclosure and lacks a local display.

Physical & Mounting Constraints

The controller measures 2.4 in deep (61.6 mm), 2.8 in wide (70.2 mm), and 3.4 in high (87 mm). Operating ambient range is -5…50 °C.

CE marking is the only compliance notation documented. Verify with your quality team if certificates beyond CE are required.

Frequently asked questions

What are the key ratings of the TM171VEVA2?

It has 1 analog input (configurable for NTC, 4…20 mA, 0…5 V, or 0…10 V) and 1 open-collector digital output. Supply voltage is 24 V AC/DC ±10 %. Operating temperature range is -5…50 °C.
