The Schneider TM171VEVM4 is an active Modicon M171 controller running on 24 V +/-10% AC/DC. It packs 8 mixed I/O — 4 analog inputs (NTC, Pt1000, 4-20 mA, or 0-5/0-10 V), 2 digital inputs (sink/source), and 2 digital outputs (1 open collector, 1 SPST relay). A single Modbus RS485 port handles the serial link. No display, so it's a pure controller for embedded or cabinet-mount jobs. Dimensions are 2.8 in (70.2 mm) wide, 3.4 in (87 mm) tall, 2.4 in (61.6 mm) deep — fits a standard DIN rail footprint. IP20, so it expects a clean indoor panel. CE marked for EU compliance.

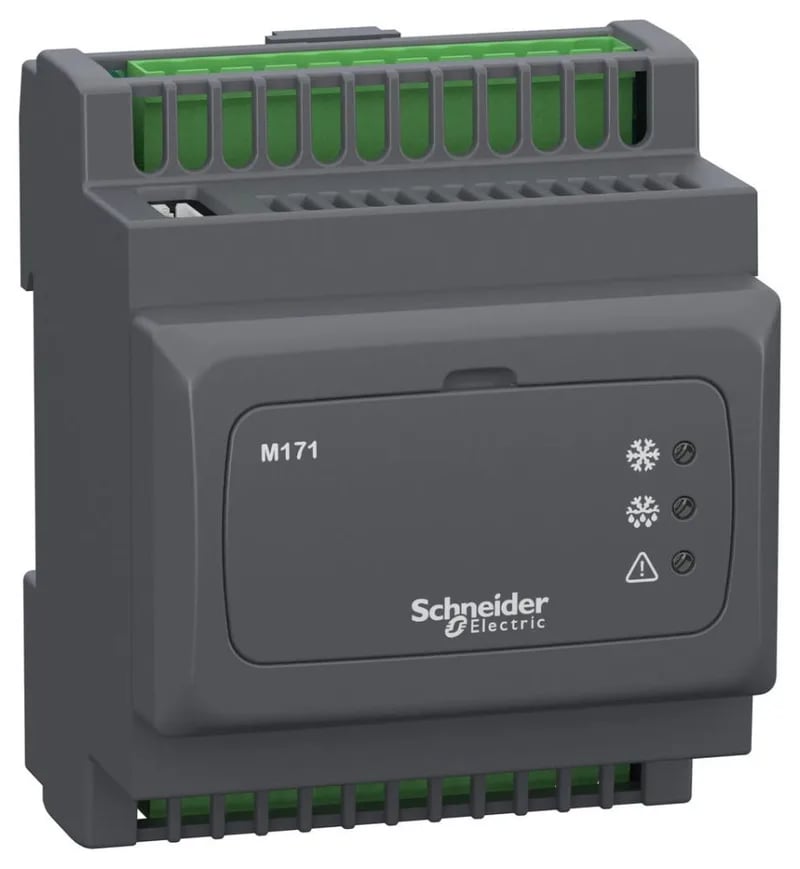

Schneider TM171VEVM4 Modicon M171 Controller, 24V AC/DC
MPNTM171VEVM4
Active
Schneider Modicon M171 controller TM171VEVM4, 24 V AC/DC, 8 I/O, Modbus RS485, IP20, without display.
$142.59Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Display type | Without Display |
| Range of product | Modicon M171 |
| Product or component type | Controller |
| Supply voltage | 24 V +/- 10 % AC/DC |
| Sensor power supply | 5 V DC 12 V DC |
| IP degree of protection | IP20 |
| Mounting support | DIN rail |
| Depth | 2.4 in (61.6 mm) |
| Width | 2.8 in (70.2 mm) |
| Height | 3.4 in (87 mm) |
| Marking | CE |
| Category | US1PC1222537 |
All specifications
| Parameter | Value |
|---|---|
| Contacts usage | Volt-free contacts |
| Number of port | 1 Modbus serial link - RS485 |
| Input (output number) | 8 total) 4 analog input 2 digital input 2 digital output |
| Discrete input logic | Sink or source (positive/negative) |
| Analogue input number | 2 analog input NTC 2 analog input Pt 1000 4...20 mA or 0...5 V or 0...10 V |
| Discrete input number | 2 |
| Discrete output number | 1 open collector 1 SPST |
| Ambient air temperature for operation | 23...122 °F (-5...50 °C) |
Product details
Frequently asked questions
What is the TM171VEVM4 depth?
The depth is 2.4 in (61.6 mm).
What is the TM171VEVM4 width?
The width is 2.8 in (70.2 mm).
What compliance markings does this controller carry?
It carries the CE marking.
