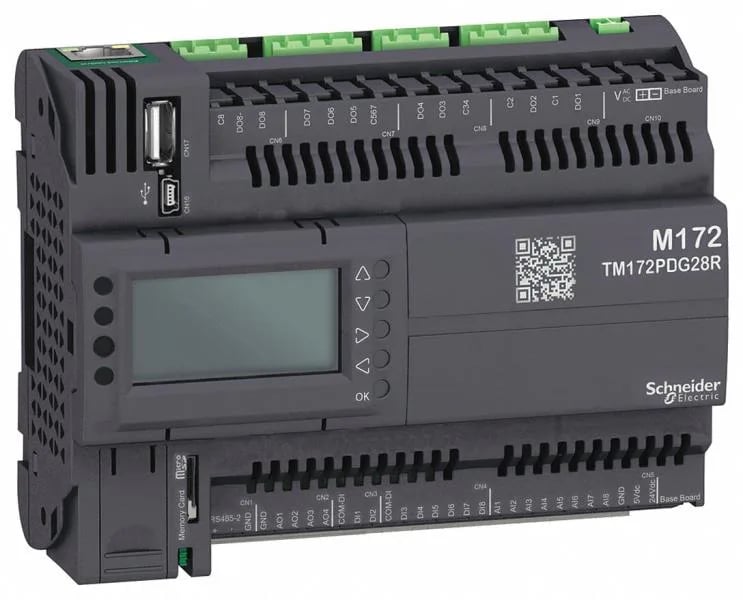

Schneider Electric TM172PDG28R

TM172PDG28R Modicon M172 Controller, 28 I/O, LCD

MPNTM172PDG28R
Active

SQUARE D Modicon M172 TM172PDG28R Programmable Controller, 24 V AC/DC, 28 I/O, backlit LCD 128x64, Modbus TCP, BACnet IP, IP20.

$520.70Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

TM172PDG28R key specifications
ParameterValue
Display typeBacklit LCD - 128 x 64 pixels
Range of productModicon M171/M172
Analogue input typeimpedance 0...1500 hOhm impedance 0...300 daOhm NTC temperature probe - 50...110 °C 0.1 °C extended) voltage 0...10 V NTC temperature probe - 40...150 °C 0.1 °C current 0...20 mA/4...20 mA PTC temperature probe - 55...150 °C 0.1 °C voltage 0...5 V absolute or ratiometric) Pt 1000 temperature probe - 200...850 °C 0.1 °C
Product or component typeProgrammable controllers
Discrete input voltage24 V AC/DC
Supply voltage24 V +/- 10 % AC 20...38 V DC
Discrete input current2.5 mA
Discrete output current1 A relay SPDT 3 A relay SPST
Sensor power supply5 V DC 50 mA supplied by the controller 24 V DC 150 mA supplied by the controller
Power consumption in15 W 24 V AC/DC
IP degree of protectionIP20
Mounting supportPanel mounting with accessory DIN rail

All specifications

TM172PDG28R additional specifications
ParameterValue
Pollution degree2
Relative humidity5...95 % non-condensing
Operating altitude0...6561.68 ft (0...2000 m)
Depth2.4 in (60.5 mm)
Width5.7 in (144 mm)
Height4.3 in (110 mm)
StandardsEN/IEC 60730 UL94 (material V0)
VariantProgrammable
CategoryUS1PC1222537
Directives86/188/EEC - physical agents (noise) directive 2006/95/EC - low voltage directive
Number of port1 CAN port - screw terminal block 1 USB type A - USB type A female 1 USB type mini B - USB device port Mini-B 2 RS485 - screw terminal block Modbus serial link or BACnet MS/TP) 1 Ethernet - RJ45 Modbus TCP and BACnet IP with webserver)
Realtime clockBuilt-in clock at -4...140 °F (-20...60 °C)
Input impedance10 kOhm
Local signalling1 LED (red) for programmable 1 LED (yellow) for programmable 1 LED (green) for programmable 1 LED (green) for power
Input (output number)8 digital input 8 analog input 4 analog output 8 digital output
Discrete input logicSink or source (positive/negative)
Overvoltage categoryII
Total inputs (outputs)28
Analogue input number8 configurable by pair
Discrete input number8
Analogue output number2 voltage 0...10 V 2 voltage/current 4...20 mA or 0...10 V or PWM (2 kHz)
Discrete output number1 relay outputs SPDT with independent common 3 relay outputs SPST with same common 2 relay outputs SPST with same common 2 relay outputs SPST with independent common
Product specific applicationHVAC and pumping solution
Ambient air temperature for storage-22...158 °F (-30...70 °C)
Ambient air temperature for operation-4...140 °F (-20...60 °C) UL 60730-1 -4...149 °F (-20...65 °C) with derating UL 60730-1

Product details

What it is — active, HVAC/pumping controller

The TM172PDG28R: Carries 28 mixed I/O: 8 digital inputs (24 V AC/DC, sink or source), 8 analog inputs configurable by pair (voltage 0–10 V, current 0/4–20 mA, NTC/Pt1000), 4 analog outputs (2 voltage, 2 configurable as voltage/current/PWM), and 8 relay outputs (mix of SPDT/SPST, 1 A or 3 A). Ethernet port supports Modbus TCP and BACnet IP with an embedded webserver; two RS-485 ports handle Modbus serial or BACnet MS/TP. Also includes a CAN port, USB host and device ports. Runs on 24 V AC/DC ±10% AC / 20–38 V DC, drawing 15 W at full load. Backlit LCD (128×64) gives local status without a separate HMI.

Fit and environment

Panel-mount with optional DIN-rail adapter; IP20, pollution degree 2, overvoltage category II. Operating range -20 to +60 °C, 5–95% RH non-condensing, altitude to 2000 m. Dimensions 144 mm wide × 110 mm tall × 60.5 mm deep.

Compliance documentation

Meets EN/IEC 60730 for automatic electrical controls, UL94 V0 for flammability, and complies with Low Voltage Directive 2006/95/EC and physical agents (noise) directive 86/188/EEC.

Sourcing reality

Current production—no last-time-buy or end-of-life notice on this order code.

Frequently asked questions

What compliance documentation does this controller carry?

It meets EN/IEC 60730, UL94 V0 (material flammability), and complies with the Low Voltage Directive 2006/95/EC and physical agents (noise) directive 86/188/EEC.

What are the key I/O ratings?

8 digital inputs (24 V AC/DC, sink/source), 8 analog inputs configurable by pair (0–10 V, 0/4–20 mA, NTC/Pt1000), 4 analog outputs (2 voltage, 2 voltage/current/PWM), and 8 relay outputs (max 3 A per SPST, 1 A per SPDT).
