Schneider Electric TM172PDG28S

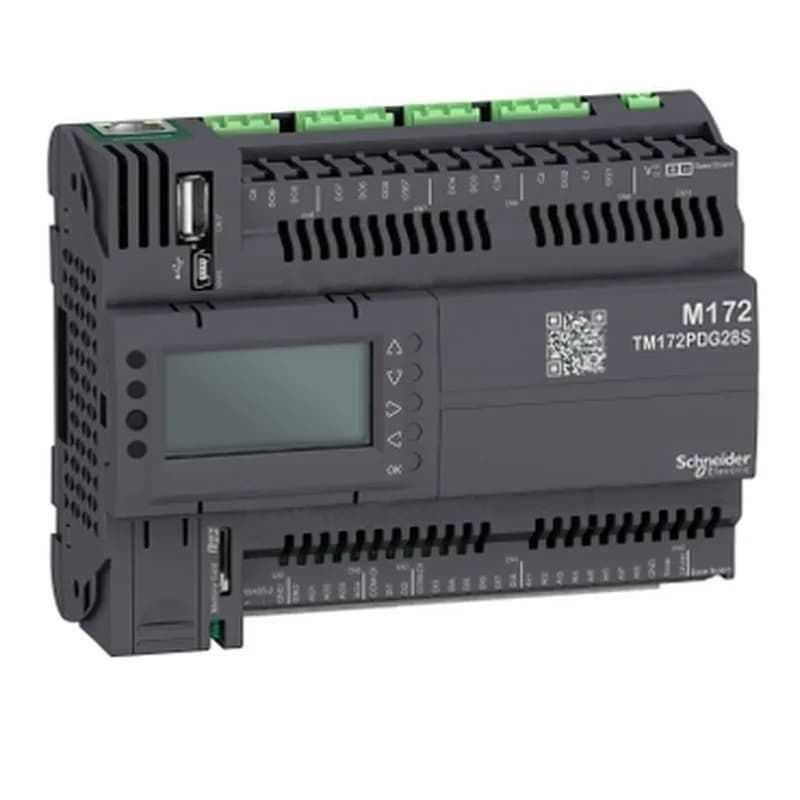

Schneider TM172PDG28S Modicon M172 controller, 28 I/O

MPNTM172PDG28S
Active

Schneider TM172PDG28S Modicon.

$722.56Ref. price · indicative, final on quote
Schneider Electric TM172PDG28S datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

TM172PDG28S key specifications
ParameterValue
Display typeBacklit LCD - 128 x 64 pixels
Range of productModicon M171/M172
Analogue input typeimpedance 0...1500 hOhm impedance 0...300 daOhm NTC temperature probe - 50...110 °C 0.1 °C extended) voltage 0...10 V NTC temperature probe - 40...150 °C 0.1 °C current 0...20 mA/4...20 mA PTC temperature probe - 55...150 °C 0.1 °C voltage 0...5 V absolute or ratiometric) Pt 1000 temperature probe - 200...850 °C 0.1 °C
Product or component typeProgrammable controllers
Discrete input voltage24 V AC/DC
Supply voltage24 V +/- 10 % AC 20...38 V DC
Discrete input current2.5 mA
Discrete output current0.5 A solid state, isolated 1 A relay SPDT 3 A relay SPST
Sensor power supply5 V DC 50 mA supplied by the controller 24 V DC 150 mA supplied by the controller
Power consumption in15 W 24 V AC/DC
IP degree of protectionIP20
Mounting supportDIN rail Panel mounting with accessory

All specifications

TM172PDG28S additional specifications
ParameterValue
Pollution degree2
Relative humidity5...95 % non-condensing
Operating altitude0...6561.68 ft (0...2000 m)
Depth2.4 in (60.5 mm)
Width5.7 in (144 mm)
Height4.3 in (110 mm)
StandardsEN/IEC 60730 UL94 (material V0)
VariantProgrammable
CategoryUS1PC1222537
Directives2006/95/EC - low voltage directive 86/188/EEC - physical agents (noise) directive
Number of port1 CAN port - screw terminal block 1 USB type A - USB type A female 1 USB type mini B - USB device port Mini-B 2 RS485 - screw terminal block Modbus serial link or BACnet MS/TP) 1 Ethernet - RJ45 Modbus TCP and BACnet IP with webserver)
Realtime clockBuilt-in clock at -4...131 °F (-20...55 °C)
Input impedance10 kOhm
Local signalling1 LED (red) for programmable 1 LED (yellow) for programmable 1 LED (green) for programmable 1 LED (green) for power
Input (output number)8 digital input 8 analog input 4 analog output 8 digital output
Discrete input logicSink or source (positive/negative)
Overvoltage categoryII
Total inputs (outputs)28
Analogue input number8 configurable by pair
Discrete input number8
Analogue output number2 voltage 0...10 V 2 voltage/current 4...20 mA or 0...10 V or PWM (2 kHz)
Discrete output number1 relay outputs SPDT with independent common 3 relay outputs SPST with same common 2 relay outputs SPST with same common 2 solid state, isolated SSR with independent common
Product specific applicationHVAC and pumping solution
Ambient air temperature for storage-22...158 °F (-30...70 °C)
Ambient air temperature for operation-4...131 °F (-20...55 °C) UL 60730-1

Product details

Overview

The TM172PDG28S is a Modicon M172 programmable controller with 28 I/O points: 8 digital inputs, 8 analog inputs, 4 analog outputs, and 8 digital outputs. It runs on a 24 V AC/DC supply and carries CE, cURus, and CSA certifications.

I/O comparison vs TM172ODM28R

Compared to the TM172ODM28R, the TM172PDG28S offers 8 analog inputs configurable by pair versus 2 analog inputs on the TM172ODM28R, and 4 analog outputs versus 5. The TM172PDG28S also lacks a high-speed counter present on the TM172ODM28R. For applications needing more analog sensing, the TM172PDG28S is the better fit; for high-speed counting, the TM172ODM28R is required.

Power and mounting

The controller draws 5 V DC 50 mA from the controller bus and 24 V DC 150 mA from the supply. It mounts on DIN rail or panel with accessory, and measures 144.78 mm wide by 109.22 mm high by 60.96 mm deep.

MPN
TM172PDG28S
