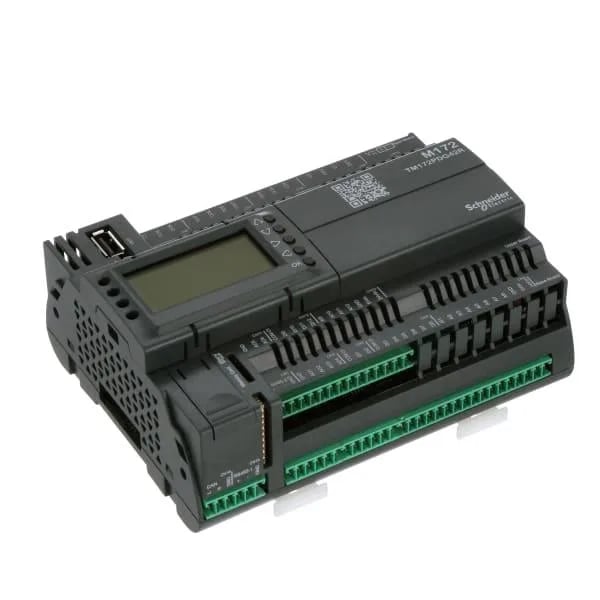

Schneider TM172PDG42R Modicon M172 Controller, 42 I/O

MPNTM172PDG42R
Active

Schneider Electric Modicon M172 programmable controller, TM172PDG42R, 42 I/O, 24 V AC/DC, backlit LCD, Ethernet/RS485/CAN.

$612.14Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

TM172PDG42R key specifications
ParameterValue
Display typeBacklit LCD - 128 x 64 pixels
Range of productModicon M171/M172
Analogue input typeimpedance 0...1500 hOhm impedance 0...300 daOhm direct input NTC temperature probe - 50...110 °C 0.1 °C extended) voltage 0...10 V NTC temperature probe - 40...150 °C 0.1 °C current 0...20 mA/4...20 mA PTC temperature probe - 55...150 °C 0.1 °C voltage 0...5 V absolute or ratiometric) Pt 1000 temperature probe - 200...850 °C 0.1 °C
Product or component typeProgrammable controllers
Discrete input voltage24 V AC/DC
Supply voltage24 V +/- 10 % AC 20...38 V DC
Discrete input current2.5 mA
Discrete output current1 A relay SPDT 3 A relay SPST
Sensor power supply5 V DC 50 mA supplied by the controller 24 V DC 150 mA supplied by the controller
Power consumption in15 W 24 V AC/DC
IP degree of protectionIP20
Mounting supportPanel mounting with accessory DIN rail

All specifications

TM172PDG42R additional specifications
ParameterValue
Pollution degree2
Relative humidity5...95 % non-condensing
Operating altitude0...6561.68 ft (0...2000 m)
Depth2.4 in (60.5 mm)
Width5.7 in (144 mm)
Height4.3 in (110 mm)
StandardsEN/IEC 60730 UL94 (material V0)
VariantProgrammable
CategoryUS1PC1222537
Directives2006/95/EC - low voltage directive 86/188/EEC - physical agents (noise) directive
Number of port1 CAN port - screw terminal block 1 USB type A - USB type A female 1 USB type mini B - USB device port Mini-B 2 RS485 - screw terminal block Modbus serial link or BACnet MS/TP) 1 Ethernet - RJ45 Modbus TCP and BACnet IP with webserver)
Realtime clockBuilt-in clock at -4...140 °F (-20...60 °C)
Input impedance10 kOhm
Local signalling1 LED (red) for programmable 1 LED (yellow) for programmable 1 LED (green) for programmable 1 LED (green) for power
Input (output number)12 analog input 6 analog output 12 digital input 12 digital output
Discrete input logicSink or source (positive/negative)
Overvoltage categoryII
Total inputs (outputs)42
Analogue input number12 configurable by pair
Discrete input number12
Analogue output number4 voltage 0...10 V 2 voltage/current 4...20 mA or 0...10 V or PWM (2 kHz)
Discrete output number2 relay outputs SPST with same common 2 relay outputs SPST with independent common 2 relay outputs SPDT with same common 3 relay outputs SPST with independent common 3 relay outputs SPST with same common
Product specific applicationHVAC and pumping solution
Ambient air temperature for storage-22...158 °F (-30...70 °C)
Ambient air temperature for operation-4...140 °F (-20...60 °C) UL 60730-1 -4...149 °F (-20...65 °C) with derating UL 60730-1

Product details

Schneider Modicon M172 controller, TM172PDG42R, packs 42 I/O into a 144×110 mm panel cutout for HVAC and pumping duty. Its 12 analog inputs accept NTC, Pt1000, 0-10 V, and 4-20 mA — the sensor set you find on air handlers, chillers, and pump stations. Two RS485 ports handle Modbus or BACnet MS/TP, and the Ethernet port serves Modbus TCP, BACnet IP, and a built-in webserver. Lifecycle stage is current; no end-of-life notice is on file.

Analog inputs are configurable by pair; the 10 kOhm impedance is suited for 0-10 V signals, and the controller supplies 24 V at 150 mA to power external 4-20 mA transmitters directly. For long sensor runs, the 4-20 mA loop is your best noise rejecter — keep the shield grounded at one end. Digital inputs are sink or source at 24 V AC/DC, 2.5 mA per channel. Digital outputs are relays: a mix of SPST and SPDT, rated 3 A for SPST or 1 A for SPDT. That covers solenoid valves, contactor coils, and pilot lights without external interposing relays.
