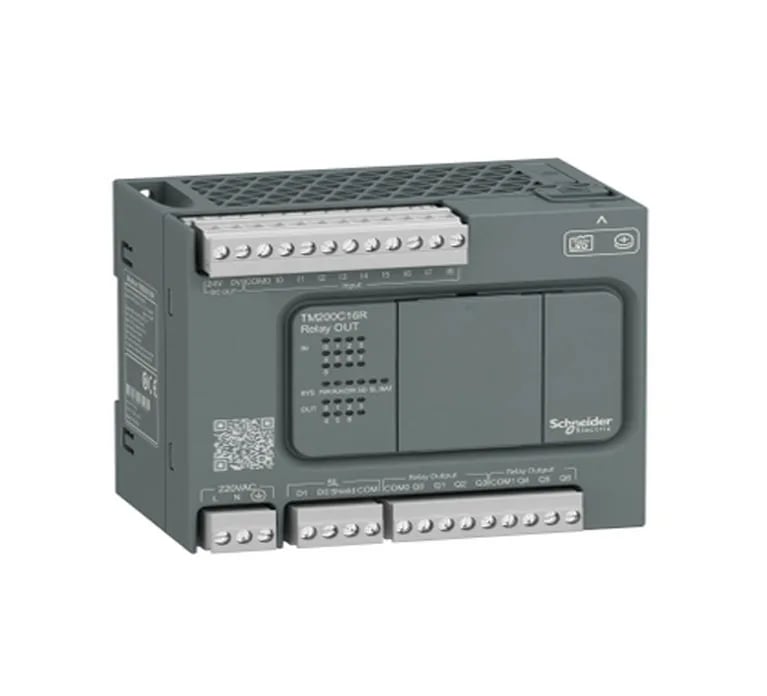

Schneider Electric TM200C16R

Schneider TM200C16R Modicon M200 PLC, 16 I/O, relay outputs

MPNTM200C16R
Active

Schneider Electric Modicon M200 PLC controller, TM200C16R, 16 I/O relay outputs, high-speed inputs 100 kHz, DIN rail mount.

$132.00Ref. price · indicative, final on quote
Schneider Electric TM200C16R datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

TM200C16R key specifications
ParameterValue
Battery typeBR2032 Li-CFx (Lithium-Carbon Monofluoride), battery life: 5 year(s)
Range of productEasy Modicon M200
Control signal typeQuadrature (x1, x2, x4) at 100 kHz for fast input (HSC mode) Pulse/direction at 100 kHz for fast input (HSC mode) Single phase at 100 kHz for fast input (HSC mode) CW/CCW at 100 kHz for fast input (HSC mode)
Discrete output typeRelay normally open
Product or component typeLogic controller
Integrated connection typeUSB port with mini B USB 2.0 connector Non isolated serial link serial 1 with terminal block connector and RS485 interface Non isolated serial link serial 2 with terminal block connector and RS232/RS485 interface Isolated serial link serial 2 with terminal block connector and RS485 interface
Discrete input voltage typeDC
Output voltage limits30 V DC 250 V AC
Supply voltage limits85...264 V
Discrete input voltage24 V
Discrete output voltage24 V DC 220 V AC
Supply voltage100...240 V AC

All specifications

TM200C16R additional specifications
ParameterValue
Voltage state 0 guaranteed<= 5 V for input
Voltage state 1 guaranteed>= 15 V for input
Inrush current50 A
Discrete input current7 mA for input
Discrete output current2 A
Maximum current per output common4 A at COM 0 4 A at COM 1
Sensor power supply24 V DC at 250 mA supplied by the controller
Power consumption in51...63 VA at 100...240 V AC (with max I/O)
Network frequency50/60 Hz
Switching frequency0.1 Hz with maximum load
IP degree of protectionIP20 with protective cover in place
Communication port protocolUSB port: USB - SoMachine-Network Non isolated serial link: Modbus master/slave - RTU/ASCII or SoMachine-Network
Mounting supportTop hat type TH35-15 rail conforming to IEC 60715 Top hat type TH35-7.5 plate or panel with fixing kit conforming to IEC 60715
Electrical connectionMini B USB 2.0 connectorfor a programming terminal removable screw terminal blockfor inputs removable screw terminal blockfor outputs removable screw terminal block, 4 terminal(s) for connecting the serial link1 removable screw terminal block, 3 terminal(s) for connecting the 100-240 V AC power supply
Maximum cable distance between devicesUnshielded cable: Shielded cable: Shielded cable: Unshielded cable: <150 m for output
Response time10 ms turn-off, Q0...Q6 terminal(s) for relay output 10 ms turn-on, Q0...Q6 terminal(s) for relay output 5 µs turn-off, I0, I1, I6, I7 terminal(s) for high speed input 5 µs turn-on, I0, I1, I6, I7 terminal(s) for high speed input 100 µs turn-off, I2...I5 terminal(s) for fast input 35 µs turn-on, I2...I5 terminal(s) for fast input 100 µs turn-off, I8 terminal(s) for regular input 35 µs turn-on, I8 terminal(s) for regular input
Pollution degree<= 2
Shock resistance15 gn for 11 ms 30 gn for 6 ms
Storage altitude0...3000 m
Relative humidity10...95 %, without condensation (in operation) 10...95 %, without condensation (in storage)
Operating altitude0...2000 m
Vibration resistance3.5 mm at 5...8.4 Hz on symmetrical rail 1 gn at 8.4...150 Hz on symmetrical rail 3.5 mm at 5...8.7 Hz on panel mounting 2 gn at 8.7...150 Hz on panel mounting
Depth70 mm
Width110 mm
Height90 mm
Electrical durability100000 cycles AC-12, 240 V, 480 VA, resistive 100000 cycles DC-12, 24 V, 48 W, resistive
Mechanical durability20000000 cycles for relay output
StandardsIEC 61131-2 IEC 61010-2-201
MarkingCE
InsulationNon-insulated between inputs Between output and internal logic at 1780 V AC Between output groups at 1780 V AC Between supply and internal logic at 1780 V AC Between input and internal logic at 500 V AC Between fast input and internal logic at 500 V AC Between input groups at 500 V AC
Backup time3 years at 25 °C (by interruption of power supply)
Clock drift<= 90 s/month at 25 °C
Minimum load10 mA at 5 V DC for relay output
Input impedance3.3 kOhm for discrete input
Memory capacity512 byte internal flash with 10000 instructions for backup of programs
Regulation loopAdjustable PID regulator up to 14 simultaneous loops
Local signalling1 LED (green) for PWR 1 LED (green) for RUN 1 LED (red) for module error (ERR) 1 LED (green) for SD card access (SD) 1 LED (red) for BAT 1 LED (green) for SL1 1 LED per channel (green) for I/O state
Transmission rate1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 15 m for RS485 1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 3 m for RS232 12 Mbit/s for USB
Discrete i (O number)16
Discrete input logicSink or source (positive/negative) type 1 conforming to IEC 61131-2
Counting input number4 fast input (HSC mode) at 100 kHz 32 bits
Discrete input numberI8: 1 regular input I2...I5: 4 fast input I0, I1, I6, I7: 4 high speed input
Data storage equipment32 GB micro SD card (optional)
Discrete output number7 relay
Immunity to microbreaks10 ms
Exct time for event task60 µs response time
Configurable filtering time0 ms for input 3 ms for input 12 ms for input
Electromagnetic compatibilityElectrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to IEC 61000-4-2 Electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2 Susceptibility to electromagnetic fields - test level: 10 V/m (80 MHz...3 GHz) conforming to IEC 61000-4-3 Magnetic field at power frequency - test level: 30 A/m conforming to IEC 61000-4-8 Electrical fast transient/burst immunity test - test level: 2 kV (power lines) conforming to IEC 61000-4-4 Electrical fast transient/burst immunity test - test level: 2 kV (relay output) conforming to IEC 61000-4-4 Electrical fast transient/burst immunity test - test level: 1 kV (I/O) conforming to IEC 61000-4-4 Electrical fast transient/burst immunity test - test level: 1 kV (serial link) conforming to IEC 61000-4-4 1.2/50 µs shock waves immunity test - test level: 1 kV (power lines (DC)) conforming to IEC 61000-4-5 1.2/50 µs shock waves immunity test - test level: 2 kV (power lines (AC)) conforming to IEC 61000-4-5 1.2/50 µs shock waves immunity test - test level: 2 kV (relay output) conforming to IEC 61000-4-5 1.2/50 µs shock waves immunity test - test level: 1 kV (I/O) conforming to IEC 61000-4-5 1.2/50 µs shock waves immunity test - test level: 1 kV (shielded cable) conforming to IEC 61000-4-5 1.2/50 µs shock waves immunity test - test level: 0.5 kV (power lines (DC)) conforming to IEC 61000-4-5 1.2/50 µs shock waves immunity test - test level: 1 kV (power lines (AC)) conforming to IEC 61000-4-5 Conducted RF disturbances - test level: 10 V (0.15...80 MHz) conforming to IEC 61000-4-6 Conducted emission - test level: 79 dBμV/m QP/66 dBμV/m AV (power lines (AC)) conforming to IEC 55011 Conducted emission - test level: 73 dBμV/m QP/60 dBμV/m AV (power lines (AC)) conforming to IEC 55011 Radiated emission - test level: 40 dBμV/m QP class A (10 m) conforming to IEC 55011 Radiated emission - test level: 47 dBμV/m QP class A (10 m) conforming to IEC 55011 1.2/50 µs shock waves immunity test - test level: 1 kV (relay output) conforming to IEC 61000-4-5
Execution time per instruction0.2 µs Boolean
Execution time for 1 KInstruction0.3 ms for event and periodic task
Ambient air temperature for storage-25...70 °C
Ambient air temperature for operation0...55 °C (horizontal installation)

Product details

PLC core specs at a glance

Four of the inputs can be configured as high-speed counters at 100 kHz, supporting quadrature, pulse/direction, or single-phase modes. The relay outputs carry AC-12 or DC-12 ratings at 240 V / 24 V respectively, good for 100,000 cycles of resistive loads. Communication and programming are handled via USB mini-B, RS232, or RS485 (up to 115.2 kbit/s). The built-in 24 V DC sensor supply delivers 250 mA, enough for the local input loop. Onboard memory runs 10,000 instructions, with a battery-backed real-time clock good for three years at 25 °C.

Mounts on a TH35-15 or TH35-7.5 DIN rail per IEC 60715; panel mounting kit alternative. Screw terminal blocks for input, output, and serial link — removable for pre-wiring. The micro-B USB port is on the front for quick programming access. Input wiring is sink/source compatible (IEC 61131-2 type 1). Input impedance 3.3 kOhm, inrush rated at 50 A. For inductive load switching on outputs, note the minimum load requirement of 10 mA at 5 V DC to keep relay contacts clean. Response time on relay outputs is 10 ms on/off; high-speed inputs respond in 5 µs.

Control and compliance

No long lead times expected for this current line.

Frequently asked questions

What is the supply voltage requirement for the TM200C16R?

It accepts 85 to 264 V AC at 50/60 Hz.

Does the TM200C16R have high-speed input capability?

Yes, it has four fast inputs configurable as high-speed counters (HSC) at 100 kHz, 32-bit, supporting quadrature, pulse/direction, single-phase, and CW/CCW.

What are the physical dimensions of the TM200C16R?

Width 110 mm, height 90 mm, depth 70 mm.
