Schneider Electric TM200C16T

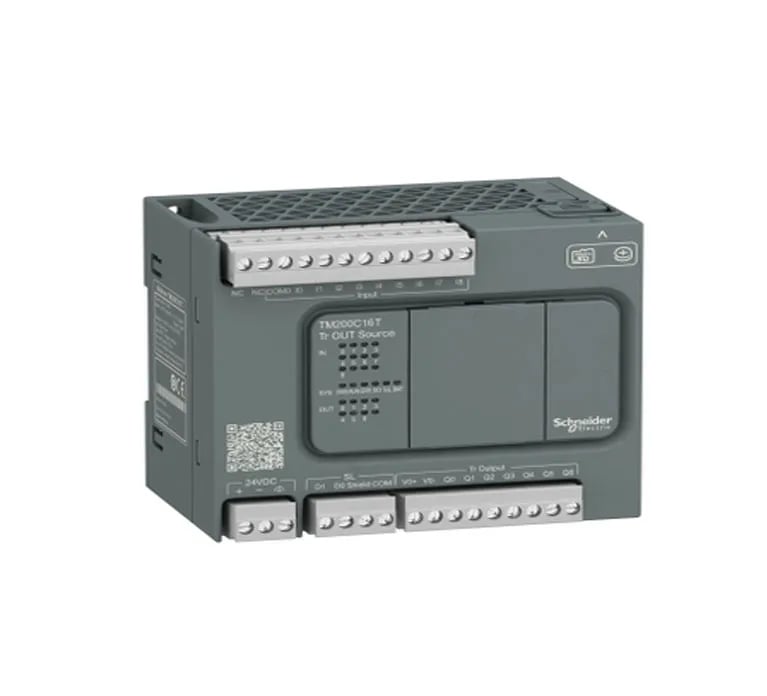

Schneider TM200C16T Modicon M200 PLC, 16 I/O, 100 kHz

MPNTM200C16T
Active

Schneider Electric Easy Modicon M200 logic controller, TM200C16T, 16 discrete I/O with transistor sourcing outputs, 100 kHz high-speed counting, integral PID, 20.4…28.8 V DC supply, DIN-rail mount.

$132.00Ref. price · indicative, final on quote
Schneider Electric TM200C16T datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

TM200C16T key specifications
ParameterValue
Battery typeBR2032 Li-CFx (Lithium-Carbon Monofluoride), battery life: 5 year(s)
Protection typeOverload and short-circuit protection at 2 A
Range of productEasy Modicon M200
Control signal typeQuadrature (x1, x2, x4) at 100 kHz for fast input (HSC mode) Pulse/direction at 100 kHz for fast input (HSC mode) Single phase at 100 kHz for fast input (HSC mode) CW/CCW at 100 kHz for fast input (HSC mode)
Discrete output typeTransistor
Product or component typeLogic controller
Integrated connection typeUSB port with mini B USB 2.0 connector Non isolated serial link serial 1 with terminal block connector and RS485 interface Non isolated serial link serial 2 with terminal block connector and RS232/RS485 interface Isolated serial link serial 2 with terminal block connector and RS485 interface
Discrete input voltage typeDC
Maximum voltage drop<1 V
Supply voltage limits20.4...28.8 V
Discrete input voltage24 V
Discrete output voltage24 V DC

All specifications

TM200C16T additional specifications
ParameterValue
Supply voltage24 V DC
Voltage state 0 guaranteed<= 5 V for input
Voltage state 1 guaranteed>= 15 V for input
Inrush current35 A
Discrete input current7 mA for input
Discrete output current0.5 A
Maximum leakage current0.1 mA for transistor output
Maximum current per output common3.5 A at COM 0
Power consumption in15.5 W at 24 V DC (with max I/O)
Output frequency100 kHz for fast output (PWM/PLS mode) at Q0...Q1
IP degree of protectionIP20 with protective cover in place
Communication port protocolUSB port: USB - SoMachine-Network Non isolated serial link: Modbus master/slave - RTU/ASCII or SoMachine-Network
Mounting supportTop hat type TH35-15 rail conforming to IEC 60715 Top hat type TH35-7.5 plate or panel with fixing kit conforming to IEC 60715
Electrical connectionMini B USB 2.0 connectorfor a programming terminal removable screw terminal blockfor inputs removable screw terminal blockfor outputs removable screw terminal block, 3 terminal(s) for connecting the 24 V DC power supply removable screw terminal block, 4 terminal(s) for connecting the serial link1
Maximum cable distance between devicesUnshielded cable: Shielded cable: Shielded cable: Unshielded cable: <150 m for output
Response time1 ms turn-on, Q0...Q6 terminal(s) for output 1 ms turn-off, Q0...Q7 terminal(s) for output 5 µs turn-off, I0, I1, I6, I7 terminal(s) for high speed input 5 µs turn-on, I0, I1, I6, I7 terminal(s) for high speed input 100 µs turn-off, I2...I5 terminal(s) for fast input 35 µs turn-on, I2...I5 terminal(s) for fast input 100 µs turn-off, I8 terminal(s) for regular input 35 µs turn-on, I8 terminal(s) for regular input
Pollution degree<= 2
Shock resistance15 gn for 11 ms 30 gn for 6 ms
Storage altitude0...3000 m
Relative humidity10...95 %, without condensation (in operation) 10...95 %, without condensation (in storage)
Operating altitude0...2000 m
Vibration resistance3.5 mm at 5...8.4 Hz on symmetrical rail 1 gn at 8.4...150 Hz on symmetrical rail 3.5 mm at 5...8.7 Hz on panel mounting 2 gn at 8.7...150 Hz on panel mounting
Depth70 mm
Width110 mm
Height90 mm
StandardsIEC 61131-2 IEC 61010-2-201
MarkingCE
InsulationNon-insulated between inputs Between input and internal logic at 500 V AC Between fast input and internal logic at 500 V AC Between input groups at 500 V AC Between output and internal logic at 500 V AC Between output groups at 500 V AC Between supply and internal logic at 500 V DC
Reset time1 s automatic reset
Backup time3 years at 25 °C (by interruption of power supply)
Clock drift<= 90 s/month at 25 °C
Input impedance3.3 kOhm for discrete input
Memory capacity512 byte internal flash for backup of programs
Regulation loopAdjustable PID regulator up to 14 simultaneous loops
Local signalling1 LED (green) for PWR 1 LED (green) for RUN 1 LED (red) for module error (ERR) 1 LED (green) for SD card access (SD) 1 LED (red) for BAT 1 LED (green) for SL1 1 LED per channel (green) for I/O state
Transmission rate1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 15 m for RS485 1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 3 m for RS232 12 Mbit/s for USB
Discrete i (O number)16
Discrete input logicSink or source (positive/negative) type 1 conforming to IEC 61131-2
Counting input number4 fast input (HSC mode) at 100 kHz 32 bits
Discrete input numberI8: 1 regular input I2...I5: 4 fast input I0, I1, I6, I7: 4 high speed input
Discrete output logicPositive logic (source)
Maximum tungsten load<12 W for output and fast output
Positioning functionsPWM/PLS 2 channel(s) at 100 kHz
Data storage equipment32 GB micro SD card (optional)
Discrete output numberQ2...Q6: 5 transistor output Q0...Q1: 2 fast output (PLS/PWM/PTO mode)
Immunity to microbreaks2 ms
Exct time for event task60 µs response time
Configurable filtering time0 ms for input 3 ms for input 12 ms for input
Electromagnetic compatibilityElectrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to IEC 61000-4-2 Electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2 Susceptibility to electromagnetic fields - test level: 10 V/m (80 MHz...3 GHz) conforming to IEC 61000-4-3 Magnetic field at power frequency - test level: 30 A/m conforming to IEC 61000-4-8 Electrical fast transient/burst immunity test - test level: 2 kV (power lines) conforming to IEC 61000-4-4 Electrical fast transient/burst immunity test - test level: 2 kV (relay output) conforming to IEC 61000-4-4 Electrical fast transient/burst immunity test - test level: 1 kV (I/O) conforming to IEC 61000-4-4 Electrical fast transient/burst immunity test - test level: 1 kV (serial link) conforming to IEC 61000-4-4 1.2/50 µs shock waves immunity test - test level: 1 kV (power lines (DC)) conforming to IEC 61000-4-5 1.2/50 µs shock waves immunity test - test level: 2 kV (power lines (AC)) conforming to IEC 61000-4-5 1.2/50 µs shock waves immunity test - test level: 2 kV (relay output) conforming to IEC 61000-4-5 1.2/50 µs shock waves immunity test - test level: 1 kV (I/O) conforming to IEC 61000-4-5 1.2/50 µs shock waves immunity test - test level: 1 kV (shielded cable) conforming to IEC 61000-4-5 1.2/50 µs shock waves immunity test - test level: 0.5 kV (power lines (DC)) conforming to IEC 61000-4-5 1.2/50 µs shock waves immunity test - test level: 1 kV (power lines (AC)) conforming to IEC 61000-4-5 Conducted RF disturbances - test level: 10 V (0.15...80 MHz) conforming to IEC 61000-4-6 Conducted emission - test level: 79 dBμV/m QP/66 dBμV/m AV (power lines (AC)) conforming to IEC 55011 Conducted emission - test level: 73 dBμV/m QP/60 dBμV/m AV (power lines (AC)) conforming to IEC 55011 Radiated emission - test level: 40 dBμV/m QP class A (10 m) conforming to IEC 55011 Radiated emission - test level: 47 dBμV/m QP class A (10 m) conforming to IEC 55011
Execution time per instruction0.2 µs Boolean
Execution time for 1 KInstruction0.3 ms for event and periodic task
Ambient air temperature for storage-25...70 °C
Ambient air temperature for operation0...55 °C (horizontal installation)

Product details

The TM200C16T is a current-production 16-point logic controller in the Modicon M200 family, sized for small standalone machines or remote I/O nodes. Its 16 discrete I/O includes eight inputs (four high-speed at 100 kHz, four fast at 35 µs) and eight sourcing transistor outputs (two capable of PWM/PLS at 100 kHz).

PID and positioning

Built-in adjustable PID regulator handles up to 14 simultaneous loops, enough for temperature, pressure or flow trim on a small production cell. Two outputs support PWM or pulse-train positioning at 100 kHz, matched to the high-speed counter inputs for quadrature or pulse/direction encoder feedback.

Clock and program retention

The real-time clock drift stays under 90 s/month at 25 °C. A BR2032 lithium battery maintains the clock and program backup for up to three years without external power—useful for batch-dependent time stamps or scheduled start/stop cycles. The backup memory is 512 bytes of internal flash for program retention.

Standards and panel fit

Rated for pollution degree 2, the controller mounts on a standard TH35-15 or TH35-7.5 DIN rail (panel mount with optional kit). Dimensions 90 x 110 x 70 mm (H x W x D). Complies with IEC 61131-2 and IEC 61010-2-201; CE marked.

This is a current-production part—no end-of-life concerns for new designs.

Frequently asked questions

What are the key I/O specifications?

16 discrete I/O, including 8 inputs (4 high-speed at 100 kHz, 4 fast at 35 µs) and 8 transistor sourcing outputs (2 high-speed PWM/PLS at 100 kHz).

What compliance standards does it meet?

CE marked, complies with IEC 61131-2 and IEC 61010-2-201.

What is the physical size?

90 mm height, 110 mm width, 70 mm depth.

Does it have a real-time clock with battery backup?

Yes, clock drift ≤90 s/month at 25 °C, with a BR2032 battery maintaining program and clock backup for up to 3 years at 25 °C.
