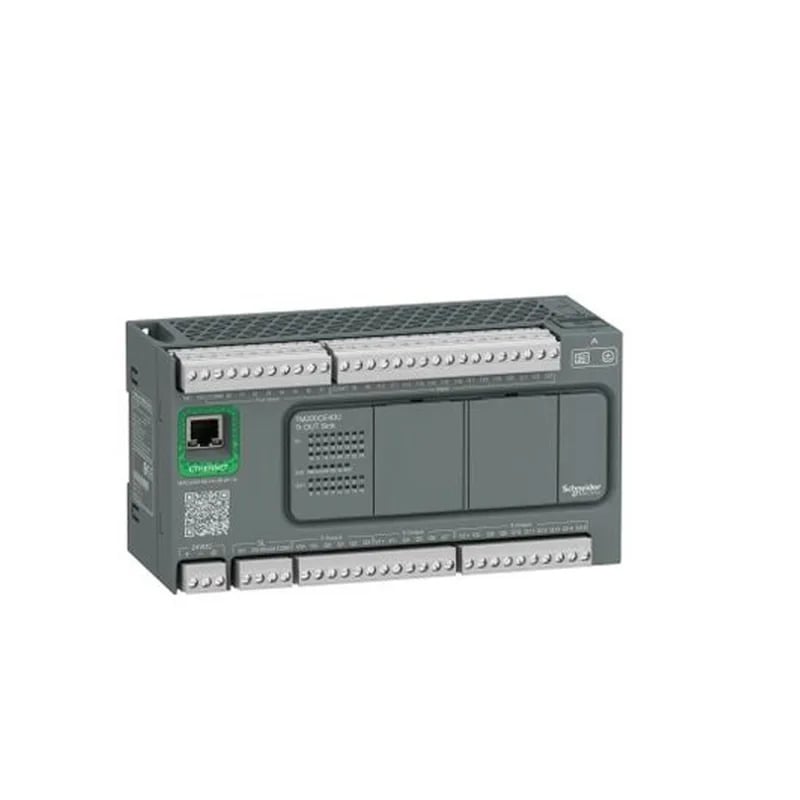

Schneider Electric TM200CE24R

Schneider TM200CE24R Modicon M200, 100 kHz HSC, PID

MPNTM200CE24R
Active

Schneider Electric Modicon M200 logic controller TM200CE24R, 24 discrete I/O, relay output, 100 kHz HSC, Ethernet Modbus TCP, 14-loop PID.

$221.00Ref. price · indicative, final on quote
Schneider Electric TM200CE24R datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

TM200CE24R key specifications
ParameterValue
Battery typeBR2032 Li-CFx (Lithium-Carbon Monofluoride), battery life: 5 year(s)
Range of productEasy Modicon M200
Control signal typeQuadrature (x1, x2, x4) at 100 kHz for fast input (HSC mode) Pulse/direction at 100 kHz for fast input (HSC mode) Single phase at 100 kHz for fast input (HSC mode) CW/CCW at 100 kHz for fast input (HSC mode)
Discrete output typeRelay normally open
Product or component typeLogic controller
Integrated connection typeUSB port with mini B USB 2.0 connector Non isolated serial link serial 1 with terminal block connector and RS485 interface Non isolated serial link serial 2 with terminal block connector and RS232/RS485 interface Ethernet Modbus TCP/IP Ethernet with RJ45 connector and 1 Ethernet port 10/100BASE-T interface Isolated serial link serial 2 with terminal block connector and RS485 interface
Discrete input voltage typeDC
Output voltage limits30 V DC 250 V AC
Supply voltage limits85...264 V
Discrete input voltage24 V
Discrete output voltage24 V DC 220 V AC
Supply voltage100...240 V AC

All specifications

TM200CE24R additional specifications
ParameterValue
Voltage state 0 guaranteed<= 5 V for input
Voltage state 1 guaranteed>= 15 V for input
Inrush current50 A
Discrete input current7 mA for input
Discrete output current2 A
Maximum current per output common4 A at COM 2 4 A at COM 0 4 A at COM 1
Sensor power supply24 V DC at 250 mA supplied by the controller
Power consumption in52...64 VA at 100...240 V AC (with max I/O)
Network frequency50/60 Hz
Switching frequency0.1 Hz with maximum load
IP degree of protectionIP20 with protective cover in place
Communication port protocolUSB port: USB - SoMachine-Network Non isolated serial link: Modbus master/slave - RTU/ASCII or SoMachine-Network Ethernet Modbus TCP/IP: Modbus TCP/IP client/server
Mounting supportTop hat type TH35-15 rail conforming to IEC 60715 Top hat type TH35-7.5 plate or panel with fixing kit conforming to IEC 60715
Electrical connectionMini B USB 2.0 connectorfor a programming terminal RJ45 connectorfor connecting Ethernet network removable screw terminal blockfor inputs removable screw terminal blockfor outputs removable screw terminal block, 4 terminal(s) for connecting the serial link1 removable screw terminal block, 3 terminal(s) for connecting the 100-240 V AC power supply
Maximum cable distance between devicesUnshielded cable: Shielded cable: Shielded cable: Unshielded cable: <150 m for output
Response time5 µs turn-off, I0, I1, I6, I7 terminal(s) for high speed input 5 µs turn-on, I0, I1, I6, I7 terminal(s) for high speed input 100 µs turn-off, I2...I5 terminal(s) for fast input 35 µs turn-on, I2...I5 terminal(s) for fast input 10 ms turn-off, Q0...Q9 terminal(s) for relay output 10 ms turn-on, Q0...Q9 terminal(s) for relay output 100 µs turn-off, I8...I13 terminal(s) for regular input 35 µs turn-on, I8...I13 terminal(s) for regular input
Pollution degree<= 2
Shock resistance15 gn for 11 ms 30 gn for 6 ms
Storage altitude0...3000 m
Relative humidity10...95 %, without condensation (in operation) 10...95 %, without condensation (in storage)
Operating altitude0...2000 m
Vibration resistance3.5 mm at 5...8.4 Hz on symmetrical rail 1 gn at 8.4...150 Hz on symmetrical rail 3.5 mm at 5...8.7 Hz on panel mounting 2 gn at 8.7...150 Hz on panel mounting
Depth70 mm
Width130 mm
Height90 mm
Electrical durability100000 cycles AC-12, 240 V, 480 VA, resistive 100000 cycles DC-12, 24 V, 48 W, resistive
Mechanical durability20000000 cycles for relay output
StandardsIEC 61010-2-201 IEC 61131-2
MarkingCE
InsulationNon-insulated between inputs Between output and internal logic at 1780 V AC Between output groups at 1780 V AC Between supply and internal logic at 1780 V AC Between input and internal logic at 500 V AC Between fast input and internal logic at 500 V AC Between input groups at 500 V AC
Backup time3 years at 25 °C (by interruption of power supply)
Clock drift<= 90 s/month at 25 °C
Minimum load10 mA at 5 V DC for relay output
Input impedance3.3 kOhm for discrete input
Memory capacity512 byte internal flash for backup of programs
Regulation loopAdjustable PID regulator up to 14 simultaneous loops
Local signalling1 LED (green) for PWR 1 LED (green) for RUN 1 LED (red) for module error (ERR) 1 LED (green) for SD card access (SD) 1 LED (red) for BAT 1 LED (green) for SL1 1 LED per channel (green) for I/O state 2 LEDs (green) for communication (LK/ACT 10/100)
Transmission rate1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 15 m for RS485 1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 3 m for RS232 12 Mbit/s for USB 10/100 Mbit/s for bus length of 100 m for Ethernet Modbus TCP/IP
Discrete i (O number)24
Discrete input logicSink or source (positive/negative) type 1 conforming to IEC 61131-2
Counting input number4 fast input (HSC mode) at 100 kHz 32 bits
Discrete input numberI2...I5: 4 fast input I0, I1, I6, I7: 4 high speed input I8...I13: 6 regular input
Data storage equipment32 GB micro SD card (optional)
Discrete output number10 relay
Immunity to microbreaks10 ms
Exct time for event task60 µs response time
Configurable filtering time0 ms for input 3 ms for input 12 ms for input
Electromagnetic compatibilityElectrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to IEC 61000-4-2 Electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2 Susceptibility to electromagnetic fields - test level: 10 V/m (80 MHz...3 GHz) conforming to IEC 61000-4-3 Magnetic field at power frequency - test level: 30 A/m conforming to IEC 61000-4-8 Electrical fast transient/burst immunity test - test level: 2 kV (power lines) conforming to IEC 61000-4-4 Electrical fast transient/burst immunity test - test level: 2 kV (relay output) conforming to IEC 61000-4-4 Electrical fast transient/burst immunity test - test level: 1 kV (I/O) conforming to IEC 61000-4-4 Electrical fast transient/burst immunity test - test level: 1 kV (serial link) conforming to IEC 61000-4-4 1.2/50 µs shock waves immunity test - test level: 1 kV (power lines (DC)) conforming to IEC 61000-4-5 1.2/50 µs shock waves immunity test - test level: 2 kV (power lines (AC)) conforming to IEC 61000-4-5 1.2/50 µs shock waves immunity test - test level: 2 kV (relay output) conforming to IEC 61000-4-5 1.2/50 µs shock waves immunity test - test level: 1 kV (I/O) conforming to IEC 61000-4-5 1.2/50 µs shock waves immunity test - test level: 1 kV (shielded cable) conforming to IEC 61000-4-5 1.2/50 µs shock waves immunity test - test level: 0.5 kV (power lines (DC)) conforming to IEC 61000-4-5 1.2/50 µs shock waves immunity test - test level: 1 kV (power lines (AC)) conforming to IEC 61000-4-5 Conducted RF disturbances - test level: 10 V (0.15...80 MHz) conforming to IEC 61000-4-6 Conducted emission - test level: 79 dBμV/m QP/66 dBμV/m AV (power lines (AC)) conforming to IEC 55011 Conducted emission - test level: 73 dBμV/m QP/60 dBμV/m AV (power lines (AC)) conforming to IEC 55011 Radiated emission - test level: 40 dBμV/m QP class A (10 m) conforming to IEC 55011 Radiated emission - test level: 47 dBμV/m QP class A (10 m) conforming to IEC 55011 Electrical fast transient/burst immunity test - test level: 1 kV (Ethernet line) conforming to IEC 61000-4-4
Execution time per instruction0.2 µs Boolean
Execution time for 1 KInstruction0.3 ms for event and periodic task
Ambient air temperature for storage-25...70 °C
Ambient air temperature for operation0...55 °C (horizontal installation)

Product details

Controller that earns the panel slot

The Schneider TM200CE24R is a Modicon M200 logic controller with 24 discrete I/O, relay outputs, and 100 kHz high-speed counting—ready for packaging or material handling where Ethernet and PID are on the same chassis. Four high-speed inputs and four fast inputs handle quadrature, pulse/direction, and single-phase encoders; the 14-loop PID runs independently of the scan cycle, so pressure or temperature loops don't eat scan time. Ethernet Modbus TCP at 10/100 Mbit/s, RS485 at up to 115.2 kbit/s, and a mini-B USB port for programming. The removable screw terminals stay in the cabinet while the controller is swapped. Runs on 85...264 V AC supply; sensor power is 24 V DC at 250 mA from the internal supply.

Lifecycle and sourcing — current and quoted

We quote to RFQ against your order quantity. Compliance documentation packs (CE, IEC 61010-2-201, IEC 61131-2) are available with the shipment.

DIN-rail fit and wiring notes

Width 130 mm, depth 70 mm, height 90 mm. Mounts on TH35-15 or TH35-7.5 rail per IEC 60715; panel-mount kit also available. Two rows of removable screw terminals—inputs top, outputs bottom—keep the wire dress clean. Relay outputs are normally open, rated 250 V AC / 30 V DC, 10 mA minimum load. Mechanical durability 20000000 cycles; electrical durability 100000 cycles at AC-12 resistive. Inputs accept sink or source, Type 1 per IEC 61131-2. Impedance 3.3 kOhm. Response times: high-speed inputs 5 µs turn-on/off; fast inputs 35 µs turn-on, 100 µs turn-off; regular inputs 35 µs turn-on, 100 µs turn-off.

Frequently asked questions

What compliance documentation is available?

The controller carries CE marking and complies with IEC 61010-2-201 and IEC 61131-2. Documentation is provided with the unit.
