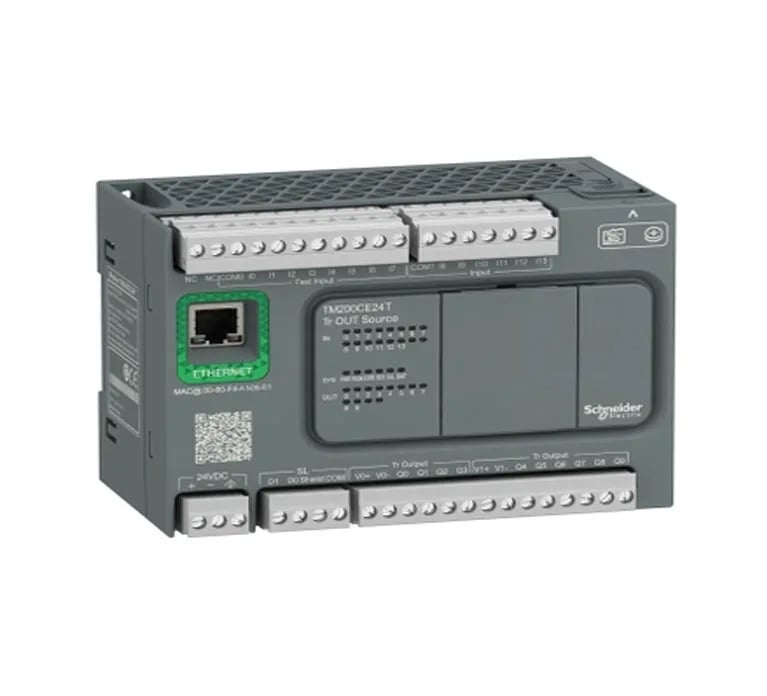

Schneider Electric TM200CE24T

Schneider TM200CE24T Easy Modicon M200, 24 I/O PLC

MPNTM200CE24T
Active

Schneider Electric Easy Modicon M200 logic controller, TM200CE24T, 24 discrete I/O (transistor outputs), 100 kHz high-speed inputs, 14 PID loops, 3-year clock backup, RS232/485/Ethernet Modbus TCP.

$179.00Ref. price · indicative, final on quote
Schneider Electric TM200CE24T datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

TM200CE24T key specifications
ParameterValue
Battery typeBR2032 Li-CFx (Lithium-Carbon Monofluoride), battery life: 5 year(s)
Protection typeOverload and short-circuit protection at 2 A
Range of productEasy Modicon M200
Control signal typeQuadrature (x1, x2, x4) at 100 kHz for fast input (HSC mode) Pulse/direction at 100 kHz for fast input (HSC mode) Single phase at 100 kHz for fast input (HSC mode) CW/CCW at 100 kHz for fast input (HSC mode)
Discrete output typeTransistor
Product or component typeLogic controller
Integrated connection typeUSB port with mini B USB 2.0 connector Non isolated serial link serial 1 with terminal block connector and RS485 interface Non isolated serial link serial 2 with terminal block connector and RS232/RS485 interface Ethernet Modbus TCP/IP Ethernet with RJ45 connector and 1 Ethernet port 10/100BASE-T interface Isolated serial link serial 2 with terminal block connector and RS485 interface
Discrete input voltage typeDC
Maximum voltage drop<1 V
Supply voltage limits20.4...28.8 V
Discrete input voltage24 V
Discrete output voltage24 V DC

All specifications

TM200CE24T additional specifications
ParameterValue
Supply voltage24 V DC
Voltage state 0 guaranteed<= 5 V for input
Voltage state 1 guaranteed>= 15 V for input
Inrush current35 A
Discrete input current7 mA for input
Discrete output current0.5 A
Maximum leakage current0.1 mA for transistor output
Maximum current per output common2 A at COM 0 3 A at COM 1
Power consumption in16 W at 24 V DC (with max I/O)
Output frequency100 kHz for fast output (PWM/PLS mode) at Q0...Q1
IP degree of protectionIP20 with protective cover in place
Communication port protocolUSB port: USB - SoMachine-Network Non isolated serial link: Modbus master/slave - RTU/ASCII or SoMachine-Network Ethernet Modbus TCP/IP: Modbus TCP/IP client/server
Mounting supportTop hat type TH35-15 rail conforming to IEC 60715 Top hat type TH35-7.5 plate or panel with fixing kit conforming to IEC 60715
Electrical connectionMini B USB 2.0 connectorfor a programming terminal RJ45 connectorfor connecting Ethernet network removable screw terminal blockfor inputs removable screw terminal blockfor outputs removable screw terminal block, 3 terminal(s) for connecting the 24 V DC power supply removable screw terminal block, 4 terminal(s) for connecting the serial link1
Maximum cable distance between devicesUnshielded cable: Shielded cable: Shielded cable: Unshielded cable: <150 m for output
Response time1 ms turn-on, Q0...Q9 terminal(s) for output 1 ms turn-off, Q0...Q9 terminal(s) for output 5 µs turn-off, I0, I1, I6, I7 terminal(s) for high speed input 5 µs turn-on, I0, I1, I6, I7 terminal(s) for high speed input 100 µs turn-off, I2...I5 terminal(s) for fast input 35 µs turn-on, I2...I5 terminal(s) for fast input 100 µs turn-off, I8...I13 terminal(s) for regular input 35 µs turn-on, I8...I13 terminal(s) for regular input
Pollution degree<= 2
Shock resistance15 gn for 11 ms 30 gn for 6 ms
Storage altitude0...3000 m
Relative humidity10...95 %, without condensation (in operation) 10...95 %, without condensation (in storage)
Operating altitude0...2000 m
Vibration resistance3.5 mm at 5...8.4 Hz on symmetrical rail 1 gn at 8.4...150 Hz on symmetrical rail 3.5 mm at 5...8.7 Hz on panel mounting 2 gn at 8.7...150 Hz on panel mounting
Depth70 mm
Width130 mm
Height90 mm
StandardsIEC 61131-2 IEC 61010-2-201
MarkingCE
InsulationNon-insulated between inputs Between input and internal logic at 500 V AC Between fast input and internal logic at 500 V AC Between input groups at 500 V AC Between output and internal logic at 500 V AC Between output groups at 500 V AC Between supply and internal logic at 500 V DC
Reset time1 s automatic reset
Backup time3 years at 25 °C (by interruption of power supply)
Clock drift<= 90 s/month at 25 °C
Input impedance3.3 kOhm for discrete input
Memory capacity512 byte internal flash for backup of programs
Regulation loopAdjustable PID regulator up to 14 simultaneous loops
Local signalling1 LED (green) for PWR 1 LED (green) for RUN 1 LED (red) for module error (ERR) 1 LED (green) for SD card access (SD) 1 LED (red) for BAT 1 LED (green) for SL1 1 LED per channel (green) for I/O state 2 LEDs (green) for communication (LK/ACT 10/100)
Transmission rate1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 15 m for RS485 1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 3 m for RS232 12 Mbit/s for USB 10/100 Mbit/s for bus length of 100 m for Ethernet Modbus TCP/IP
Discrete i (O number)24
Discrete input logicSink or source (positive/negative) type 1 conforming to IEC 61131-2
Counting input number4 fast input (HSC mode) at 100 kHz 32 bits
Discrete input numberI2...I5: 4 fast input I0, I1, I6, I7: 4 high speed input I8...I13: 6 regular input
Discrete output logicPositive logic (source)
Maximum tungsten load<12 W for output and fast output
Positioning functionsPWM/PLS 2 channel(s) at 100 kHz
Data storage equipment32 GB micro SD card (optional)
Discrete output numberQ0...Q1: 2 fast output (PLS/PWM/PTO mode) Q2...Q9: 8 transistor output
Immunity to microbreaks2 ms
Exct time for event task60 µs response time
Configurable filtering time0 ms for input 3 ms for input 12 ms for input
Electromagnetic compatibilityElectrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to IEC 61000-4-2 Electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2 Susceptibility to electromagnetic fields - test level: 10 V/m (80 MHz...3 GHz) conforming to IEC 61000-4-3 Magnetic field at power frequency - test level: 30 A/m conforming to IEC 61000-4-8 Electrical fast transient/burst immunity test - test level: 2 kV (power lines) conforming to IEC 61000-4-4 Electrical fast transient/burst immunity test - test level: 2 kV (relay output) conforming to IEC 61000-4-4 Electrical fast transient/burst immunity test - test level: 1 kV (I/O) conforming to IEC 61000-4-4 Electrical fast transient/burst immunity test - test level: 1 kV (serial link) conforming to IEC 61000-4-4 1.2/50 µs shock waves immunity test - test level: 1 kV (power lines (DC)) conforming to IEC 61000-4-5 1.2/50 µs shock waves immunity test - test level: 2 kV (power lines (AC)) conforming to IEC 61000-4-5 1.2/50 µs shock waves immunity test - test level: 2 kV (relay output) conforming to IEC 61000-4-5 1.2/50 µs shock waves immunity test - test level: 1 kV (I/O) conforming to IEC 61000-4-5 1.2/50 µs shock waves immunity test - test level: 1 kV (shielded cable) conforming to IEC 61000-4-5 1.2/50 µs shock waves immunity test - test level: 0.5 kV (power lines (DC)) conforming to IEC 61000-4-5 1.2/50 µs shock waves immunity test - test level: 1 kV (power lines (AC)) conforming to IEC 61000-4-5 Conducted RF disturbances - test level: 10 V (0.15...80 MHz) conforming to IEC 61000-4-6 Conducted emission - test level: 79 dBμV/m QP/66 dBμV/m AV (power lines (AC)) conforming to IEC 55011 Conducted emission - test level: 73 dBμV/m QP/60 dBμV/m AV (power lines (AC)) conforming to IEC 55011 Radiated emission - test level: 40 dBμV/m QP class A (10 m) conforming to IEC 55011 Radiated emission - test level: 47 dBμV/m QP class A (10 m) conforming to IEC 55011 Electrical fast transient/burst immunity test - test level: 1 kV (Ethernet line) conforming to IEC 61000-4-4
Execution time per instruction0.2 µs Boolean
Execution time for 1 KInstruction0.3 ms for event and periodic task
Ambient air temperature for storage-25...70 °C
Ambient air temperature for operation0...55 °C (horizontal installation)

Product details

The TM200CE24T carries four high-speed inputs (I0, I1, I6, I7) with 5 µs turn-on and 5 µs turn-off, plus four fast inputs (I2 to I5) at 35 µs/100 µs. Those numbers govern how tight an encoder or proximity pulse you can capture without missing edges. For regular inputs I8–I13, turn-on is 35 µs, turn-off 100 µs — fine for pushbuttons or limit switches but not for sub-millisecond events. Output response on Q0–Q9 is 1 ms on and off; for the high-speed PWM/PLS channels Q0–Q1 the switching frequency goes to 100 kHz, so you can generate a clean pulse train for a stepper driver or a PWM valve signal directly from the controller. The high-speed counter modes — single phase, pulse/direction, quadrature (x1, x2, x4), CW/CCW — all run at 100 kHz. That covers most incremental encoders up to a few thousand RPM without an external counting module. Watch the input wiring: the sink/source type 1 per IEC 61131-2 is configurable per group, so you can mix NPN and PNP sensors on the same terminal block.

PID loops and battery-backed clock

Fourteen simultaneous PID loops are available via the instruction set — more than enough for a water-treatment skid or packaging machine's temperature/pressure zones. Adjustable PID with auto-tune is standard in the programming software. The real-world constraint is scan time: with 14 fast loops plus HSC and communications, keep the main program under a few hundred steps or risk cycle elongation. The real-time clock holds for three years at 25 °C on the BR2032 battery. Clock drift is ≤ 90 s/month at 25 °C — fine for time-stamping batches but not for time-critical synchronization (use NTP over Ethernet if you need better than a few seconds per month). The battery is field-replaceable; expect to swap it every 5 years or after extended de-energized storage.

Mounting, connection, and environmental ratings

Mounts on TH35-15 or TH35-7.5 DIN rail or panel. Dimensions: 130 mm wide, 90 mm high, 70 mm deep. Connections: screw terminals for power, I/O, serial; RJ45 Ethernet; Mini-B USB. Vibration resistance reaches 3.5 mm up to 8.4 Hz and 1 gn to 150 Hz on the rail; shock tested at 15 gn for 11 ms. Non-insulated between input groups, but 500 V AC isolation between input and internal logic, and between output and logic. Overload and short-circuit protection on outputs kicks in at 2 A.

Production status is current per the lifecycle record. CE marking, IEC 61131-2 and IEC 61010-2-201 compliance documentation available. Request declarations with your RFQ.

Frequently asked questions

What compliance standards does the TM200CE24T meet?

It carries CE marking and conforms to IEC 61131-2 (PLC standard) and IEC 61010-2-201 (safety requirements for control equipment).

What is the controller's mounting and footprint?

Width 130 mm, height 90 mm, depth 70 mm. Mounts on TH35 DIN rail (TH35-15 or TH35-7.5) per IEC 60715, or on a panel with a fixing kit.
