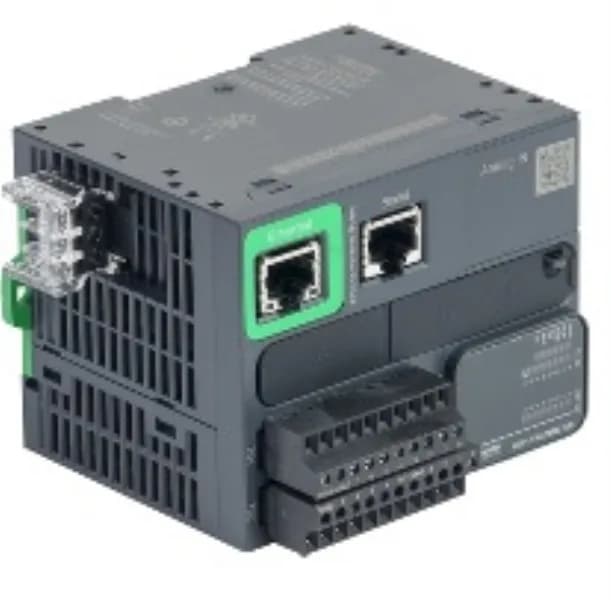

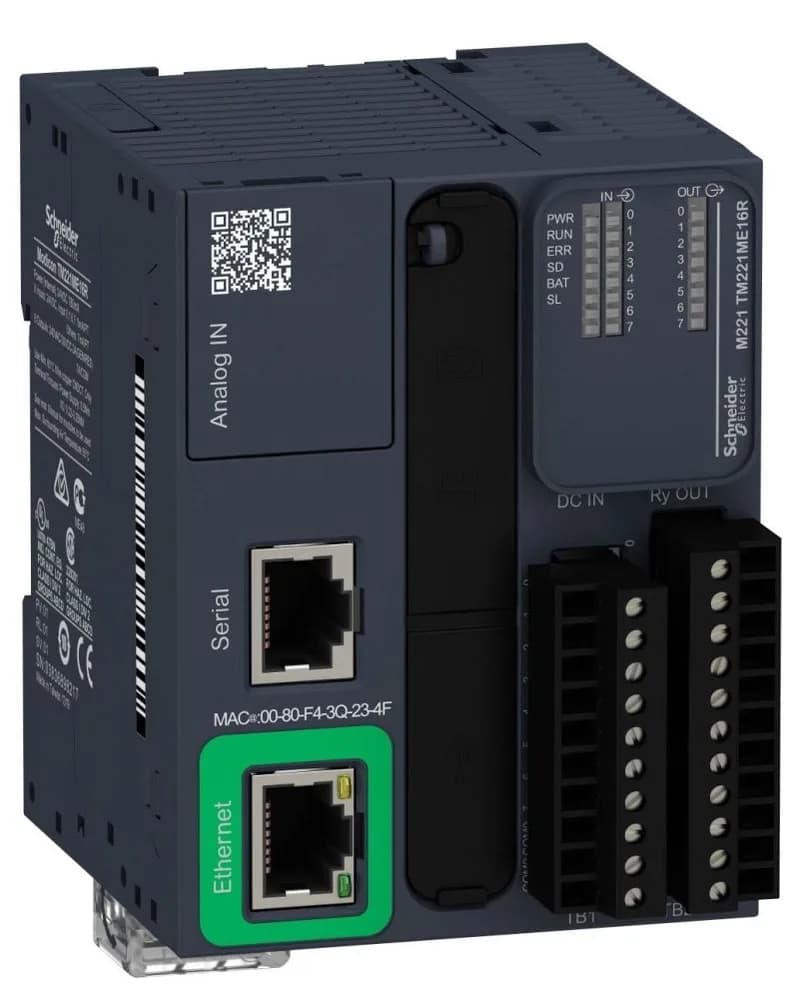

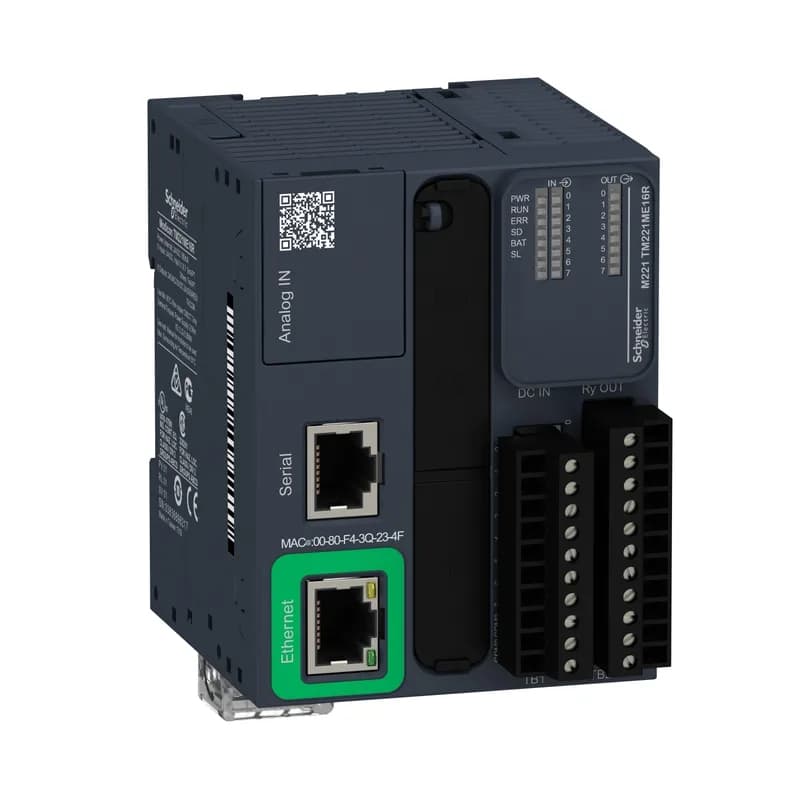

Schneider TM221ME16R Modicon M221 PLC, 8 relay outputs, 24 V

Name: TM221ME16R
Brand: Schneider Electric
SKU: TM221ME16R
Availability: LimitedAvailability

MPNTM221ME16R

Active

Schneider TM221ME16R Industrial Computer Board.

$223.52 – $497.00Ref. price · indicative, final on quote

Request quote

Schneider Electric TM221ME16R datasheet (PDF)

StockContact for availability

MOQ1 pcs

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

How we verify every order →

Specifications

TM221ME16R key specifications
Parameter	Value
Battery type	BR2032 or CR2032X lithium non-rechargeable
Protection type	Without protection 5 A
Range of product	Modicon M221
Discrete output type	Relay normally open
Product or component type	Logic controller
Integrated connection type	USB port mini B USB 2.0 Non isolated serial link serial 1 RJ45 RS232/RS485 Ethernet RJ45
Discrete input voltage type	DC
Surge withstand	2 kV power lines (AC) common mode IEC 61000-4-5 2 kV relay output common mode IEC 61000-4-5 1 kV I/O common mode IEC 61000-4-5 1 kV shielded cable common mode IEC 61000-4-5 0.5 kV power lines (DC) differential mode IEC 61000-4-5 1 kV power lines (AC) differential mode IEC 61000-4-5 1 kV relay output differential mode IEC 61000-4-5 0.5 kV power lines (DC) common mode IEC 61000-4-5
Output voltage limits	125 V DC 277 V AC
Supply voltage limits	20.4...28.8 V
Discrete input voltage	24 V
Discrete output voltage	5...125 V DC 5...250 V AC

All specifications

TM221ME16R additional specifications
Parameter	Value
Supply voltage	24 V DC
Voltage state 0 guaranteed	<= 5 V input
Voltage state 1 guaranteed	>= 15 V input
Inrush current	35 A
Discrete input current	7 mA discrete input 5 mA fast input
Discrete output current	2 A
Power supply output current	0.52 A 5 V expansion bus 0.46 A 24 V expansion bus
Maximum current per output common	7 A
Maximum power consumption in	23.3 W 24 V with max number of I/O expansion module) 4.3 W 24 V without I/O expansion module)
Switching frequency	20 switching operations/minute with maximum load
IP degree of protection	IP20 with protective cover in place
Communication service	DHCP client Modbus TCP slave device Ethernet/IP adapter Modbus TCP client Modbus TCP server
Communication port protocol	USB port USB - SoMachine-Network Non isolated serial link Modbus master/slave - RTU/ASCII or SoMachine-Network Ethernet
Mounting support	Top hat type TH35-15 rail IEC 60715 Top hat type TH35-7.5 rail IEC 60715 plate or panel with fixing kit
Electrical connection	terminal block, 3 for connecting the 24 V DC power supply connector, 4 for analogue inputs Mini B USB 2.0 connector for a programming terminal removable screw terminal block, 10 for inputs removable screw terminal block, 11 for outputs
Maximum cable distance between devices	Shielded cable Unshielded cable Unshielded cable Unshielded cable Shielded cable <9.8 ft (3 m) fast output
Response time	35 µs turn-off, I2...I5 input 5 µs turn-on, I0, I1, I6, I7 fast input 35 µs turn-on, other terminals input 5 µs turn-off, I0, I1, I6, I7 fast input 100 µs turn-off, other terminals input 5 µs turn-on, turn-off, Q0...Q1 output 50 µs turn-on, turn-off, Q2...Q3 output 300 µs turn-on, turn-off, other terminals output
Pollution degree	<= 2
Shock resistance	98 m/s² 11 ms
Storage altitude	0...9842.5 ft (0...3000 m)
Relative humidity	10...95 %, without condensation in operation) 10...95 %, without condensation in storage)
Operating altitude	0...6561.68 ft (0...2000 m)
Vibration resistance	3.5 mm 5...8.4 Hz symmetrical rail 3.5 mm 5...8.4 Hz panel mounting 1 gn 8.4...150 Hz symmetrical rail 1 gn 8.4...150 Hz panel mounting
Depth	2.8 in (70 mm)
Width	2.8 in (70 mm)
Height	3.5 in (90 mm)
Electrical durability	100000 cycles AC-12, 120 V, 240 VA, resistive 100000 cycles AC-12, 240 V, 480 VA, resistive 300000 cycles AC-12, 120 V, 80 VA, resistive 300000 cycles AC-12, 240 V, 160 VA, resistive 100000 cycles AC-15, cos phi = 0.35, 120 V, 60 VA, inductive 100000 cycles AC-15, cos phi = 0.35, 240 V, 120 VA, inductive 300000 cycles AC-15, cos phi = 0.35, 120 V, 18 VA, inductive 300000 cycles AC-15, cos phi = 0.35, 240 V, 36 VA, inductive 100000 cycles AC-14, cos phi = 0.7, 120 V, 120 VA, inductive 100000 cycles AC-14, cos phi = 0.7, 240 V, 240 VA, inductive 300000 cycles AC-14, cos phi = 0.7, 120 V, 36 VA, inductive 300000 cycles AC-14, cos phi = 0.7, 240 V, 72 VA, inductive 100000 cycles DC-12, 24 V, 48 W, resistive 300000 cycles DC-12, 24 V, 16 W, resistive 100000 cycles DC-13, 24 V, 24 W, inductive (L/R = 7 ms) 300000 cycles DC-13, 24 V, 7.2 W, inductive (L/R = 7 ms)
Mechanical durability	20000000 cycles relay output
Standards	IEC 61131-2 UL 508 CAN/CSA C22.2 No. 213 IACS E10 ANSI/ISA 12-12-01
Supply	Serial 1)serial link supply 5 V, <200 mA
Marking	CE
Category	US10MSX22533
LSB value	10 mV
Insulation	Between input and internal logic 500 V AC Between fast input and internal logic 500 V AC Non-insulated between inputs Between output and internal logic 500 V AC Between output groups 500 V AC Non-insulated between analogue input and internal logic Non-insulated between analogue inputs
Reset time	1 s
Backup time	1 year 77 °F (25 °C) by interruption of power supply)
Clock drift	<= 30 s/month 77 °F (25 °C)
Minimum load	1 mA 5 V DC relay output
Port ethernet	10BASE-T/100BASE-TX 1 328.08 ft (100 m) copper cable
Data backed up	256 kB built-in flash memory backup of application and data
Realtime clock	With
Conversion time	1 ms per channel + 1 controller cycle time analog input
Input impedance	100 kOhm analog input 3.4 kOhm input 4.9 kOhm fast input
Memory capacity	256 kB user application and data RAM 10000 instructions 256 kB internal variables RAM
Regulation loop	Adjustable PID regulator up to 14 simultaneous loops
Counter function	Single phase A/B Pulse/direction
Local signalling	1 LED (green) for PWR 1 LED (green) for RUN 1 LED (red) for module error (ERR) 1 LED (green) for SD card access (SD) 1 LED (red) for BAT 1 LED per channel (green) for I/O state 1 LED (green) for SL Ethernet network activity (green) for ACT Ethernet network link (yellow) for Link (Link Status)
Transmission rate	1.2...115.2 kbit/s (115.2 kbit/s by default) 49.2 ft (15 m) RS485 1.2...115.2 kbit/s (115.2 kbit/s by default) 9.8 ft (3 m) RS232 480 Mbit/s USB
Function available	Frequency generator PWM PLS
Discrete i (O number)	16
Discrete input logic	Sink or source (positive/negative)
Analogue input number	2 0...10 V
Application structure	1 configurable freewheeling/cyclic master task 1 cyclic auxiliary task 8 interrupt tasks
Counting input number	4 fast input (HSC mode) 100 kHz 32 bits
Discrete input number	8, discrete input IEC 61131-2 Type 1
Data storage equipment	2 GB SD card optional)
Discrete output number	8 relay
Absolute accuracy error	+/- 1 % of full scale analog input
Immunity to microbreaks	10 ms
Electromagnetic emission	Conducted emissions 79 dBμV/m QP/66 dBμV/m AV power lines (AC))0.15...0.5 MHz IEC 55011 Conducted emissions 73 dBμV/m QP/60 dBμV/m AV power lines (AC))0.5...300 MHz IEC 55011 Conducted emissions 120...69 dBµV/m QP power lines)10...150 kHz IEC 55011 Conducted emissions 63 dBμV/m QP power lines)1.5...30 MHz IEC 55011 Radiated emissions 40 dBμV/m QP class A 10 m)30...230 MHz IEC 55011 Conducted emissions 79...63 dBμV/m QP power lines)150...1500 kHz IEC 55011 Radiated emissions 47 dBμV/m QP class A 10 m)200...1000 MHz IEC 55011
Exct time for event task	60 µs response time
Analogue input resolution	10 bits
Configurable filtering time	0 ms input 3 ms input 12 ms input
Environmental characteristic	Ordinary and hazardous location
Maximum size of object areas	512 %KW constant words 255 %C counters 8000 %MW memory words 255 %TM timers 512 %M memory bits
Permitted overload on inputs	+/- 30 V DC 5 min maximum)analog input +/- 13 V DC permanent)analog input
Resistance to fast transients	2 kV IEC 61000-4-4 power lines) 2 kV IEC 61000-4-4 relay output) 1 kV IEC 61000-4-4 I/O) 1 kV IEC 61000-4-4 Ethernet line) 1 kV IEC 61000-4-4 serial link)
Resistance to magnetic fields	98.4 A/m (30 A/m) 50/60 Hz IEC 61000-4-8
Execution time per instruction	0.2 µs Boolean
Execution time for 1 KInstruction	0.3 ms event and periodic task 0.7 ms other instruction
Ambient air temperature for storage	-13...158 °F (-25...70 °C)
Resistance to conducted disturbances	10 V 0.15...80 MHz IEC 61000-4-6 3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL) 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
Resistance to electromagnetic fields	9.1 V/m (10 V/m) 80 MHz...1 GHz IEC 61000-4-3 2.7 V/m (3 V/m) 1.4 GHz...2 GHz IEC 61000-4-3 0.9 V/m (1 V/m) 2...2.7 GHz IEC 61000-4-3
Ambient air temperature for operation	14...131 °F (-10...55 °C) horizontal installation) 14...95 °F (-10...35 °C) vertical installation)
Resistance to electrostatic discharge	8 kV in air IEC 61000-4-2 4 kV on contact IEC 61000-4-2

Product details

Overview

The TM221ME16R is a Schneider Modicon M221 PLC with 8 relay outputs rated 5...125 V DC and 5...250 V AC, 8 discrete inputs, and a 24 V supply. It carries CE and UL 508 marks and is sealed to IP20.

Sourcing and comparison

The TM221ME16RG is the closest functional peer, sharing the same I/O count and relay output type but differing in the serial link supply — the TM221ME16R draws <200 mA at 5 V on the serial link, while the TM221ME16RG uses a different supply scheme. Both are active catalogue parts; an RFQ confirms current lead time.

Compliance

The TM221ME16R is certified to IEC 61131-2, UL 508, CAN/CSA C22.2 No. 213, IACS, and ANSI/ISA 12-12-01. It carries CE marking and is listed under California Proposition 65.
