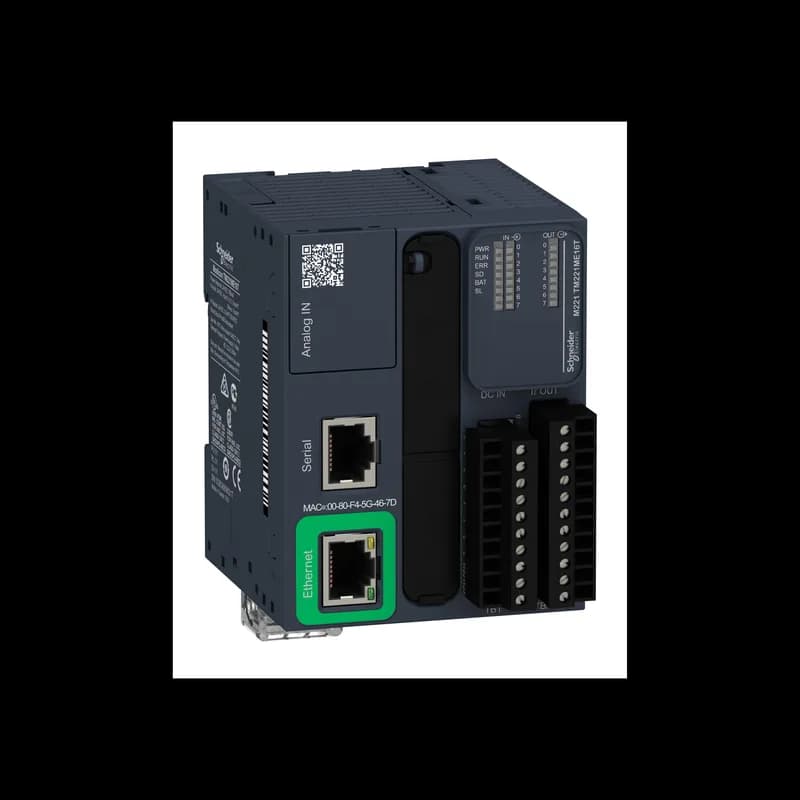

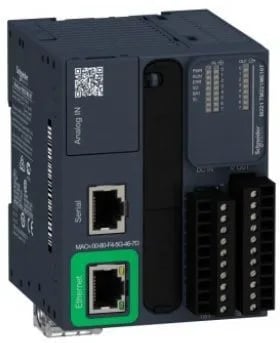

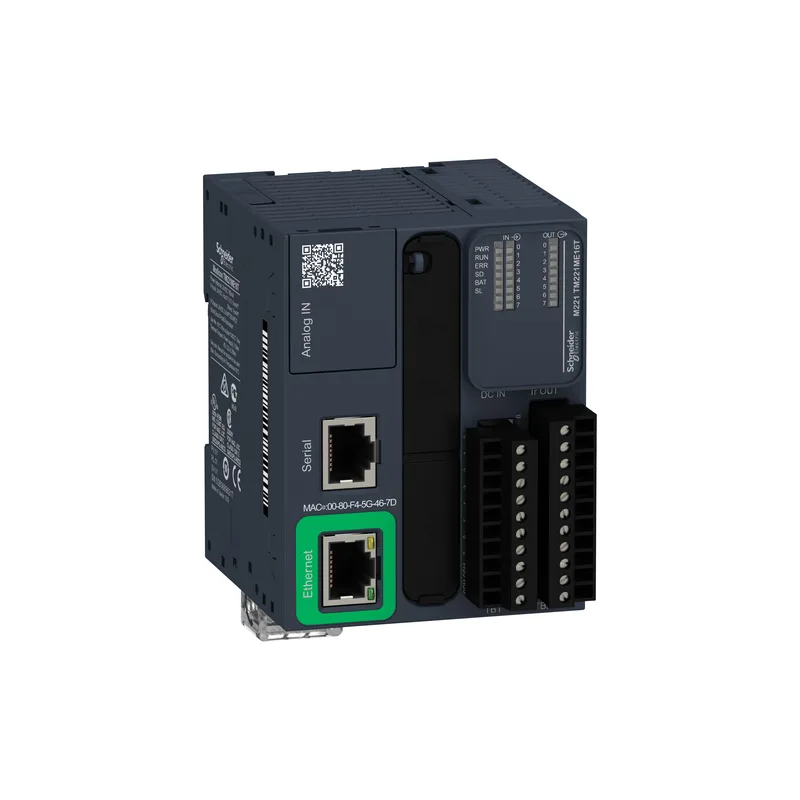

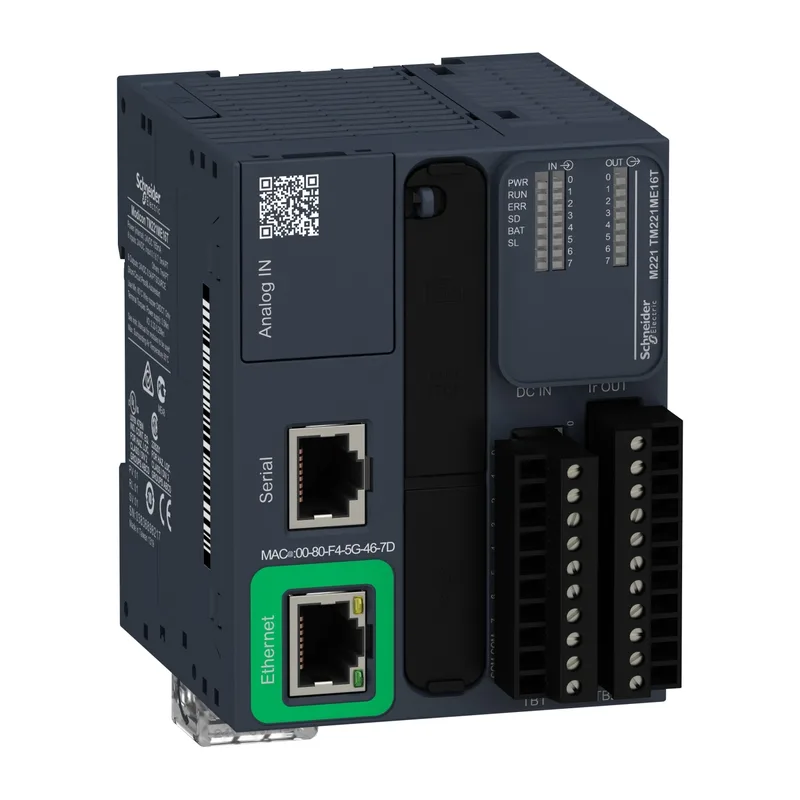

Schneider TM221ME16T Modicon M221 PLC, 16 I/O, transistor outputs

Name: TM221ME16T
Brand: Schneider Electric
SKU: TM221ME16T
Availability: LimitedAvailability

MPNTM221ME16T

Active

Schneider TM221ME16T Industrial Computer Board.

$204.47 – $475.38Ref. price · indicative, final on quote

Request quote

Schneider Electric TM221ME16T datasheet (PDF)

StockContact for availability

MOQ1 pcs

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

How we verify every order →

Specifications

TM221ME16T key specifications
Parameter	Value
Battery type	BR2032 or CR2032X lithium non-rechargeable
Protection type	Short-circuit and overload protection with automatic reset Short-circuit protection on output Overload and short-circuit protection 1 A
Range of product	Modicon M221
Discrete output type	Transistor
Product or component type	Logic controller
Integrated connection type	USB port mini B USB 2.0 Non isolated serial link serial 1 RJ45 RS232/RS485 Ethernet RJ45
Discrete input voltage type	DC
Surge withstand	2 kV power lines (AC) common mode IEC 61000-4-5 2 kV relay output common mode IEC 61000-4-5 1 kV I/O common mode IEC 61000-4-5 1 kV shielded cable common mode IEC 61000-4-5 0.5 kV power lines (DC) differential mode IEC 61000-4-5 1 kV power lines (AC) differential mode IEC 61000-4-5 1 kV relay output differential mode IEC 61000-4-5 0.5 kV power lines (DC) common mode IEC 61000-4-5
Maximum voltage drop	<1 V
Supply voltage limits	20.4...28.8 V
Discrete input voltage	24 V
Discrete output voltage	24 V DC

All specifications

TM221ME16T additional specifications
Parameter	Value
Supply voltage	24 V DC
Voltage state 0 guaranteed	<= 5 V input
Voltage state 1 guaranteed	>= 15 V input
Inrush current	35 A
Discrete input current	7 mA discrete input 5 mA fast input
Discrete output current	0.5 A
Maximum leakage current	0.1 mA transistor output
Power supply output current	0.52 A 5 V expansion bus 0.49 A 24 V expansion bus
Maximum current per output common	4 A
Maximum power consumption in	22.9 W 24 V with max number of I/O expansion module) 4 W 24 V without I/O expansion module)
Output frequency (sync to mains)	100 kHz fast output (PWM/PLS mode) Q0...Q1 5 kHz output Q2...Q3 0.1 kHz output Q4...Q6
IP degree of protection	IP20 with protective cover in place
Communication service	DHCP client Ethernet/IP adapter Modbus TCP server Modbus TCP slave device Modbus TCP client
Communication port protocol	USB port USB - SoMachine-Network Non isolated serial link Modbus master/slave - RTU/ASCII or SoMachine-Network Ethernet
Mounting support	Top hat type TH35-15 rail IEC 60715 Top hat type TH35-7.5 rail IEC 60715 plate or panel with fixing kit
Electrical connection	terminal block, 3 for connecting the 24 V DC power supply connector, 4 for analogue inputs Mini B USB 2.0 connector for a programming terminal removable screw terminal block, 10 for inputs removable screw terminal block, 11 for outputs
Maximum cable distance between devices	Shielded cable Unshielded cable Unshielded cable Unshielded cable Shielded cable <9.8 ft (3 m) fast output
Response time	35 µs turn-off, I2...I5 input 5 µs turn-on, I0, I1, I6, I7 fast input 35 µs turn-on, other terminals input 5 µs turn-off, I0, I1, I6, I7 fast input 100 µs turn-off, other terminals input 5 µs turn-on, turn-off, Q0...Q1 output 50 µs turn-on, turn-off, Q2...Q3 output 300 µs turn-on, turn-off, other terminals output
Pollution degree	<= 2
Shock resistance	147 m/s² 11 ms
Storage altitude	0...9842.5 ft (0...3000 m)
Relative humidity	10...95 %, without condensation in operation) 10...95 %, without condensation in storage)
Operating altitude	0...6561.68 ft (0...2000 m)
Vibration resistance	3.5 mm 5...8.4 Hz symmetrical rail 3.5 mm 5...8.4 Hz panel mounting 1 gn 8.4...150 Hz symmetrical rail 1 gn 8.4...150 Hz panel mounting
Depth	2.8 in (70 mm)
Width	2.8 in (70 mm)
Height	3.5 in (90 mm)
Mechanical durability	20000000 cycles transistor output
Standards	IEC 61131-2 UL 508 CAN/CSA C22.2 No. 213 IACS E10 ANSI/ISA 12-12-01
Supply	Serial 1)serial link supply 5 V, <200 mA
Marking	CE
Category	US10MSX22533
LSB value	10 mV
Insulation	Between input and internal logic 500 V AC Between fast input and internal logic 500 V AC Non-insulated between inputs Between output and internal logic 500 V AC Non-insulated between analogue input and internal logic Non-insulated between analogue inputs
Reset time	1 s automatic reset
Backup time	1 year 77 °F (25 °C) by interruption of power supply)
Clock drift	<= 30 s/month 77 °F (25 °C)
Port ethernet	10BASE-T/100BASE-TX 1 328.08 ft (100 m) copper cable
Data backed up	256 kB built-in flash memory backup of application and data
Realtime clock	With
Conversion time	1 ms per channel + 1 controller cycle time analog input
Input impedance	100 kOhm analog input 3.4 kOhm input 4.9 kOhm fast input
Memory capacity	256 kB user application and data RAM 10000 instructions 256 kB internal variables RAM
Regulation loop	Adjustable PID regulator up to 14 simultaneous loops
Counter function	Pulse/direction A/B Single phase
Local signalling	1 LED (green) for PWR 1 LED (green) for RUN 1 LED (red) for module error (ERR) 1 LED (green) for SD card access (SD) 1 LED (red) for BAT 1 LED per channel (green) for I/O state 1 LED (green) for SL Ethernet network activity (green) for ACT Ethernet network link (yellow) for Link (Link Status)
Transmission rate	1.2...115.2 kbit/s (115.2 kbit/s by default) 49.2 ft (15 m) RS485 1.2...115.2 kbit/s (115.2 kbit/s by default) 9.8 ft (3 m) RS232 480 Mbit/s USB
Function available	PLS Frequency generator PWM
Discrete i (O number)	16
Discrete input logic	Sink or source (positive/negative)
Analogue input number	2 0...10 V
Application structure	1 cyclic auxiliary task 1 configurable freewheeling/cyclic master task 8 interrupt tasks
Counting input number	4 fast input (HSC mode) 100 kHz 32 bits
Discrete input number	8, discrete input 4 fast input IEC 61131-2 Type 1
Discrete output logic	Positive logic (source)
Maximum tungsten load	<12 W output and fast output
Positioning functions	PTO 2 pulse/direction 100 kHz) PTO 1 CW/CCW 100 kHz)
Data storage equipment	2 GB SD card optional)
Discrete output number	8 transistor 2 fast output
Absolute accuracy error	+/- 1 % of full scale analog input
Immunity to microbreaks	10 ms
Electromagnetic emission	Conducted emissions 79 dBμV/m QP/66 dBμV/m AV power lines (AC))0.15...0.5 MHz IEC 55011 Conducted emissions 73 dBμV/m QP/60 dBμV/m AV power lines (AC))0.5...300 MHz IEC 55011 Conducted emissions 120...69 dBµV/m QP power lines)10...150 kHz IEC 55011 Conducted emissions 63 dBμV/m QP power lines)1.5...30 MHz IEC 55011 Radiated emissions 40 dBμV/m QP class A 10 m)30...230 MHz IEC 55011 Conducted emissions 79...63 dBμV/m QP power lines)150...1500 kHz IEC 55011 Radiated emissions 47 dBμV/m QP class A 10 m)200...1000 MHz IEC 55011
Exct time for event task	60 µs response time
Analogue input resolution	10 bits
Configurable filtering time	0 ms input 3 ms input 12 ms input
Environmental characteristic	Ordinary and hazardous location
Maximum size of object areas	512 %M memory bits 512 %KW constant words 8000 %MW memory words 255 %TM timers 255 %C counters
Permitted overload on inputs	+/- 30 V DC 5 min maximum)analog input +/- 13 V DC permanent)analog input
Resistance to fast transients	2 kV IEC 61000-4-4 power lines) 2 kV IEC 61000-4-4 relay output) 1 kV IEC 61000-4-4 I/O) 1 kV IEC 61000-4-4 Ethernet line) 1 kV IEC 61000-4-4 serial link)
Resistance to magnetic fields	98.4 A/m (30 A/m) 50/60 Hz IEC 61000-4-8
Execution time per instruction	0.2 µs Boolean
Execution time for 1 KInstruction	0.3 ms event and periodic task 0.7 ms other instruction
Ambient air temperature for storage	-13...158 °F (-25...70 °C)
Resistance to conducted disturbances	10 V 0.15...80 MHz IEC 61000-4-6 3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL) 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
Resistance to electromagnetic fields	9.1 V/m (10 V/m) 80 MHz...1 GHz IEC 61000-4-3 2.7 V/m (3 V/m) 1.4 GHz...2 GHz IEC 61000-4-3 0.9 V/m (1 V/m) 2...2.7 GHz IEC 61000-4-3
Ambient air temperature for operation	14...131 °F (-10...55 °C) horizontal installation) 14...95 °F (-10...35 °C) vertical installation)
Resistance to electrostatic discharge	8 kV in air IEC 61000-4-2 4 kV on contact IEC 61000-4-2

Product details

Overview

The TM221ME16T is a Modicon M221 logic controller from Schneider, packing 16 discrete I/O — 8 inputs (4 fast) and 8 transistor outputs rated at 0.5 A each — into a 71.12 mm square footprint. It runs on 24 V DC and carries 256 kB memory for user application and data, programmable via SoMachine Basic.

Compared to the TM221ME32TK, the TM221ME16T halves the I/O count (16 vs 32) and lacks the extra 256 kB data memory of the larger sibling, making it the right fit for smaller standalone machines where 16 points and the base memory suffice. The TM221ME16R variant swaps transistor outputs for relay outputs (2 A max), so choose the T version when driving DC loads like solenoid valves or LED indicators directly without an interposing relay.

The TM221ME16T is an active catalogue item; no obsolescence notice is recorded. It carries CE marking and complies with IEC 61131-2, UL 508, CAN/CSA C22.2 No. 213, IACS, and ANSI/ISA 12-12-01, plus California Proposition 65 — documentation for panel certification is available on request.

Integration notes

Mounts on TH35-15 or TH35-7.5 DIN rail per IEC 60715, or on a plate with the fixing kit. The serial link supply is 5 V at under 200 mA — budget that separately if powering an external Modbus device from the port. Shock rated at 147 m/s² for 11 ms; the controller survives moderate machine vibration without additional dampening.
