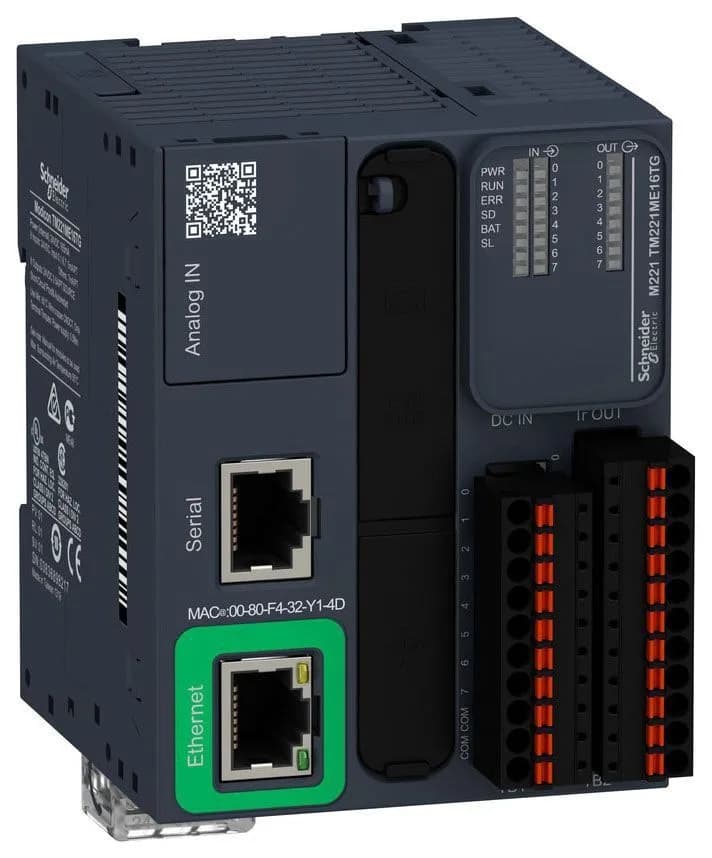

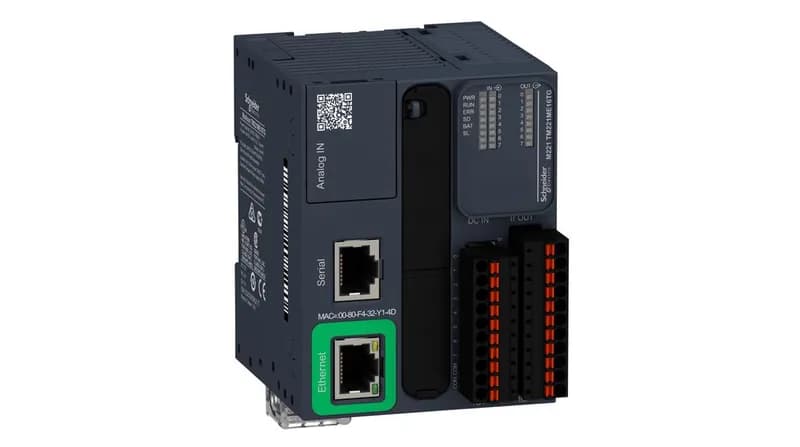

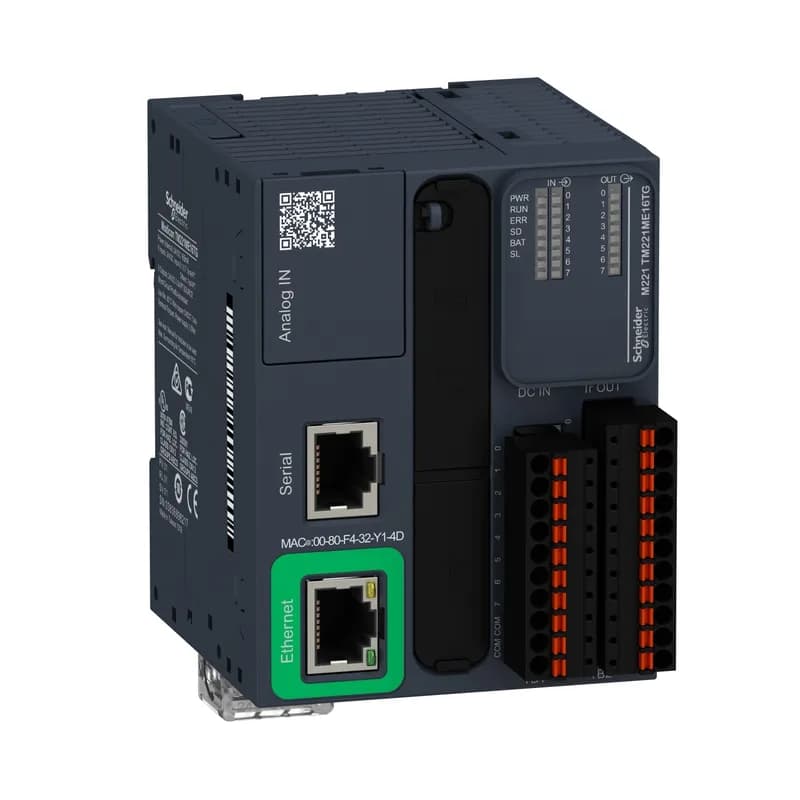

Schneider Electric TM221ME16TG

Schneider TM221ME16TG M221 Logic Controller, 16 I/O

MPNTM221ME16TG
Active

Schneider Modicon M221 logic controller, 16 I/O, transistor outputs, Ethernet port.

$287.00 – $396.00Ref. price · indicative, final on quote
Schneider Electric TM221ME16TG datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

TM221ME16TG key specifications
ParameterValue
Battery typeBR2032 or CR2032X lithium non-rechargeable
Protection typeShort-circuit and overload protection with automatic reset Short-circuit protection on output Overload and short-circuit protection 1 A
Range of productModicon M221
Discrete output typeTransistor
Product or component typeLogic controller
Integrated connection typeUSB port mini B USB 2.0 Non isolated serial link serial 1 RJ45 RS232/RS485 Ethernet RJ45
Discrete input voltage typeDC
Surge withstand2 kV power lines (AC) common mode IEC 61000-4-5 2 kV relay output common mode IEC 61000-4-5 1 kV I/O common mode IEC 61000-4-5 1 kV shielded cable common mode IEC 61000-4-5 0.5 kV power lines (DC) differential mode IEC 61000-4-5 1 kV power lines (AC) differential mode IEC 61000-4-5 1 kV relay output differential mode IEC 61000-4-5 0.5 kV power lines (DC) common mode IEC 61000-4-5
Maximum voltage drop<1 V
Supply voltage limits20.4...28.8 V
Discrete input voltage24 V
Discrete output voltage24 V DC

All specifications

TM221ME16TG additional specifications
ParameterValue
Supply voltage24 V DC
Voltage state 0 guaranteed<= 5 V input
Voltage state 1 guaranteed>= 15 V input
Inrush current35 A
Discrete input current7 mA discrete input 5 mA fast input
Discrete output current0.5 A
Maximum leakage current0.1 mA transistor output
Power supply output current0.52 A 5 V expansion bus 0.49 A 24 V expansion bus
Maximum current per output common4 A
Maximum power consumption in22.9 W 24 V with max number of I/O expansion module) 4 W 24 V without I/O expansion module)
Output frequency (sync to mains)100 kHz fast output (PWM/PLS mode) Q0...Q1 5 kHz output Q2...Q3 0.1 kHz output Q4...Q6
IP degree of protectionIP20 with protective cover in place
Communication serviceEthernet/IP adapter Modbus TCP server Modbus TCP client Modbus TCP slave device DHCP client
Communication port protocolUSB port USB - SoMachine-Network Non isolated serial link Modbus master/slave - RTU/ASCII or SoMachine-Network Ethernet
Mounting supportTop hat type TH35-15 rail IEC 60715 Top hat type TH35-7.5 rail IEC 60715 plate or panel with fixing kit
Electrical connectionterminal block, 3 for connecting the 24 V DC power supply connector, 4 for analogue inputs Mini B USB 2.0 connector for a programming terminal removable spring terminal block, 10 for inputs removable spring terminal block, 11 for outputs
Maximum cable distance between devicesShielded cable Unshielded cable Unshielded cable Unshielded cable Shielded cable <9.8 ft (3 m) fast output
Response time35 µs turn-off, I2...I5 input 5 µs turn-on, I0, I1, I6, I7 fast input 35 µs turn-on, other terminals input 5 µs turn-off, I0, I1, I6, I7 fast input 100 µs turn-off, other terminals input 5 µs turn-on, turn-off, Q0...Q1 output 50 µs turn-on, turn-off, Q2...Q3 output 300 µs turn-on, turn-off, other terminals output
Pollution degree<= 2
Shock resistance147 m/s² 11 ms
Storage altitude0...9842.5 ft (0...3000 m)
Relative humidity10...95 %, without condensation in operation) 10...95 %, without condensation in storage)
Operating altitude0...6561.68 ft (0...2000 m)
Vibration resistance3.5 mm 5...8.4 Hz symmetrical rail 3.5 mm 5...8.4 Hz panel mounting 1 gn 8.4...150 Hz symmetrical rail 1 gn 8.4...150 Hz panel mounting
Depth2.8 in (70 mm)
Width2.8 in (70 mm)
Height3.5 in (90 mm)
Mechanical durability20000000 cycles transistor output
StandardsIEC 61131-2 UL 508 CAN/CSA C22.2 No. 213 IACS E10 ANSI/ISA 12-12-01
SupplySerial 1)serial link supply 5 V, <200 mA
MarkingCE
CategoryUS10MSX22533
LSB value10 mV
InsulationBetween input and internal logic 500 V AC Between fast input and internal logic 500 V AC Non-insulated between inputs Between output and internal logic 500 V AC Non-insulated between analogue input and internal logic Non-insulated between analogue inputs
Reset time1 s automatic reset
Backup time1 year 77 °F (25 °C) by interruption of power supply)
Clock drift<= 30 s/month 77 °F (25 °C)
Port ethernet10BASE-T/100BASE-TX 1 328.08 ft (100 m) copper cable
Data backed up256 kB built-in flash memory backup of application and data
Realtime clockWith
Conversion time1 ms per channel + 1 controller cycle time analog input
Input impedance100 kOhm analog input 3.4 kOhm input 4.9 kOhm fast input
Memory capacity256 kB user application and data RAM 10000 instructions 256 kB internal variables RAM
Regulation loopAdjustable PID regulator up to 14 simultaneous loops
Counter functionPulse/direction A/B Single phase
Local signalling1 LED (green) for PWR 1 LED (green) for RUN 1 LED (red) for module error (ERR) 1 LED (green) for SD card access (SD) 1 LED (red) for BAT 1 LED per channel (green) for I/O state 1 LED (green) for SL Ethernet network activity (green) for ACT Ethernet network link (yellow) for Link (Link Status)
Transmission rate1.2...115.2 kbit/s (115.2 kbit/s by default) 49.2 ft (15 m) RS485 1.2...115.2 kbit/s (115.2 kbit/s by default) 9.8 ft (3 m) RS232 480 Mbit/s USB
Function availablePLS Frequency generator PWM
Discrete i (O number)16
Discrete input logicSink or source (positive/negative)
Analogue input number2 0...10 V
Application structure1 cyclic auxiliary task 8 interrupt tasks 1 configurable freewheeling/cyclic master task
Counting input number4 fast input (HSC mode) 100 kHz 32 bits
Discrete input number8, discrete input 4 fast input IEC 61131-2 Type 1
Discrete output logicPositive logic (source)
Maximum tungsten load<12 W output and fast output
Positioning functionsPTO 2 pulse/direction 100 kHz) PTO 1 CW/CCW 100 kHz)
Data storage equipment2 GB SD card optional)
Discrete output number8 transistor 2 fast output
Absolute accuracy error+/- 1 % of full scale analog input
Immunity to microbreaks10 ms
Electromagnetic emissionConducted emissions 79 dBμV/m QP/66 dBμV/m AV power lines (AC))0.15...0.5 MHz IEC 55011 Conducted emissions 73 dBμV/m QP/60 dBμV/m AV power lines (AC))0.5...300 MHz IEC 55011 Conducted emissions 120...69 dBµV/m QP power lines)10...150 kHz IEC 55011 Conducted emissions 63 dBμV/m QP power lines)1.5...30 MHz IEC 55011 Radiated emissions 40 dBμV/m QP class A 10 m)30...230 MHz IEC 55011 Conducted emissions 79...63 dBμV/m QP power lines)150...1500 kHz IEC 55011 Radiated emissions 47 dBμV/m QP class A 10 m)200...1000 MHz IEC 55011
Exct time for event task60 µs response time
Analogue input resolution10 bits
Configurable filtering time0 ms input 3 ms input 12 ms input
Environmental characteristicOrdinary and hazardous location
Maximum size of object areas512 %M memory bits 255 %C counters 8000 %MW memory words 512 %KW constant words 255 %TM timers
Permitted overload on inputs+/- 30 V DC 5 min maximum)analog input +/- 13 V DC permanent)analog input
Resistance to fast transients2 kV IEC 61000-4-4 power lines) 2 kV IEC 61000-4-4 relay output) 1 kV IEC 61000-4-4 I/O) 1 kV IEC 61000-4-4 Ethernet line) 1 kV IEC 61000-4-4 serial link)
Resistance to magnetic fields98.4 A/m (30 A/m) 50/60 Hz IEC 61000-4-8
Execution time per instruction0.2 µs Boolean
Execution time for 1 KInstruction0.3 ms event and periodic task 0.7 ms other instruction
Ambient air temperature for storage-13...158 °F (-25...70 °C)
Resistance to conducted disturbances10 V 0.15...80 MHz IEC 61000-4-6 3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL) 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
Resistance to electromagnetic fields9.1 V/m (10 V/m) 80 MHz...1 GHz IEC 61000-4-3 2.7 V/m (3 V/m) 1.4 GHz...2 GHz IEC 61000-4-3 0.9 V/m (1 V/m) 2...2.7 GHz IEC 61000-4-3
Ambient air temperature for operation14...131 °F (-10...55 °C) horizontal installation) 14...95 °F (-10...35 °C) vertical installation)
Resistance to electrostatic discharge8 kV in air IEC 61000-4-2 4 kV on contact IEC 61000-4-2

Product details

TM221ME16TG is a Modicon M221 brick-style PLC with 16 discrete I/O. Transistor outputs are sink or source, and fast inputs (I0, I1, I6, I7) switch in 5 µs — enough for incremental encoder capture and pulse counting. Ethernet port runs 10BASE-T/100BASE-TX for Modbus TCP, so no extra communication card needed for networked control. The controller supports up to 14 independent PID loops, enough for small process skids or temperature zones. Real-time clock with a lithium coin cell (BR2032 or CR2032X) maintains time and RAM backup for one year at 25 °C — no ongoing battery replacement schedule if the panel stays powered. Insulation is 500 V AC between input/logic and output/logic; inputs and analog channels are non-isolated from each other. Use isolated signal conditioners on shared analog fields to avoid ground loops.

Agency marks include CE, UL 508, CSA C22.2 No. 213, and IEC 61131-2, so it clears most panel certifications in North America and Europe without separate testing.

The 70 mm x 90 mm face saves rail space; allow clearance for the RJ45 and USB connectors on the front. Discrete inputs accept sink or source wiring; common negative or positive. Transistor outputs are protected against short circuits (1 A threshold) with automatic reset — no fuses needed per channel for typical load wiring.

Frequently asked questions

What is the depth of the TM221ME16TG?

Listed depth is 2.8 in (70 mm).

What is the width of the TM221ME16TG?

Listed width is 2.8 in (70 mm).

What compliance documentation does this part carry?

It carries CE marking, UL 508, IEC 61131-2, CSA C22.2 No. 213, IACS, and ANSI/ISA 12-12-01 certifications.
