Schneider TM5C12D6T6L 12DI/6DO Compact I/O, Obsolete

Q: What is the CE marking on the TM5C12D6T6L?

The module carries a CE marking, indicating conformity with applicable European directives.

Q: What is the product category US1PC1222532?

US1PC1222532 is the internal classification code for this compact I/O expansion block in the Modicon TM5 range.

MPNTM5C12D6T6L

Obsolete

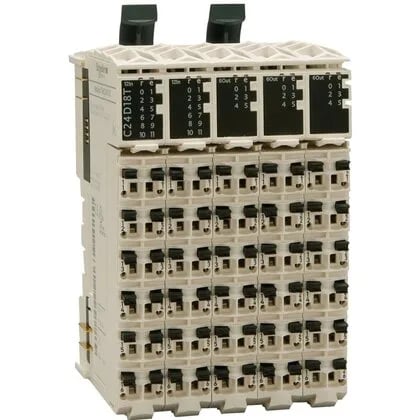

Schneider Modicon TM5C12D6T6L compact I/O expansion block, 12 sink inputs / 6 source outputs, 0.5 A per output, removable spring terminal, CE.

Find equivalent or request quote

Schneider Electric TM5C12D6T6L datasheet (PDF)

StockContact for availability

MOQ1 pcs

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

How we verify every order →

Specifications

TM5C12D6T6L specifications
Parameter	Value
Range of product	Modicon TM5
Product or component type	Compact I/O expansion block
Maximum voltage drop	<0.3 V at 500 mA output
Discrete output current	0.5 A per output
Electrical connection	Removable spring terminal block
Shock resistance	15 gn 11 ms
Marking	CE
Category	US1PC1222532
Input filtering	<= 25 ms configurable by software
Input impedance	6.4 kOhm
Local signalling	5 LEDs (green) for power supply 5 LEDs (red) for power supply 8 LEDs (yellow) for output status 16 LEDs (green) for input status
Discrete input logic	Sink
Discrete input number	12
Discrete output logic	Source
Discrete output number	6
Ambient air temperature for operation	14...122 °F (-10...50 °C) vertical installation) 14...140 °F (-10...60 °C) horizontal installation)

Product details

The TM5C12D6T6L is a Modicon TM5 compact I/O expansion block providing 12 sink discrete inputs and 6 source discrete outputs, each rated 0.5 A, plus 4 analogue inputs and 2 analogue outputs per the product description. The removable spring terminal block simplifies panel wiring. Input filtering is software-configurable up to 25 ms for debounce. The module is CE marked and carries a shock resistance of 15 gn for 11 ms.

Installation Notes

Ambient temperature range depends on mounting orientation: -10 to 60 °C horizontal, -10 to 50 °C vertical. The input impedance is 6.4 kΩ. Local signalling includes 5 green LEDs for power, 5 red for power (likely supply fault), 8 yellow for output status, and 16 green for input status.

The module is obsolete per Schneider. No successor order code is recorded in the evidence.
