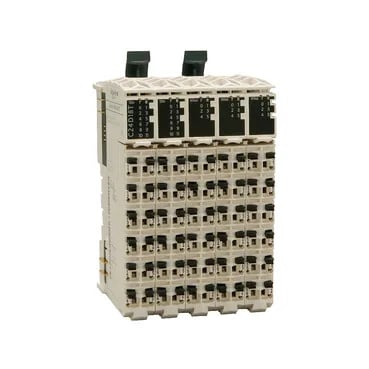

Schneider Electric TM5CAI8O8CL

TM5CAI8O8CL Modicon TM5 Compact I/O Block, 8 Analog Input 8

MPNTM5CAI8O8CL
Obsolete

Schneider Electric Modicon TM5 compact I/O expansion block, white, 8 analog current inputs 0-20/4-20 mA, 8 analog current outputs 0-20 mA, IP20, DIN rail mount.

Schneider Electric TM5CAI8O8CL datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

TM5CAI8O8CL key specifications
ParameterValue
Protection typeShort-circuit output
Range of productModicon TM5
Analogue output typeCurrent 8
Product or component typeCompact I/O expansion block
Surge withstand0.5 kV differential mode 24 V DC EN/IEC 61000-4-5 1 kV common mode 24 V DC EN/IEC 61000-4-5
Current consumption8 mA 5 V DC bus 217 mA 24 V DC input/output
Maximum leakage current5 µA when switched off) output
Power dissipation in5.25 W
Enclosure materialPlastic
IP degree of protectionIP20IEC 61131-2
Mounting supportDIN rail
Electrical connectionRemovable spring terminal block

All specifications

TM5CAI8O8CL additional specifications
ParameterValue
Response time<= 1 ms status change output
Pollution degree2 IEC 60664
Shock resistance15 gn 11 ms
Storage altitude0...9842.5 ft (0...3000 m)
Relative humidity5...95 % without condensation
Operating altitude0...6561.68 ft (0...2000 m)
Vibration resistance1 gn 8.4...150 Hz DIN rail 3.5 mm 5...8.4 Hz DIN rail
ColorWhite
StandardsCSA C22.2 No 213 UL 508 CSA C22.2 No 142 IEC 61131-2
MarkingCE
Category22532-M258 PLC
IsolationNo insulation between channels 500 Vrms AC insulation between channel and bus
Input filtering<= 50 ms not configurable
Local signalling4 LEDs (green) for power supply 4 LEDs (red) for power supply 8 LEDs (yellow) for output status 8 LEDs (green) for input status
Number of modulesAnalog input 2 x 4 Analog output 2 x 4
Sampling duration20 ms input/output for the whole module 5 ms input/output per channel
Input (output number)16
Analogue input range0...20 mA 4...20 mA
Analogue input number8
Analogue output range0...20 mA
Analogue output number8
Analogue input resolution12 bits current
Electromagnetic compatibilityEN/IEC 61000-4-6
Resistance to fast transients1 kV EN/IEC 61000-4-4 I/O) 1 kV EN/IEC 61000-4-4 shielded cable) 2 kV EN/IEC 61000-4-4 power lines)
Disturbance radiated (conducted)CISPR 11 zone B - class A
Ambient air temperature for storage-40...158 °F (-40...70 °C)
Input (output number of splitter box)8 I + 8 O
Resistance to electromagnetic fields0.9 V/m (1 V/m) 2...2.7 GHz EN/IEC 61000-4-3 9.1 V/m (10 V/m) 80...2000 MHz EN/IEC 61000-4-3
Ambient air temperature for operation14...122 °F (-10...50 °C) vertical installation) 14...140 °F (-10...60 °C) horizontal installation)
Resistance to electrostatic discharge4 kV on contact EN/IEC 61000-4-2 8 kV in air EN/IEC 61000-4-2

Product details

The TM5CAI8O8CL is a 16-point analog combination block in the Modicon TM5 family — 8 current inputs and 8 current outputs in a single DIN-rail module. The inputs accept 0–20 mA or 4–20 mA signals with 12-bit resolution; the outputs source 0–20 mA current. Two separate 4-channel groups share one sampling duration of 20 ms for the whole module (5 ms per channel). Power draw is 8 mA from the 5 V bus and 217 mA from the 24 V I/O supply; the module dissipates 5.25 W. Outputs are short-circuit protected, and the response time to a status change is ≤1 ms.

Mounts on DIN rail with removable spring-cage terminal. 16 I/O points, status LEDs: 4 power, 8 output, 8 input. No channel-to-channel isolation; only 500 Vrms bus isolation. Input filtering fixed at ≤50 ms.

Carries CSA C22.2 No 213, CSA C22.2 No 142, UL 508, and IEC 61131-2. Pollution degree 2, IP20 finger-safe. EMC per EN/IEC 61000-4-6 and CISPR 11 zone B class A.

Frequently asked questions

What is TM5CAI8O8CL's listed color?

White.

What is TM5CAI8O8CL's listed marking?

CE.

What compliance documentation does this brand provide for TM5CAI8O8CL?

UL 508, CSA C22.2 No 142, CSA C22.2 No 213, and IEC 61131-2. Additionally, it meets EN/IEC 61000-4-6 EMC immunity and CISPR 11 class A emissions.
