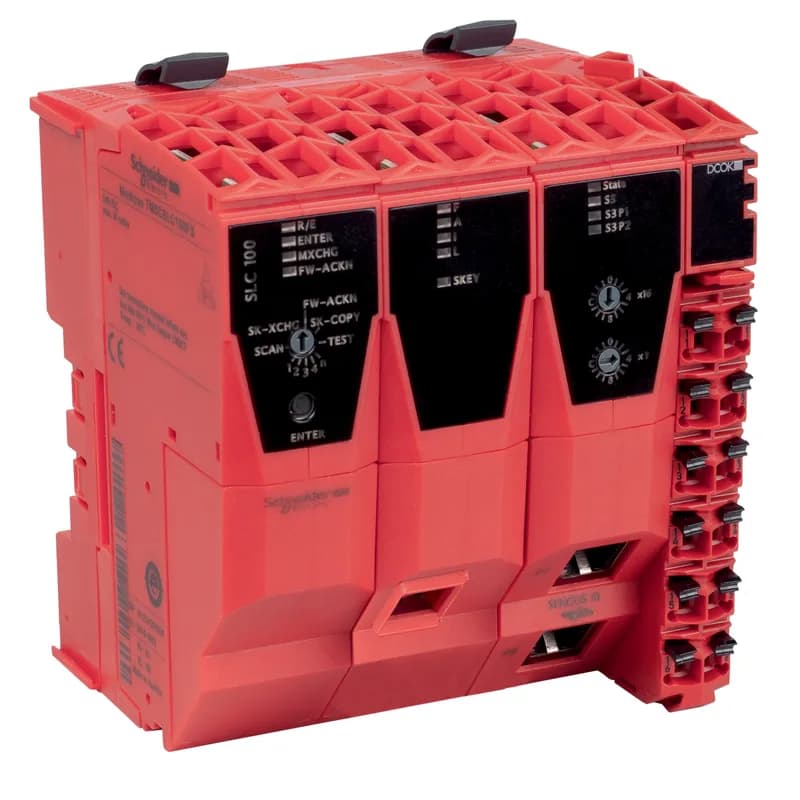

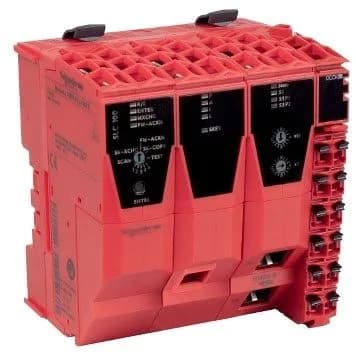

Schneider TM5CSLC200FS Logic Controller
MPNTM5CSLC200FS
Active
Square D TM5CSLC200FS Logic Controller|Square D TM5CSLC200FS Logic Controller
$54.09Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Type of cooling | Fanless |
| Range of product | Modicon TM5 |
| Input protection type | Integrated fuse (not interchangeable) |
| Product or component type | Controller system |
| Communication network type | SERCOS III Ethernet) |
| Voltage | 24 V -15...20 % |
| Power consumption in | 5.1 W |
| IP degree of protection | IP20 |
| Maximum cable distance between devices | 328.08 ft (100 m) between station |
| Relative humidity | 5...95 % without condensation |
| Operating altitude | 0...6561.68 ft (0...2000 m) |
| Color | Red |
All specifications
| Parameter | Value |
|---|---|
| Depth | 3.0 in (75 mm) |
| Width | 3.4 in (87.5 mm) |
| Height | 3.9 in (99 mm) |
| Standards | IEC 62061 EN 13849-1 IEC 61508 IEC 61131-2 IEC 61511 |
| Marking | CE |
| Category | US1PC5218360 |
| Cycle time | 1 ms |
| Safety level | SIL 3 IEC 61508 SIL 3 IEC 62061 PL = e EN 13849-1 |
| Processor name | Intel Xscale 266 MHz |
| Realtime clock | With non-volatile memory |
| Local signalling | 1 LED (green or orange) for application run or SoSafe debug mode 1 LED (green) for authorization status 1 LED (orange) for configuration status (Ready) 1 LED (orange) for firmware status 4 LEDs (red) for boot status 1 LED (orange) for memory key status |
| Number of devices | 2 shielded RJ45 1 memory key slot |
| Transmission rate | 100 Mbit/s for full duplex |
| Device application | Safety logic controller |
| Function available | Support of 32 machine options With 2 internal switch Support max 100 safety nodes |
| Safety reliability data | PFD < 1E-5 PFH < 1E-9 MTTFd > 100 years |
| Reverse polarity protection | Yes |
| Ambient air temperature for storage | -13...158 °F (-25...70 °C) |
| Ambient air temperature for operation | 32...113 °F (0...45 °C) vertical installation) 32...131 °F (0...55 °C) horizontal installation) |
MPN
TM5CSLC200FS
