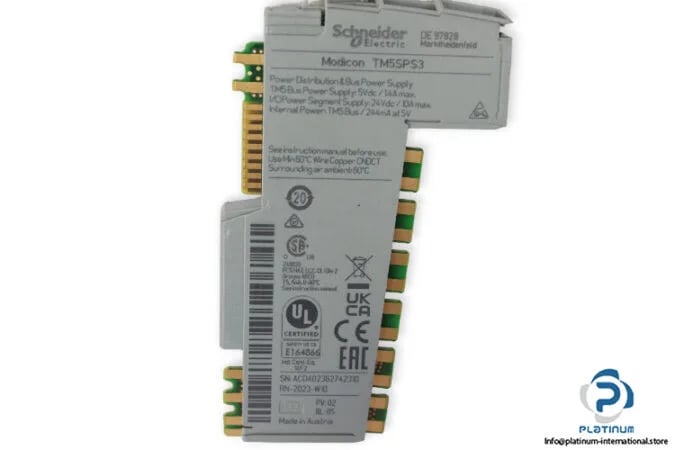

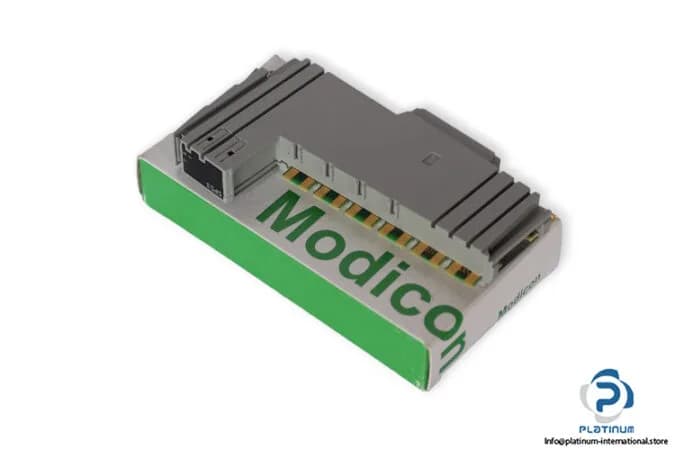

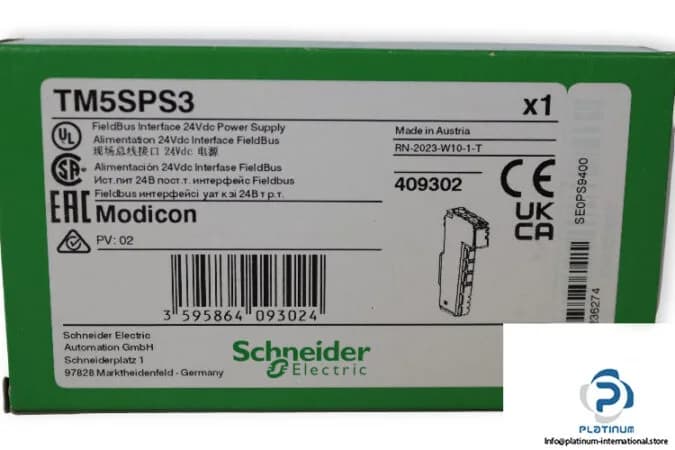

Schneider Electric TM5SPS3
MPNTM5SPS3
Active
SCHNEIDER TM5SPS3 POWER DISTRIBUTION MODULE
$53.34Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Range of product | Modicon TM5 |
| Product or component type | Power distribution module |
| Supply voltage | 24 V DC |
| Input current | 750 mA TM5 power bus 500 mA TM5 power bus 10000 mA I/O power segment |
| Short-circuit protection | 10 A external fuse |
| Power supply output current | 750 mA TM5 power bus 500 mA TM5 power bus 10 A I/O power segment |
| Typical current consumption | 25 mA 24 V DC |
| Maximum power dissipation in | 1.91 W |
| IP degree of protection | IP20 |
| Electrical connection | Screw/spring terminal block |
| Pollution degree | 2 |
| Shock resistance | 15 gn 11 ms |
All specifications
| Parameter | Value |
|---|---|
| Relative humidity | 5...95 % without condensation |
| Operating altitude | 0...6561.68 ft (0...2000 m) |
| Vibration resistance | 1 gn 8.4...150 Hz) on DIN rail 3.5 mm 5...8.4 Hz) on DIN rail |
| Depth | 3.0 in (75 mm) |
| Width | 0.5 in (12.5 mm) |
| Height | 3.9 in (99 mm) |
| Housing colour | Grey |
| Standards | CSA C22.2 No 213 CSA C22.2 No 142 IEC 61131-2 UL 508 |
| Marking | CE |
| Category | US1PC5118296 |
| Ambient air temperature for storage | -40...158 °F (-40...70 °C) |
| Ambient air temperature for operation | 14...131 °F (-10...55 °C) without derating horizontal installation) 131...140 °F (55...60 °C) with derating factor horizontal installation) 14...122 °F (-10...50 °C) vertical installation) |
MPN
TM5SPS3
