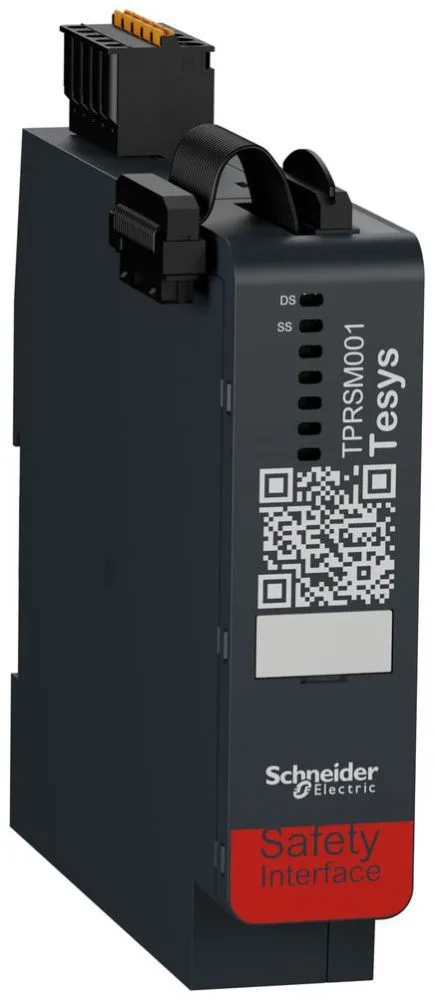

Schneider Electric TPRSM001
MPNTPRSM001
Active
TESYS ISLAND SIL INTERFACE|TESYS ISLAND SIL INTERFACE
$96.52 – $274.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Input type | Isolated switching input safe stop |
| Output signal | Relay instantaneous opening, 1 NO, potential free |
| Protection type | External fuse, 8 A gG relay output |
| Input protection type | Internal, electronic |
| Product or component type | SIL interface module |
| Input voltage | 15...28.8 V DC state 1 0...5 V DC state 0 |
| Supply voltage | 24 V DC supplied by the bus coupler |
| Voltage | Input/output circuit 50 V |
| [Ue] rated operational voltage | Input/output circuit 24 V DC |
| [Uimp] rated impulse withstand voltage | 2 kV input/output circuit IEC 60947-1 |
| Current consumption | 10 mA |
| Output thermal current | 8 A relay output |
All specifications
| Parameter | Value |
|---|---|
| Power dissipation in | 0.7 W maximum |
| IP degree of protection | IP20 |
| Mounting mode | Horizontal and vertical 35 mm symmetrical rail) |
| Connections - terminals | Control circuit removable spring terminal block 5 0.0003...0.004 in² (0.2...2.5 mm²) AWG 24...AWG 14)rigid Control circuit removable spring terminal block 5 0.0003...0.004 in² (0.2...2.5 mm²) AWG 24...AWG 14)flexible without cable end Control circuit removable spring terminal block 5 0.0004...0.004 in² (0.25...2.5 mm²) AWG 22...AWG 14)flexible with cable end |
| Pollution degree | 2 |
| Shock resistance | 15 gn 11 ms) IEC 60068-2-27 |
| Relative humidity | 5...95 % |
| Operating altitude | 0...6561.68 ft (0...2000 m) without derating |
| Vibration resistance | 1.5 mm peak to peak 3...13 Hz) IEC 60068-2-6 1 gn 13...200 Hz) IEC 60068-2-6 |
| Depth | 4.5 in (114 mm) |
| Width | 1.0 in (25 mm) |
| Height | 4.6 in (118 mm) |
| Standards | UL 60947-5-1 IEC 60947-5-1 |
| Range | TeSys |
| Category | US10I1222353 |
| Fire resistance | 1760 °F (960 °C) UL 94 |
| Safety function | Safe stop: category 0 conforming to IEC 60204-1 Safe stop: category 1 conforming to IEC 60204-1 |
| Local signalling | 1 LED (green/red) for DS (device status) 1 LED (green/red) for SS (safe stop status) |
| Device short name | TPRSM |
| Function of module | Safe stop with 1NC or 2NC contacts monitoring |
| Device presentation | Implementation of a safe stop function for SIL motor starters TPRSS Safe stop operable for safety-related system conforming to ISO 13849-1 Operational only when connected to a bus coupler TPRBC |
| Overvoltage category | III |
| Protective treatment | TC |
| SIL rating | SIL 2 conforming to IEC 61508 in single channel system architecture SILCL 2 conforming to IEC 62061 in single channel system architecture PL = d category 2 conforming to ISO 13849-1 in single channel system architecture |
| Electromagnetic compatibility | Electrostatic discharge, level 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2 Radiated RF fields, level 3, 10 V/m, conforming to EN/IEC 61000-4-3 Fast transients immunity test, level 3, 2 kV, conforming to EN/IEC 61000-4-4 Surge immunity test (common mode), level 3, 2 kV, conforming to EN/IEC 61000-4-5 |
| Ambient air temperature for storage | -13...158 °F (-25...70 °C) |
| Ambient air temperature for operation | 14...140 °F (-10...60 °C) |
