Schneider Electric TPRST038
MPNTPRST038
Active

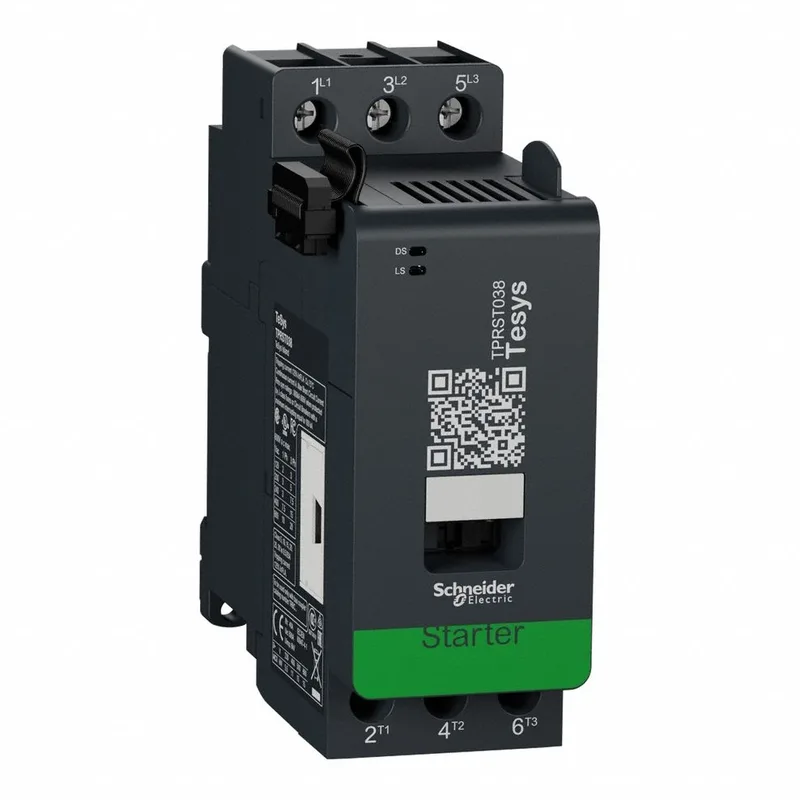

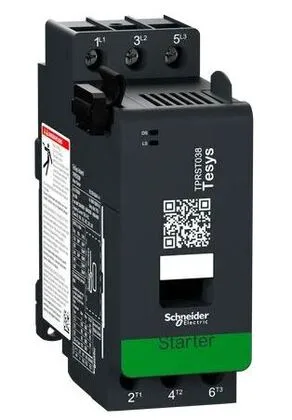

DIRECT ONLINE STARTER TESYS ISLAND 40A AC-1 38A AC-3 18.5KW / 20|DIRECT ONLINE STARTER TESYS ISLAND 40A AC-1 38A AC-3 18.5KW / 20HP
$423.00 – $432.08Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Monitoring type | Time device ON Time device switch ON Number of faults Number of switching cycles Number of device power cycles Average current Iavg Average voltage Vavg Max current Imax Max voltage Vmax Active and reactive power with voltage module Active and reactive energy with voltage module True power factor with voltage module |
| Protection type | Thermal overload protection Motor overheat Overcurrent Undercurrent Jam Long start Stall Rapid cycle lockout Phase sequence Rapid restart lockout Phase loss Phase reversal Phase unbalance Ground current |
| Motor starter type | Direct on line |
| Product or component type | Motor starter |
| Coil voltage | 24 V DC supplied by the bus coupler |
| Voltage | 690 V IEC 60947-4-1 600 V UL 60947-4-1 600 V CSA C22.2 No 60947-4-1 |
| [Ue] rated operational voltage | <= 690 V AC 47...63 Hz for overvoltage cat. II |
| [Uimp] rated impulse withstand voltage | 6 kV IEC 60947-1 |
| [Icw] rated short-time withstand current | 430 A 104 °F (40 °C) - 1 s 310 A 104 °F (40 °C) - 10 s 150 A 104 °F (40 °C) - 1 min 60 A 104 °F (40 °C) - 10 min |
| Current consumption | 160 mA contactor sealed 160 mA contactor closing |
| Breaking capacity | 550 A at 440 V conforming to IEC 60947 |
| [Ie] rated operational current | 38 A (at 40 A (at <122 °F (50 °C)) at <= 440 V AC-1 |
All specifications
| Parameter | Value |
|---|---|
| [Ith] conventional free air thermal current | 40 A (at 122 °F (50 °C)) |
| Motor power | 9 kW at 230 V 50 Hz (AC-3) 18.5 kW at 380...415 V 50 Hz (AC-3) 18.5 kW at 440 V 50 Hz (AC-3) 18.5 kW at 500 V 50 Hz (AC-3) 18.5 kW at 690 V 50 Hz (AC-3) |
| Power dissipation in | 11.8 W at Ie AC-3 |
| Motor power HP (UL (CSA)) | 2 hp at 120 V AC 60 Hz for 1 phase motors 5 hp at 240 V AC 60 Hz for 1 phase motors 10 hp at 208 V AC 60 Hz for 3 phase motors 10 hp at 240 V AC 60 Hz for 3 phase motors 20 hp at 480 V AC 60 Hz for 3 phase motors 25 hp at 600 V AC 60 Hz for 3 phase motors |
| Power dissipation per pole | 2.9 W AC-3 - Ith 38 A 3.2 W AC-1 - Ith 40 A |
| Poles description | 3P 3 NO |
| Utilisation category | AC-1 AC-2 AC-3 AC-4 AC-3e |
| IP degree of protection | IP20 |
| Mounting mode | Horizontal and vertical 35 mm symmetrical DIN rail) |
| Connections - terminals | screw-clamp terminals 1 0.002...0.02 in² (1.5...10 mm²) AWG 16...AWG 8)rigid screw-clamp terminals 2 0.002...0.02 in² (1.5...10 mm²) AWG 16...AWG 8)rigid screw-clamp terminals 1 0.004...0.02 in² (2.5...10 mm²) AWG 14...AWG 8)flexible without cable end screw-clamp terminals 2 0.004...0.02 in² (2.5...10 mm²) AWG 14...AWG 8)flexible without cable end screw-clamp terminals 1 0.002...0.02 in² (1.5...10 mm²) AWG 16...AWG 10)flexible with cable end screw-clamp terminals 2 0.002...0.009 in² (1.5...6 mm²) AWG 16...AWG 10)flexible with cable end |
| Pollution degree | 2 |
| Shock resistance | 15 gn 11 ms) IEC 60068-2-27 |
| Relative humidity | 5...95 % |
| Operating altitude | 0...6561.68 ft (0...2000 m) without derating |
| Vibration resistance | 1.5 mm peak to peak 3...13 Hz) IEC 60068-2-6 1 gn 13...200 Hz) IEC 60068-2-6 |
| Depth | 4.5 in (115 mm) |
| Width | 1.8 in (45 mm) |
| Height | 4.8 in (121 mm) |
| Electrical durability | 1.4 Mcycles 38 A AC-3 440 V 2 Mcycles 40 A AC-1 440 V |
| Mechanical durability | 30 Mcycles |
| Standards | EN/IEC 60947-1 EN/IEC 60947-4-1 UL 60947-4-1 CSA C22.2 No 60947-4-1 |
| Range | TeSys |
| Reset | Remotely or automatically |
| Category | US10I1222352 |
| Operating time | < 100 ms closing < 30 ms opening |
| Fire resistance | 1760 °F (960 °C) UL 94 1562 °F (850 °C) IEC 60695-2-1 1202 °F (650 °C) IEC 60695-2-12 |
| Local signalling | 1 LED (green/red) for DS (device status) 1 LED (green/red) for LS (load status) |
| Average impedance | 2 mOhm - Ith 40 A 50 Hz |
| Device short name | TPRST |
| Tightening torque | 22.1 lbf.in (2.5 N.m) flat Ø 6 mm 22.1 lbf.in (2.5 N.m) Philips No 3 |
| Function available | Upstream voltage presence detection Electrical line and load protection Power and energy monitoring when connected with TPRVM voltage module |
| Device presentation | Direct starter connected to an automation controller through a bus coupler Operational only when connected to a bus coupler |
| Overvoltage category | III for Ue II for Ue <= 690 V |
| Protective treatment | TC |
| Maximum operating rate | 3600 cyc/mn AC-3 |
| Thermal overload class | Class 5...30 |
| Safety performance level | B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1 |
| Irms rated making capacity | 550 A at 440 V conforming to IEC 60947 |
| Electromagnetic compatibility | Electrostatic discharge immunity test, level 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2 Radiated RF field immunity test, level 3, 10 V/m, conforming to EN/IEC 61000-4-3 Fast transient immunity test, level 4, 4 kV, conforming to EN/IEC 61000-4-4 Surge immunity test (differential mode), level 3, 2 kV, conforming to EN/IEC 61000-4-5 Surge immunity test (common mode), level 4, 4 kV, conforming to EN/IEC 61000-4-5 Conducted RF disturbance immunity test, 20 V, conforming to EN/IEC 61000-4-6 |
| Ambient air temperature for storage | -13...158 °F (-25...70 °C) |
| Thermal protection adjustment range | 0.76...38 A |
| Ambient air temperature for operation | 14...122 °F (-10...50 °C) without derating 122...140 °F (50...60 °C) with current derating |
