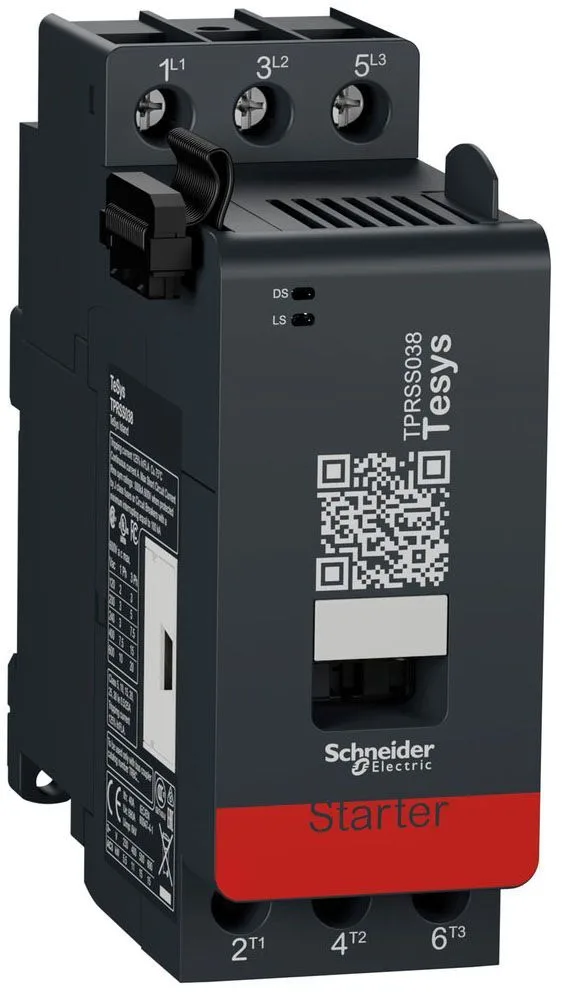

Schneider Electric TPRSS038

Schneider Electric TPRSS038

MPNTPRSS038
Active

TESYS ISLAND SIL STARTER 25HP|TESYS ISLAND SIL STARTER 25HP

$142.24Ref. price · indicative, final on quote
Schneider Electric TPRSS038 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

TPRSS038 key specifications
ParameterValue
Monitoring typeTime device ON Time device switch ON Number of faults Number of switching cycles Number of device power cycles Average current Iavg Average voltage Vavg Max current Imax Max voltage Vmax Active and reactive power with voltage module Active and reactive energy with voltage module True power factor with voltage module
Protection typeThermal overload protection Motor overheat Overcurrent Undercurrent Jam Long start Stall Rapid cycle lockout Rapid restart lockout Phase sequence Phase reversal Phase loss Phase unbalance Ground current
Motor starter typeDirect on line
Product or component typeSIL motor starter
Coil voltage24 V DC supplied by the bus coupler
Voltage690 V IEC 60947-4-1 600 V UL 60947-4-1 600 V CSA C22.2 No 60947-4-1
[Ue] rated operational voltage<= 690 V AC 47...63 Hz for overvoltage cat. II
[Uimp] rated impulse withstand voltage6 kV IEC 60947-1
[Icw] rated short-time withstand current430 A 104 °F (40 °C) - 1 s 310 A 104 °F (40 °C) - 10 s 150 A 104 °F (40 °C) - 1 min 60 A 104 °F (40 °C) - 10 min
Current consumption160 mA contactor sealed 160 mA contactor closing
Breaking capacity550 A at 440 V conforming to IEC 60947
[Ie] rated operational current38 A (at 40 A (at <122 °F (50 °C)) at <= 440 V AC-1

All specifications

TPRSS038 additional specifications
ParameterValue
[Ith] conventional free air thermal current40 A (at 122 °F (50 °C))
Motor power9 kW at 230 V 50 Hz (AC-3) 18.5 kW at 380...415 V 50 Hz (AC-3) 18.5 kW at 440 V 50 Hz (AC-3) 18.5 kW at 500 V 50 Hz (AC-3) 18.5 kW at 690 V 50 Hz (AC-3)
Power dissipation in11.8 W at Ie AC-3
Motor power HP (UL (CSA))2 hp at 120 V AC 60 Hz for 1 phase motors 5 hp at 240 V AC 60 Hz for 1 phase motors 10 hp at 208 V AC 60 Hz for 3 phase motors 10 hp at 240 V AC 60 Hz for 3 phase motors 20 hp at 480 V AC 60 Hz for 3 phase motors 25 hp at 600 V AC 60 Hz for 3 phase motors
Power dissipation per pole2.9 W AC-3 - Ith 38 A 3.2 W AC-1 - Ith 40 A
Poles description3P 3 NO
Utilisation categoryAC-1 AC-2 AC-3 AC-4 AC-3e
IP degree of protectionIP20
Mounting modeHorizontal and vertical 35 mm symmetrical DIN rail)
Connections - terminalsscrew-clamp terminals 1 0.002...0.02 in² (1.5...10 mm²) AWG 16...AWG 8)rigid screw-clamp terminals 2 0.002...0.02 in² (1.5...10 mm²) AWG 16...AWG 8)rigid screw-clamp terminals 1 0.004...0.02 in² (2.5...10 mm²) AWG 14...AWG 8)flexible without cable end screw-clamp terminals 2 0.004...0.02 in² (2.5...10 mm²) AWG 14...AWG 8)flexible without cable end screw-clamp terminals 1 0.002...0.02 in² (1.5...10 mm²) AWG 16...AWG 10)flexible with cable end screw-clamp terminals 2 0.002...0.009 in² (1.5...6 mm²) AWG 16...AWG 10)flexible with cable end
Pollution degree2
Shock resistance15 gn 11 ms) IEC 60068-2-27
Relative humidity5...95 %
Operating altitude0...6561.68 ft (0...2000 m) without derating
Vibration resistance1.5 mm peak to peak 3...13 Hz) IEC 60068-2-6 1 gn 13...200 Hz) IEC 60068-2-6
Depth4.5 in (115 mm)
Width1.8 in (45 mm)
Height4.8 in (121 mm)
Electrical durability1.4 Mcycles 38 A AC-3 440 V 2 Mcycles 40 A AC-1 440 V
Mechanical durability30 Mcycles
StandardsEN/IEC 60947-1 EN/IEC 60947-4-1 UL 60947-4-1 CSA C22.2 No 60947-4-1
RangeTeSys
ResetRemotely or automatically
CategoryUS10I1222352
Operating time< 100 ms closing < 30 ms opening
Fire resistance1760 °F (960 °C) UL 94 1562 °F (850 °C) IEC 60695-2-1 1202 °F (650 °C) IEC 60695-2-12
Safety functionSafe stop: category 0 conforming to IEC 60204-1 when associated with a TPRSM module Safe stop: category 1 conforming to IEC 60204-1 when associated with a TPRSM module
Local signalling1 LED (green/red) for DS (device status) 1 LED (green/red) for LS (load status)
Average impedance2 mOhm - Ith 40 A 50 Hz
Device short nameTPRSS
Tightening torque22.1 lbf.in (2.5 N.m) flat Ø 6 mm 22.1 lbf.in (2.5 N.m) Philips No 3
Function availableUpstream voltage presence detection Electrical line and load protection Power and energy monitoring when connected with TPRVM voltage module Safe stop function available when connected with a TPRSM module
Device presentationDirect starter connected to an automation controller through a bus coupler Operational only when connected to a bus coupler
Overvoltage categoryIII for Ue II for Ue <= 690 V
Protective treatmentTC
Maximum operating rate3600 cyc/mn AC-3
SIL ratingSIL 2 conforming to IEC 61508 in single channel system architecture SILCL 2 conforming to IEC 62061 in single channel system architecture PL = d category 2 conforming to ISO 13849-1 in single channel system architecture
Thermal overload classClass 5...30
Safety performance levelB10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Irms rated making capacity550 A at 440 V conforming to IEC 60947
Electromagnetic compatibilityElectrostatic discharge immunity test, level 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2 Radiated RF field immunity test, level 3, 10 V/m, conforming to EN/IEC 61000-4-3 Fast transient immunity test, level 4, 4 kV, conforming to EN/IEC 61000-4-4 Surge immunity test (differential mode), level 3, 2 kV, conforming to EN/IEC 61000-4-5 Surge immunity test (common mode), level 4, 4 kV, conforming to EN/IEC 61000-4-5 Conducted RF disturbance immunity test, 20 V, conforming to EN/IEC 61000-4-6
Ambient air temperature for storage-13...158 °F (-25...70 °C)
Thermal protection adjustment range0.76...38 A
Ambient air temperature for operation14...122 °F (-10...50 °C) without derating 122...140 °F (50...60 °C) with current derating
MPN
TPRSS038
