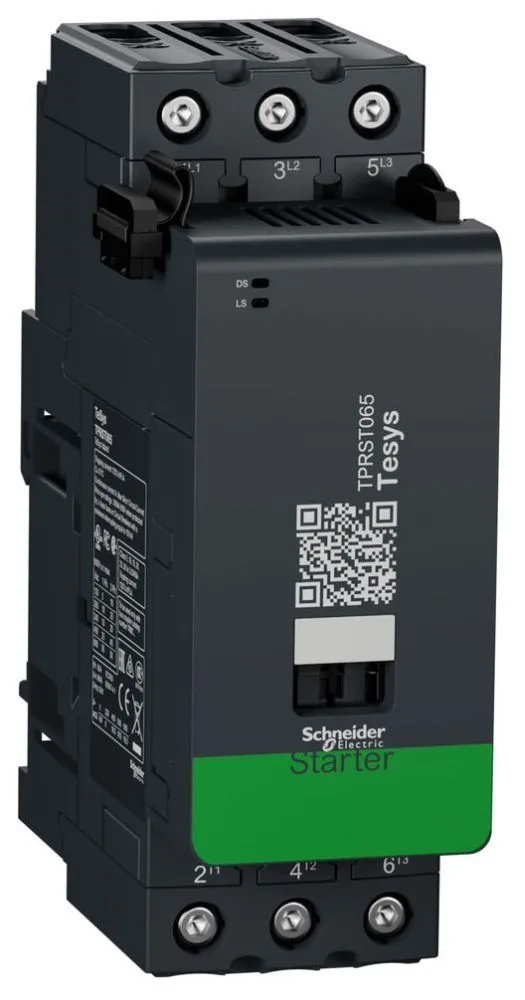

Schneider Electric TPRST065
MPNTPRST065
Active
DIRECT ONLINE STARTER TESYS ISLAND 80A AC-1 65A AC-3 30KW / 40HP|DIRECT ONLINE STARTER TESYS ISLAND 80A AC-1 65A AC-3 30KW / 40HP
$306.00 – $680.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Monitoring type | Time device ON Time device switch ON Number of faults Number of switching cycles Number of device power cycles Average current Iavg Average voltage Vavg Max current Imax Max voltage Vmax Active and reactive power with voltage module Active and reactive energy with voltage module True power factor with voltage module |
| Protection type | Thermal overload protection Motor overheat Overcurrent Undercurrent Jam Long start Stall Rapid cycle lockout Phase sequence Rapid restart lockout Phase reversal Phase loss Phase unbalance Ground current |
| Motor starter type | Direct on line |
| Product or component type | Motor starter |
| Coil voltage | 24 V DC supplied by the bus coupler |
| Voltage | 690 V IEC 60947-4-1 600 V UL 60947-4-1 600 V CSA C22.2 No 60947-4-1 |
| [Ue] rated operational voltage | <= 690 V AC 47...63 Hz |
| [Uimp] rated impulse withstand voltage | 6 kV IEC 60947-1 |
| [Icw] rated short-time withstand current | 900 A 104 °F (40 °C) - 1 s 520 A 104 °F (40 °C) - 10 s 260 A 104 °F (40 °C) - 1 min 110 A 104 °F (40 °C) - 10 min |
| Current consumption | 80 mA contactor sealed 500 mA contactor closing |
| Breaking capacity | 1000 A at 440 V conforming to IEC 60947 |
| [Ie] rated operational current | 65 A (at 80 A (at <122 °F (50 °C)) at <= 440 V AC-1 |
All specifications
| Parameter | Value |
|---|---|
| [Ith] conventional free air thermal current | 80 A (at 122 °F (50 °C)) |
| Motor power | 18.5 kW at 230 V 50 Hz (AC-3) 30 kW at 380...415 V 50 Hz (AC-3) 30 kW at 440 V 50 Hz (AC-3) 37 kW at 500 V 50 Hz (AC-3) 37 kW at 690 V 50 Hz (AC-3) |
| Power dissipation in | 20.8 W at Ie AC-3 |
| Motor power HP (UL (CSA)) | 5 hp at 120 V AC 60 Hz for 1 phase motors 10 hp at 240 V AC 60 Hz for 1 phase motors 20 hp at 208 V AC 60 Hz for 3 phase motors 20 hp at 240 V AC 60 Hz for 3 phase motors 40 hp at 480 V AC 60 Hz for 3 phase motors 50 hp at 600 V AC 60 Hz for 3 phase motors |
| Power dissipation per pole | 6.3 W AC-3 - Ith 65 A 9.6 W AC-1 - Ith 80 A |
| Poles description | 3P 3 NO |
| Utilisation category | AC-1 AC-2 AC-3 AC-4 AC-3e |
| IP degree of protection | IP20 |
| Mounting mode | Horizontal and vertical 35 mm symmetrical DIN rail) |
| Connections - terminals | EverLink BTR screw connectors 1 0.002...0.05 in² (1...35 mm²) AWG 16...AWG 2)rigid EverLink BTR screw connectors 2 0.002...0.04 in² (1...25 mm²) AWG 16...AWG 4)rigid EverLink BTR screw connectors 1 0.002...0.05 in² (1...35 mm²) AWG 16...AWG 2)flexible without cable end EverLink BTR screw connectors 2 0.002...0.04 in² (1...25 mm²) AWG 16...AWG 4)flexible without cable end EverLink BTR screw connectors 1 0.002...0.05 in² (1...35 mm²) AWG 16...AWG 2)flexible with cable end EverLink BTR screw connectors 2 0.002...0.04 in² (1...25 mm²) AWG 16...AWG 4)flexible with cable end |
| Pollution degree | 2 |
| Shock resistance | 15 gn 11 ms) IEC 60068-2-27 |
| Relative humidity | 5...95 % |
| Operating altitude | 0...6561.68 ft (0...2000 m) without derating |
| Vibration resistance | 1.5 mm peak to peak 3...13 Hz) IEC 60068-2-6 1 gn 13...200 Hz) IEC 60068-2-6 |
| Depth | 4.9 in (125 mm) |
| Width | 2.2 in (55 mm) |
| Height | 6.6 in (167 mm) |
| Electrical durability | 1.4 Mcycles 65 A AC-3 440 V 0.5 Mcycles 80 A AC-1 440 V |
| Mechanical durability | 6 Mcycles |
| Standards | EN/IEC 60947-1 EN/IEC 60947-4-1 UL 60947-4-1 CSA C22.2 No 60947-4-1 |
| Range | TeSys |
| Reset | Remotely or automatically |
| Category | US10I1222352 |
| Operating time | < 80 ms closing < 80 ms opening |
| Fire resistance | 1760 °F (960 °C) UL 94 1562 °F (850 °C) IEC 60695-2-1 1202 °F (650 °C) IEC 60695-2-12 |
| Local signalling | 1 LED (green/red) for DS (device status) 1 LED (green/red) for LS (load status) |
| Average impedance | 1.5 mOhm - Ith 80 A 50 Hz |
| Device short name | TPRST |
| Tightening torque | 44.3 lbf.in (5 N.m) 0.002...0.04 in² (1...25 mm²) hexagonal 0.2 in (4 mm) 70.8 lbf.in (8 N.m) 0.04...0.05 in² (25...35 mm²) hexagonal 0.2 in (4 mm) |
| Function available | Upstream voltage presence detection Electrical line and load protection Power and energy monitoring when connected with TPRVM voltage module |
| Device presentation | Direct starter connected to an automation controller through a bus coupler Operational only when connected to a bus coupler |
| Overvoltage category | III |
| Protective treatment | TC |
| Maximum operating rate | 3600 cyc/mn AC-3 |
| Thermal overload class | Class 5...30 |
| Safety performance level | B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1 |
| Irms rated making capacity | 1000 A at 440 V conforming to IEC 60947 |
| Electromagnetic compatibility | Electrostatic discharge immunity test, level 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2 Radiated RF field immunity test, level 3, 10 V/m, conforming to EN/IEC 61000-4-3 Fast transient immunity test, level 4, 4 kV, conforming to EN/IEC 61000-4-4 Surge immunity test (differential mode), level 3, 2 kV, conforming to EN/IEC 61000-4-5 Surge immunity test (common mode), level 4, 4 kV, conforming to EN/IEC 61000-4-5 Conducted RF disturbance immunity test, 20 V, conforming to EN/IEC 61000-4-6 |
| Ambient air temperature for storage | -13...158 °F (-25...70 °C) |
| Thermal protection adjustment range | 3.35...65 A |
| Ambient air temperature for operation | 14...122 °F (-10...50 °C) without derating 122...140 °F (50...60 °C) with current derating |
MPN
TPRST065
