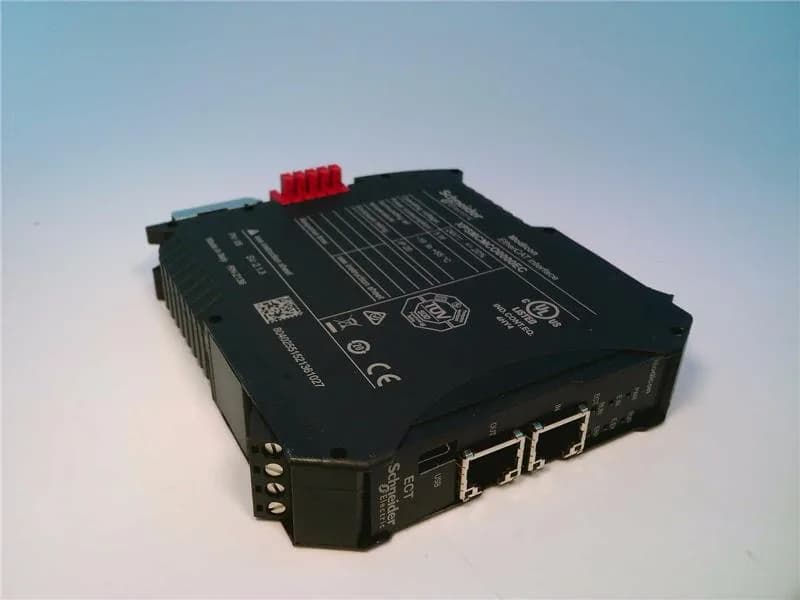

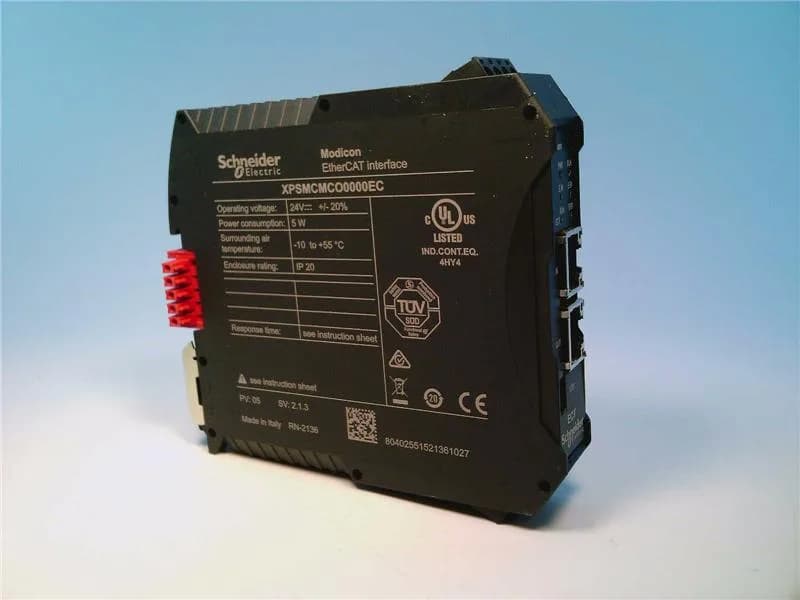

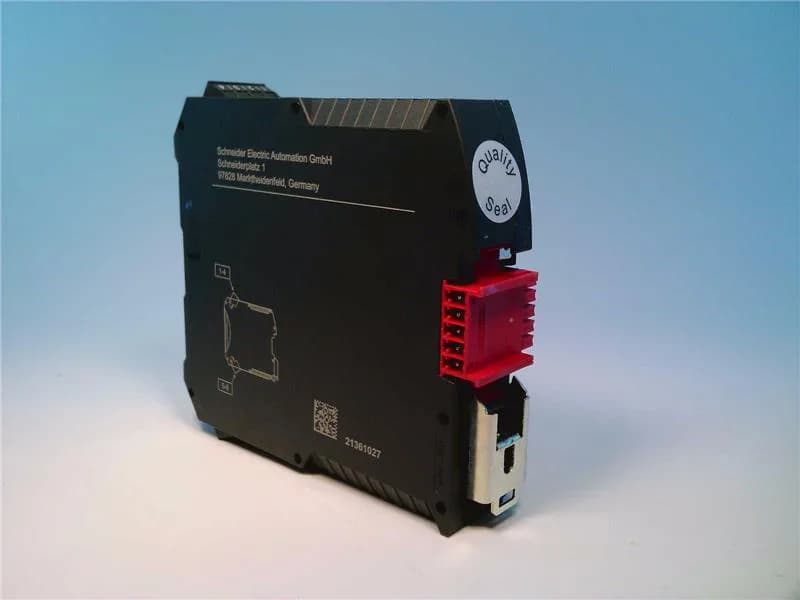

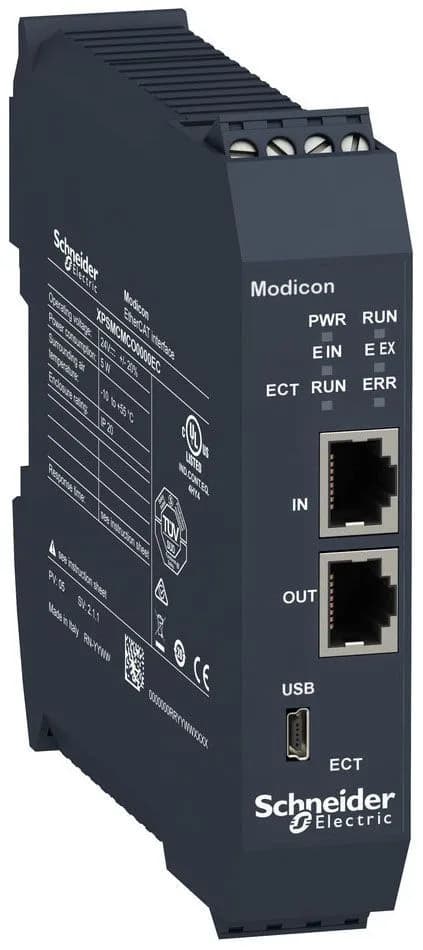

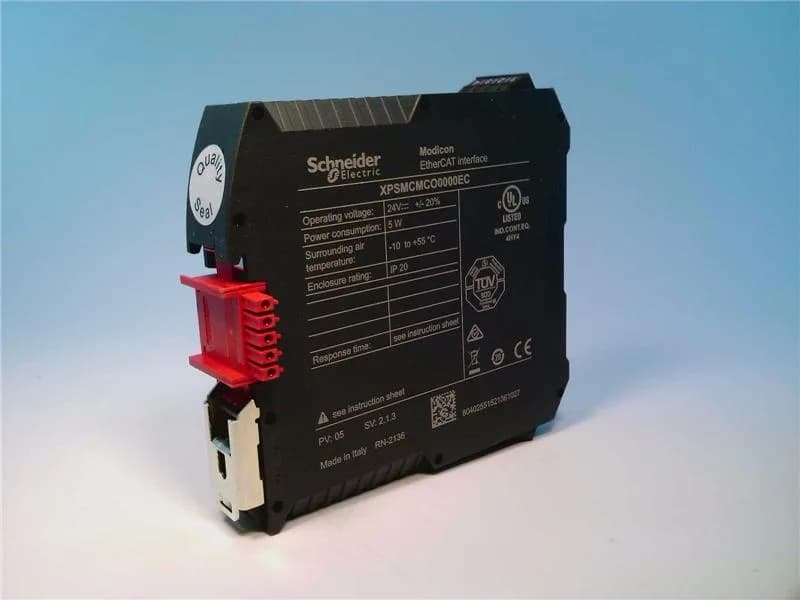

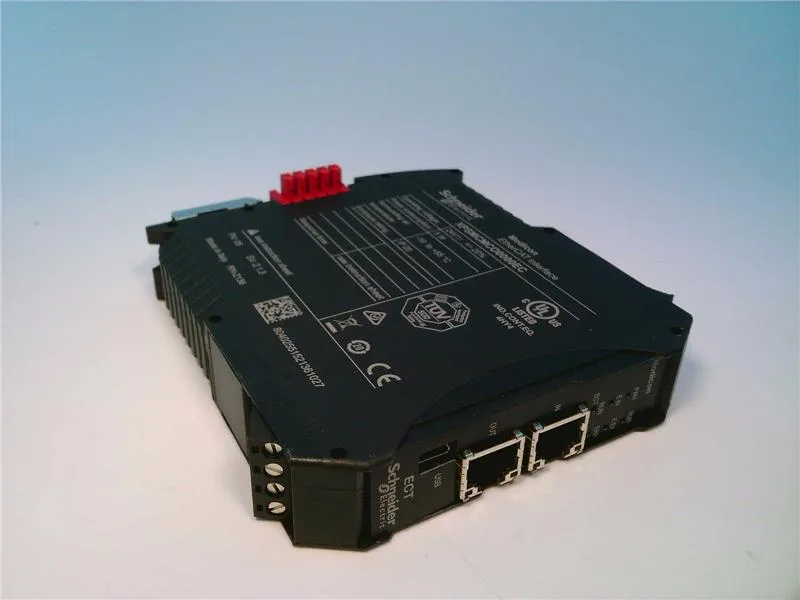

Schneider Electric XPSMCMCO0000EC
MPNXPSMCMCO0000EC
Obsolete
Square D XPSMCMCO0000EC Cmc Module|Square D XPSMCMCO0000EC Cmc Module
$215.90 – $453.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Connector type | RJ45 |
| Range of product | Modicon MCM |
| Product or component type | Non-safe communication module |
| Supply voltage | 24 V - 20...20 % DC |
| Current consumption | 0.125 mA |
| Power dissipation in | 3 W |
| IP degree of protection | IP20 |
| Communication port protocol | EtherCAT |
| Mounting support | Omega 35 mm DIN rail EN 50022 |
| Cable cross section | 0.0003...0.002 in² (0.2...1.5 mm²) - AWG 24...AWG 16 flexible without cable end 0.0003...0.004 in² (0.2...2.5 mm²) - AWG 24...AWG 14 flexible without cable end 0.0004...0.002 in² (0.25...1 mm²) - AWG 23...AWG 18 flexible with cable end, without bezel 0.0004...0.004 in² (0.25...2.5 mm²) - AWG 23...AWG 14 flexible with cable end, with bezel 0.0004...0.004 in² (0.25...2.5 mm²) - AWG 23...AWG 14 flexible with cable end, without bezel 0.0008...0.002 in² (0.5...1.5 mm²) - AWG 20...AWG 16 flexible with cable end, with double bezel 0.0003...0.002 in² (0.2...1 mm²) - AWG 24...AWG 18 solid without cable end 0.0003...0.004 in² (0.2...2.5 mm²) - AWG 24...AWG 14 solid without cable end |
| Connections - terminals | 2 captive screw clamp terminals, removable terminal block |
| Maximum cable distance between devices | 328.08 ft (100 m) |
All specifications
| Parameter | Value |
|---|---|
| Pollution degree | 2 |
| Shock resistance | 10 gn 16 ms) 1000 shocks on each axis IEC 61496-1 |
| Relative humidity | 10...95 % |
| Operating altitude | 6561.68 ft (2000 m) |
| Vibration resistance | +/-0.35 mm (f= 10...55 Hz) conforming to IEC 61496-1 |
| Depth | 4.5 in (114.5 mm) |
| Width | 0.9 in (22.5 mm) |
| Height | 3.9 in (99 mm) |
| Category | US1SAF222477 |
| Insulation | 250 V AC between power supply and housing IEC 61800-5-1 |
| Service life | 20 year(s) |
| Number of port | 2 |
| Quality labels | CE |
| Local signalling | LED green PWR power ON LED green RUN operating LED red E IN internal error LED red E EX external error LED green/red ERR communication error LED green/red STS operating |
| Method of access | Server |
| Device short name | XPSMCM |
| Transmission rate | 100 Mbit/s for full duplex |
| Overvoltage category | II |
| Electromagnetic compatibility | Electrostatic discharge immunity test - test level: 6 kV (on contact) conforming to IEC 61000-4-2 Electrostatic discharge immunity test - test level: 20 kV (on air) conforming to IEC 61000-4-2 Susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to IEC 61000-4-3 Susceptibility to electromagnetic fields - test level: 30 V/m (1.4 GHz...2 GHz) conforming to IEC 61000-4-3 |
| Ambient air temperature for storage | -4...185 °F (-20...85 °C) |
| Ambient air temperature for operation | 14...131 °F (-10...55 °C) |
MPN
XPSMCMCO0000EC
