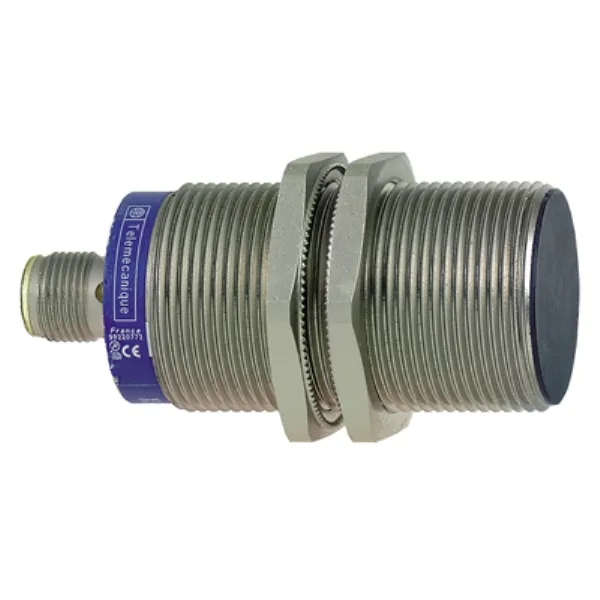

Schneider XS130BLPAM12 Prox Sensor
MPNXS130BLPAM12
TELEMECANIQUE SENSORS Inductive Cylindrical Proximity Sensor: Built-in Connector, Shielded, 3 Wires
$9.14Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Series | XS1 |
Sensing
| Parameter | Value |
|---|---|
| Sensing distance, max. (alt.) | 10 mm |
| Sensing method | Inductive |
| Sensing-face shielding | Shielded |
Electrical
| Parameter | Value |
|---|---|
| Supply voltage | Not Rated ; 12-24V DC |
| AC supply voltage rating | Not Rated |
| DC supply voltage rating | 12-24V DC |
| Number of wires | 3 |
| Electrical connection | M12 |
| Electrical installation type | Direct Connector |
Output
| Parameter | Value |
|---|---|
| Output circuit contact form | NO |
| Output circuit type | PNP |
| Includes indicator lights | Indicator Lights Included |
| Output circuit | PNP |
Mechanical
| Parameter | Value |
|---|---|
| Body style | Cylindrical |
| Overall height | 68 mm |
| Body material | Brass |
Environmental
| Parameter | Value |
|---|---|
| Operating temperature, max. (alt.) | 158 °F |
| Operating temperature, min. (alt.) | -13 °F |
| IP rating | IP67 |
Approvals
| Parameter | Value |
|---|---|
| Standards / certifications | CE; CSA; RoHS; UL Listed |
MPN
XS130BLPAM12
