Schneider Electric XS518BLPAL10 — Proximity Sensors

Telemecanique XS518BLPAL10 M18 Inductive Proximity, PNP, 5mm

MPNXS518BLPAL10

Telemecanique Sensors Series XS5, XS518BLPAL10, M18 threaded inductive proximity sensor, PNP normally open output, 5 mm sensing distance, shielded, 12-48 VDC, prewired 10 m cable, IP67/IP69K.

Schneider Electric XS518BLPAL10 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

XS518BLPAL10 — Identification
ParameterValue
SeriesXS5
XS518BLPAL10 — Sensing
ParameterValue
Sensing distance, max. (alt.)5 mm
Sensing methodInductive
Sensing-face shieldingShielded
XS518BLPAL10 — Electrical
ParameterValue
Supply voltageNot Rated ; 12-48V DC
AC supply voltage ratingNot Rated
DC supply voltage rating12-48V DC
Number of wires3
Electrical connectionBare Wire
Electrical installation typePrewired Cable
XS518BLPAL10 — Output
ParameterValue
Output circuit contact formNO
Output circuit typePNP
Includes indicator lightsIndicator Lights Included
Output circuitPNP
XS518BLPAL10 — Mechanical
ParameterValue
Body styleCylindrical
Overall height62 mm
Body materialBrass
XS518BLPAL10 — Environmental
ParameterValue
Operating temperature, max. (alt.)158 °F
Operating temperature, min. (alt.)-13 °F
IP ratingIP67; IP69K
XS518BLPAL10 — Approvals
ParameterValue
Standards / certificationsCE; CSA; RoHS; UL Listed

Product details

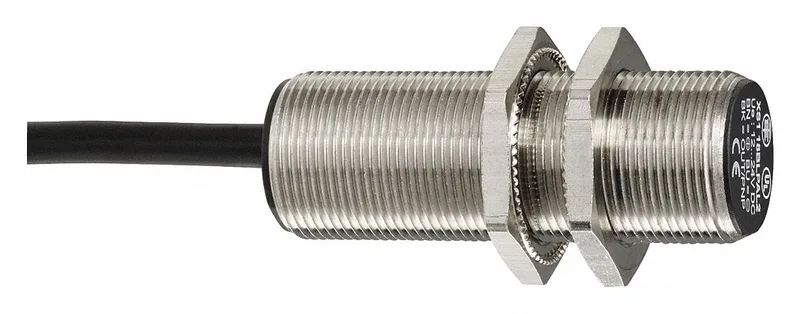

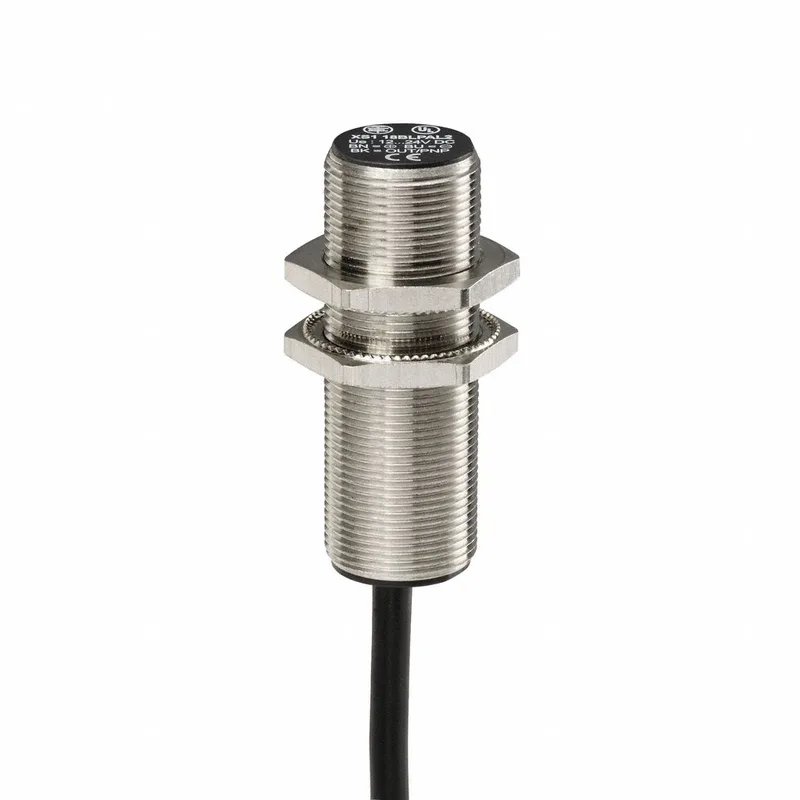

Telemecanique Sensors XS518BLPAL10 is an M18 threaded inductive proximity sensor from the Series XS5 family. Shielded body, PNP output – normally open. 5 mm sensing distance, rated for metal targets at close range. Prewired with 10 m cable, bare wire termination.

Key ratings

Operates on 12-48 VDC; pulls 200 mA max on the load. Shielded sensing face means the field projects forward — mounts flush in metal without derating the 5 mm range. IP67 and IP69K ratings handle washdown and high-pressure steam cleaning. Brass body, nickel plated, with overload, reverse polarity, and short circuit protection on the output.

Frequently asked questions

What is the series of the XS518BLPAL10?

It belongs to the Series XS5.

What protection features does the XS518BLPAL10 include?

Overload protection, reverse polarity protection, and short circuit protection are included on the output.

What compliance documentation is available for the XS518BLPAL10?

It carries CE, CSA, RoHS, and UL Listing certifications.

MPN
XS518BLPAL10
