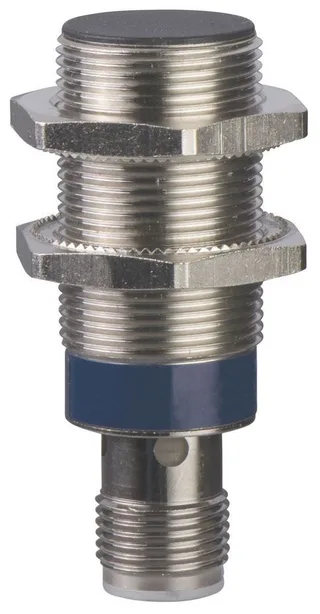

XS518BLPAM12
Schneider Electric
IP67 / IP69KXS54
Ref. price$16.51
Lead time on requestGet quote
Schneider Electric XS51 Series
18 variants · Schneider Electric
About the Schneider Electric XS51 Series
The Schneider Electric XS51 Series series groups 18 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Variants differ by IP rating, output circuit type and sensor diameter, so you can match the exact IP rating your application requires using the selection guide below.
Select a variant by
- IP rating
- IP67 / IP69K · IP68 / IP69K
- Output circuit type
- NPN · PNP
- Sensor diameter
- 12 mm · 18 mm
- Barrel diameter
- 12 MM · 18 MM
- Frequency
- 2000 Hz · 4000 HZ
- Sensing distance
- 2 MM · 5 MM
- Temp operating max
- 50 °C · 158 °C
- Temp operating min
- -25 °C · -13 °C
Variant comparison
| Parameter | XS518BLPAM12 | XS518BLNAL2 | XS512BLPAM12 | XS518BLPBM12 | XS512BSDAM12 | XS518BLNBM12 |
|---|---|---|---|---|---|---|
| IP rating | IP67 / IP69K | IP68 / IP69K | IP67 / IP69K | — | — | IP67 / IP69K |
| Output circuit type | PNP | NPN | PNP | — | — | NPN |
| Sensor diameter | — | — | 12 mm | — | — | 18 mm |
| Barrel diameter | — | — | — | 18 MM | 12 MM | — |
| Frequency | — | — | — | 2000 Hz | 4000 HZ | — |
| Sensing distance | — | — | — | 5 MM | 2 MM | — |
| Temp operating max | — | — | — | 50 °C | 158 °C | — |
| Temp operating min | — | — | — | -25 °C | -13 °C | — |
Request a quote on any Schneider Electric XS51 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
