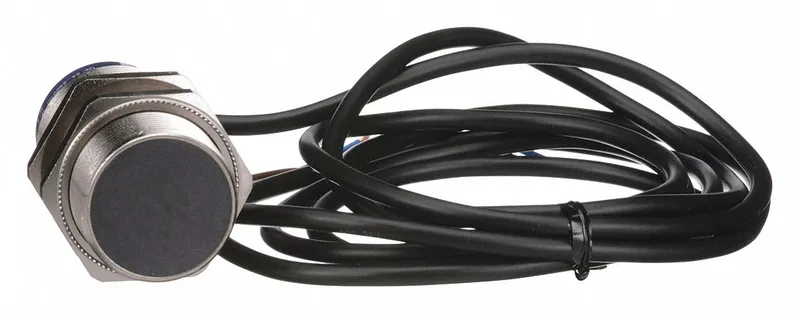

The Telemecanique XS630B1MAL10 is a shielded M30 inductive proximity sensor from the XS6 series, rated IP68 and IP69K for washdown environments. Its 2-wire AC/DC output operates from 24 V to 240 V AC or DC, delivering a normally-open contact rated up to 300 mA. The prewired 10 m cable and bare-wire termination simplify installation into terminal blocks or junction boxes. Typical applications include position detection on automated packaging, conveying, and machine-tool lines.
The 2-wire AC/DC output eliminates the need for separate supply polarity, making this sensor drop-in compatible with both AC relay logic and DC PLC inputs. The built-in indicator lamp confirms target detection without a handheld test device. Shielded sensing limits the minimum detection range to 8 mm and maximum to 15 mm, so account for the 8 mm standoff when mounting flush in metal.
M30 threaded barrel, shielded sensing face – no derating when mounted flush in steel. Sensing range 8 mm (minimum) to 15 mm (maximum) depending on target material. The 10 m prewired cable allows distributed sensor placement without an intermediate junction box. Operating temperature -13 °F to 158 °F covers typical factory floor conditions without forced cooling.
