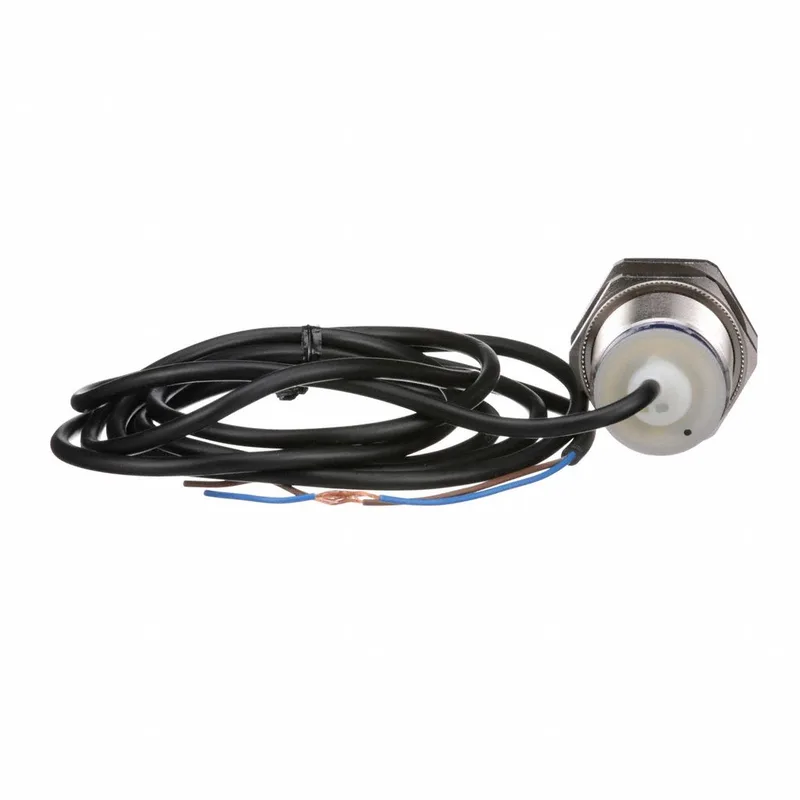

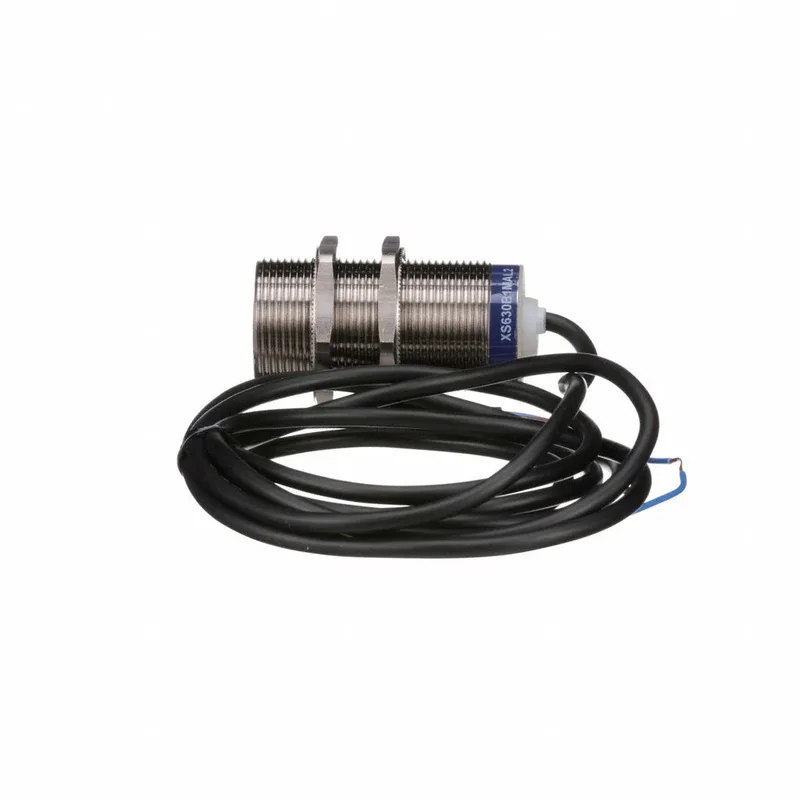

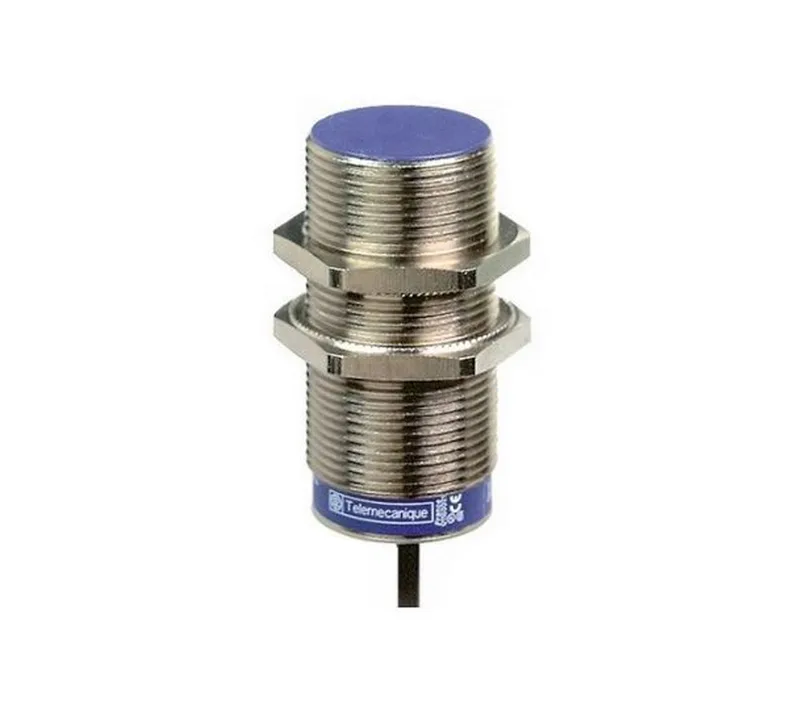

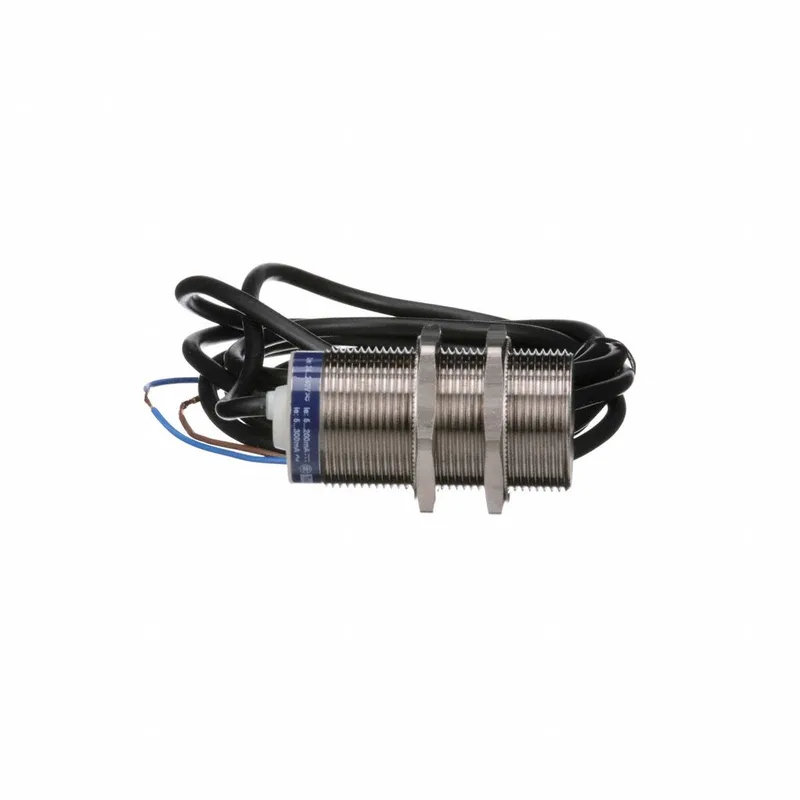

The Telemecanique XS630B1MAL2 is a cylindrical inductive proximity sensor from the XS6 series, built for detecting metal targets without contact. It's a shielded M30 threaded body with a 15 mm maximum sensing distance — that's the standard range for an M30 shielded sensor, meaning it can be flush-mounted into a metal bracket or panel without needing a non-metallic standoff. The 2-wire AC/DC circuit works across 24-240 V AC or DC, so it drops straight into existing control voltage schemes without a separate power supply.
Washdown and environment — IP68/IP69K matters
This sensor carries an IP68 and IP69K ingress rating, plus a NEMA 4X enclosure rating. IP68 means it can be submerged continuously under specified pressure; IP69K means it withstands high-pressure, high-temperature washdown sprays — the kind you see on food, beverage, or pharmaceutical lines. The brass body with nickel-plated finish resists corrosion, and the 2-meter prewired cable is sealed at the sensor end. If your line sees caustic washdown cycles or high-pressure cleaning, this sensor holds up without needing an external protective boot.
