Schneider Electric XS630B4PAM12 — Proximity Sensors

XS630B4PAM12 Inductive Proximity Sensor M30 PNP 40mm, Curren

MPNXS630B4PAM12

Telemecanique Sensors XS6 Series, M30 Threaded Inductive Proximity Sensor, 3-Wire PNP NO, 12-48V DC, 40mm Range, IP67/IP69K, M12 Connector.

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

XS630B4PAM12 — Identification
ParameterValue
SeriesXS6
XS630B4PAM12 — Sensing
ParameterValue
Sensing distance, max. (alt.)40 mm
Sensing methodInductive
XS630B4PAM12 — Electrical
ParameterValue
Supply voltageNot Rated ; 12-48V DC
AC supply voltage ratingNot Rated
DC supply voltage rating12-48V DC
Number of wires3
Electrical connectionM12
Electrical installation typeDirect Connector
XS630B4PAM12 — Output
ParameterValue
Output circuit contact formNO
Output circuit typePNP
Includes indicator lightsIndicator Lights Included
Output circuitPNP
XS630B4PAM12 — Mechanical
ParameterValue
Body styleCylindrical
Overall height74 mm
Body materialBrass
XS630B4PAM12 — Environmental
ParameterValue
Operating temperature, max. (alt.)158 °F
Operating temperature, min. (alt.)-13 °F
IP ratingIP67; IP69K
XS630B4PAM12 — Approvals
ParameterValue
Standards / certificationsCE; CSA; E2; UL Listed

Product details

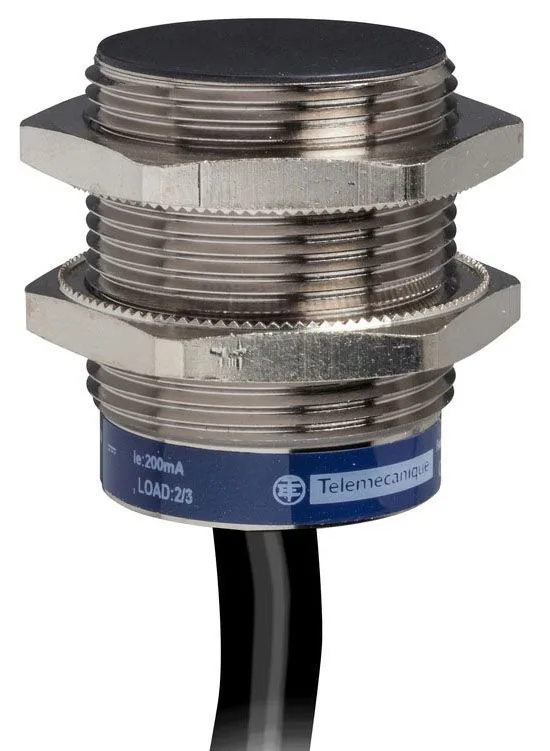

The XS630B4PAM12: M30 threaded cylindrical proximity sensor, 40 mm max sensing distance, PNP normally open output. Runs on 12-48V DC, three wires out via a built-in M12 connector. Nickel-plated brass barrel, IP67 and IP69K rated — survives hot-pressure washdown cycles. Overload, reverse polarity, and short circuit protection are all onboard; LED indicator shows switching state. UL listed, CE, CSA.

Mounting & Installation

Cylindrical body, 36 mm diameter, M30 thread. Overall height 74 mm. Direct connector (no cable); 4-pin M12 male. Operating ambient -13 to +158 °F. Sensing range adjustable from 15 to 40 mm. Use a standard M30 mounting clamp or through-hole. The nickel-plated brass resists corrosion in damp environments.

Frequently asked questions

What is the XS630B4PAM12's series?

It belongs to the XS6 series of cylindrical inductive proximity sensors from Telemecanique Sensors.

What protection features does this sensor include?

Overload protection, reverse polarity protection, and short circuit protection are built in.

What compliance certifications does it carry?

CE, CSA, and UL Listed are indicated in the specifications.

MPN
XS630B4PAM12
