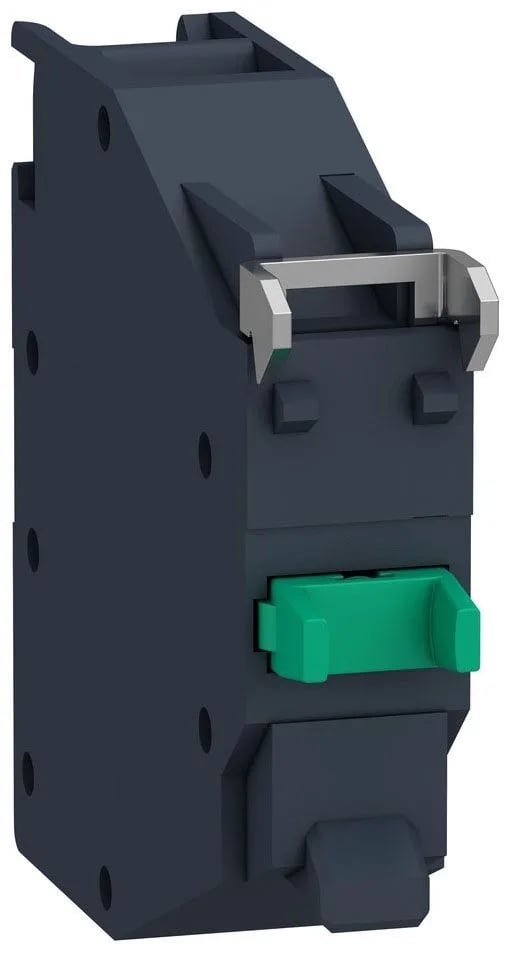

Schneider Electric ZBE101GEX
MPNZBE101GEX
Active
CONTACT BLOCK HARMONY XB4 EXPLOSIVE ATMOSPHERE NO|CONTACT BLOCK HARMONY XB4 EXPLOSIVE ATMOSPHERE NO
$27.94 – $45.69Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Range of product | Harmony XB4 |
| Contact block type | Single |
| Product or component type | Contact block |
| Contacts type and composition | 1 NO |
| Voltage | 415 V |
| [Ie] rated operational current | 1.9 A 380 V, AC, A600 IEC 60947-5-1 3 A 240 V, AC, A600 IEC 60947-5-1 6 A 120 V, AC, A600 IEC 60947-5-1 0.27 A 250 V, DC, Q300 IEC 60947-5-1 0.55 A 125 V, DC, Q300 IEC 60947-5-1 2.87 A 24 V, DC, Q300 IEC 60947-5-1 |
| [Ith] conventional free air thermal current | 10 A IEC 60947-5-1 |
| Mounting of block | Front mounting |
| Connections - terminals | Screw clamp terminals, 2 x 1.5 mm² without cable end Screw clamp terminals, 1 x 2.5 mm² with cable end |
| CAD overall depth | 1.7 in (42.4 mm) |
| CAD overall width | 1.5 in (38 mm) |
| CAD overall height | 0.4 in (10 mm) |
All specifications
| Parameter | Value |
|---|---|
| Mechanical durability | 1000000 cycles |
| Standards | EN/IEC 60079-7 EN/IEC 60079-0 EN/IEC 60079-1 EN/IEC 60079-31 UL 60079-31 UL 60079-0 CSA C22.2 No 213 UL 60079-1 ANSI/ISA 12.12.01 |
| Marking | Ex db eb IIC Gb |
| Category | US10CS222465 |
| Contacts usage | Gas protected contact |
| Operating force | 3.962 N |
| Operating travel | 0.065 in (1.657 mm) engagement point) 0.182 in (4.622 mm) changing state point) 0.175 in (4.452 mm) total travel) |
| Positive opening | Without |
| Contact operation | Standard |
| Device short name | ZBE |
| Tightening torque | 7.08...10.6 lbf.in (0.8...1.2 N.m) IEC 60947-1 |
| Protective treatment | TH |
| Environmental characteristic | Hazardous location class I division 2 |
| Sale per indivisible quantity | 1 |
| Ambient air temperature for storage | -58...158 °F (-50...70 °C) |
| Ambient air temperature for operation | -58...167 °F (-50...75 °C) |
MPN
ZBE101GEX
