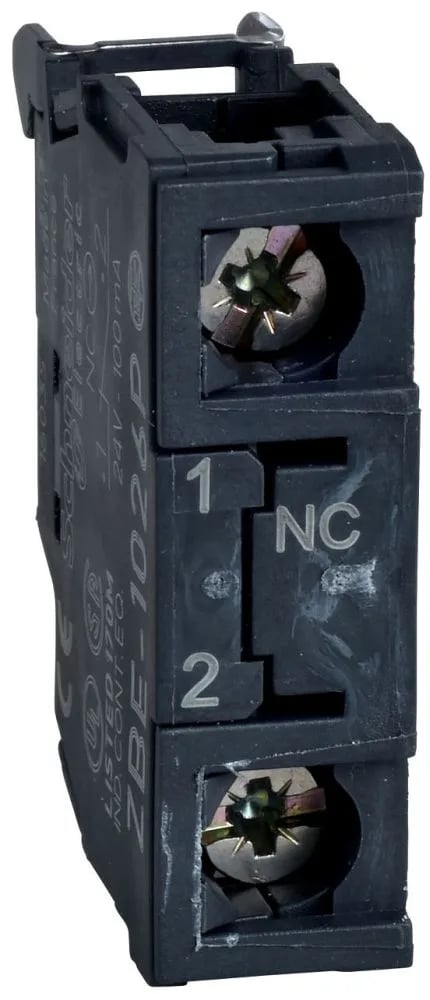

Schneider Electric ZBE1026

Schneider Electric ZBE1026

MPNZBE1026
Active

Single contact block, Harmony XB4, silver alloy, gold flashed, screw clamp terminal, 1NC|Single contact block, Harmony XB4, silver alloy, gold flashed, screw clamp terminal, 1NC

$7.40Ref. price · indicative, final on quote
Schneider Electric ZBE1026 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

ZBE1026 key specifications
ParameterValue
Range of productHarmony XB4 Harmony XB5
Contact block typeSingle
Product or component typeContact block
Contacts type and composition1 NC
Voltage600 V 3)IEC 60947-1
[Uimp] rated impulse withstand voltage6 kV IEC 60947-1
Short-circuit protection10 A cartridge fuse gG IEC 60947-5-1
[Ie] rated operational current3 A 240 V, AC-15, A600 IEC 60947-5-1 6 A 120 V, AC-15, A600 IEC 60947-5-1 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
[Ith] conventional free air thermal current10 A IEC 60947-5-1
IP degree of protectionIP20 IEC 60529
Mounting of blockFront mounting
Connections - terminalsScrew clamp terminals, Screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1

All specifications

ZBE1026 additional specifications
ParameterValue
Shock resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Vibration resistance5 gn (f= 2...500 Hz) conforming to IEC 60068-2-6
Contacts materialGold flashed (Ag/Ni/Au) contacts
Electrical durability1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
Mechanical durability10000000 cycles
StandardsIEC 60947-5-4 IEC 60947-5-1 UL 508 JIS C8201-5-1 CSA C22.2 No 14 IEC 60947-1 JIS C8201-1
CategoryUS10CS222469
Contacts usageLow power switching contacts
Operating force2 N NC changing electrical state
Operating travel0.06 in (1.5 mm) NC changing electrical state) 0.2 in (4.3 mm) total travel)
Positive openingWith IEC 60947-5-1 appendix K
Contact operationSlow-break
Device short nameZBE
Tightening torque7.08...10.6 lbf.in (0.8...1.2 N.m) IEC 60947-1
Shape of screw headCross pozidriv No 1 Slotted flat Ø 4 mm Slotted flat Ø 5.5 mm
Protective treatmentTH
Electrical composition codeC1 9) C2 7) C3 6) C4 4) C5 5) C6 3) C7 4) C8 2) C9 3) C12 6) M1 6) M2 4) M3 4) M5 2) M6 2) M7 6) M8 4) M9 2) SF1 3) SF2 2) MF1 2) MF2 2) C10 2) M4 2) C13 1)
Sale per indivisible quantity5
Ambient air temperature for storage-40...158 °F (-40...70 °C)
Ambient air temperature for operation-40...158 °F (-40...70 °C)
MPN
ZBE1026
