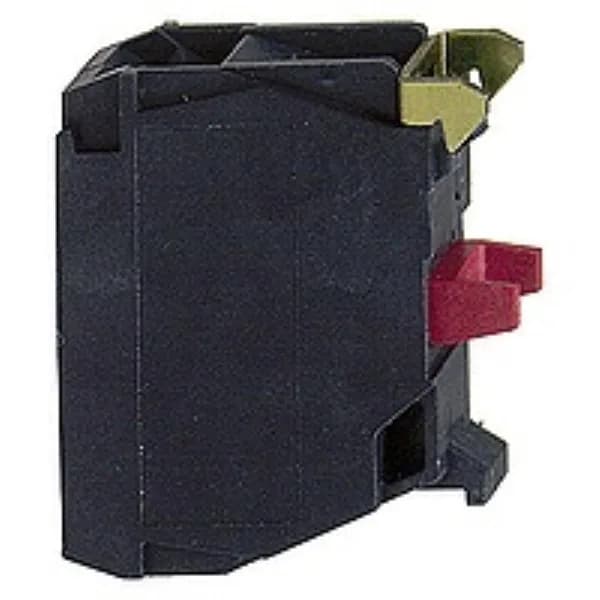

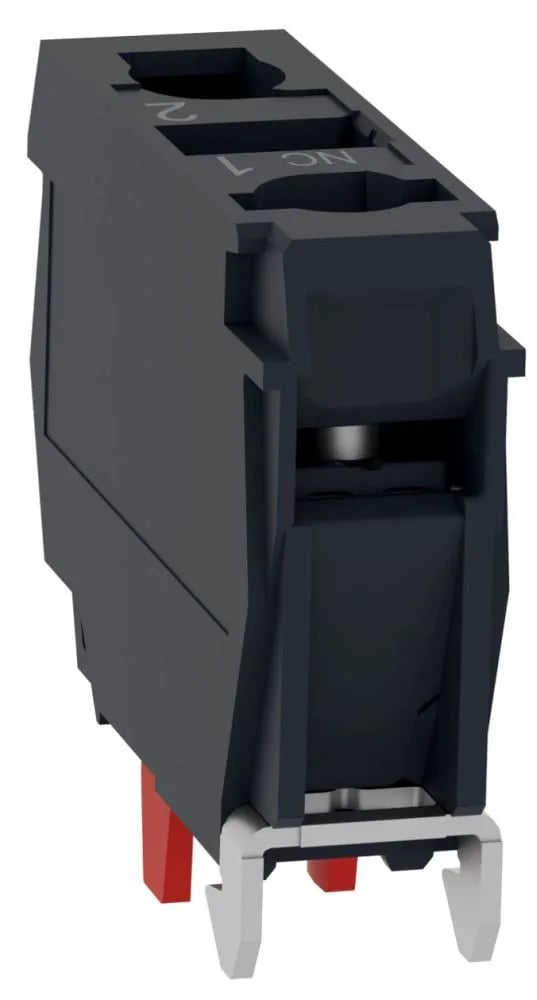

Schneider Electric ZBE1029
MPNZBE1029
Active
1 N/C CONT FOR RING|SQD ZBE1029 1 N/C CONT FOR RING
$2.54Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Range of product | Harmony XB4 Harmony XB5 |
| Contact block type | Single |
| Product or component type | Contact block |
| Contacts type and composition | 1 NC |
| IP degree of protection | IP20 IEC 60529 |
| Mounting of block | Front mounting |
| Connections - terminals | Screw terminals for lug |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Vibration resistance | 5 gn (f= 2...500 Hz) conforming to IEC 60068-2-6 |
| Contacts material | Silver alloy (Ag/Ni) |
| Mechanical durability | 10000000 cycles |
| Standards | JIS C8201-5-1 IEC 60947-5-4 UL 508 IEC 60947-5-1 CSA C22.2 No 14 IEC 60947-1 JIS C8201-1 |
All specifications
| Parameter | Value |
|---|---|
| Category | US10CS222469 |
| Contacts usage | Standard contacts |
| Operating force | 2 N NC changing electrical state |
| Operating travel | 0.06 in (1.5 mm) NC changing electrical state) 0.2 in (4.3 mm) total travel) |
| Positive opening | With IEC 60947-5-1 appendix K |
| Contact operation | Slow-break |
| Device short name | ZBE |
| Protective treatment | TH |
| Electrical composition code | C1 9) C2 7) C3 6) C4 4) C5 5) C6 3) C7 4) C8 2) C9 3) C12 6) M1 6) M2 4) M3 4) M5 2) M6 2) M7 6) M8 4) M9 2) SF1 3) SF2 2) MF1 2) MF2 2) C10 2) M4 2) C13 1) |
| Sale per indivisible quantity | 5 |
| Ambient air temperature for storage | -40...158 °F (-40...70 °C) |
| Ambient air temperature for operation | -40...158 °F (-40...70 °C) |
MPN
ZBE1029
